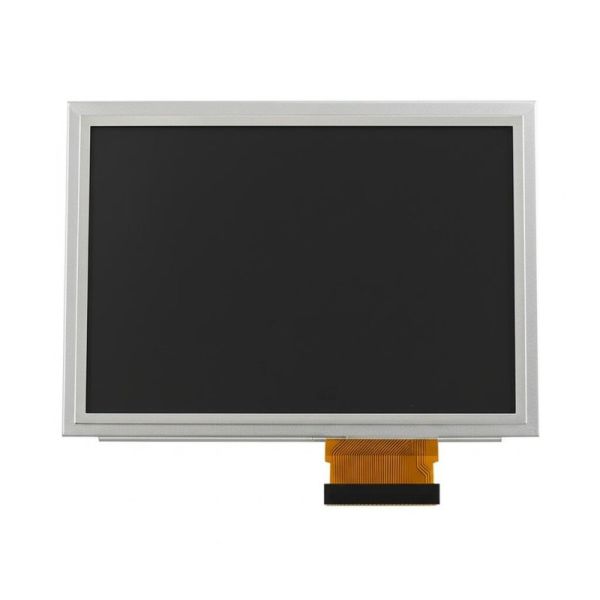

3.5 Inch 480x234 Resolution 250 cd/m² Brightness Industrial LCD Display Monitor for Digital Video Camera
3.5 Inch 480x234 Resolution 250 cd/m² Brightness Industrial LCD Display Monitor for Digital Video Camera
3.5 Inch 480x234 Resolution 250 cd/m² Brightness Industrial LCD Display Monitor for Digital Video Camera
3.5 Inch 480x234 Resolution 250 cd/m² Brightness Industrial LCD Display Monitor for Digital Video Camera
3.5 Inch 480x234 Resolution 250 cd/m² Brightness Industrial LCD Display Monitor for Digital Video Camera
3.5 Inch 480x234 Resolution 250 cd/m² Brightness Industrial LCD Display Monitor for Digital Video Camera
3.5 Inch 480x234 Resolution 250 cd/m² Brightness Industrial LCD Display Monitor for Digital Video Camera
3.5 Inch 480x234 Resolution 250 cd/m² Brightness Industrial LCD Display Monitor for Digital Video Camera
Specifications
Brand Name :
auo
Model Number :
A035CN01 V0
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
480*234
style :
24PIN IPS
brightness :
250 CD/M2
color :
16.7M
contrast ratio :
150 :1
Description

  • Manufacturer

    AU Optronics

    Model Name

    A035CN01

    Screen Size

    3.5 inch

    Screen Type

    LCM , a-Si TFT-LCD

    Pixel Number

    480×234

    Arrangement

    RGB Delta

    Active Area(mm)

    72 × 50.544 (H×V)

    Outline(mm)

    82.8 × 60 (H×V×D)

    Bezel Area(mm)

    74.51 × 53.15 (H×V)

    Treatment

    -

    Luminance

    250 cd/m² (Typ.)

    Contrast Ratio

    150 : 1 (Typ.) (TM)

    Viewing Angle

    45/45/10/30 (Typ.)(CR≥10)

    Response

    20/30 (Typ.)(Tr/Td) ms

    Good View at

    6 o'clock

    Work Mode

    TN, Normally White, Transmissive

    Color Depth

    Backlight

    1 pcs CCFL , No Driver

    Mass

    -

    Used for

    3.5 Inch 480x234 Resolution 250 cd/m² Brightness Industrial LCD Display Monitor for Digital Video Camera 3.5 Inch 480x234 Resolution 250 cd/m² Brightness Industrial LCD Display Monitor for Digital Video Camera

    Refresh Rate

    -

    Touchscreen

    Without

    Signal Type

    TFT Specific Analog RGB , FPC , 24 pins

    Voltage Supply

    5/5/15/-9.5V (Typ.)(VCCC/AVDD/VGH/VGL)

    Max. Ratings

    Storage Temp.: -25 ~ 80 °C Operating Temp.: 0 ~ 60 °C

3.5 Inch 480x234 Resolution 250 cd/m² Brightness Industrial LCD Display Monitor for Digital Video Camera

All Origianl product will be send to customer after full test one by one.

  • Spec details can be send to you via email,please contact us.
