BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
Specifications
Brand Name :
BOE
Model Number :
DV122FBM-N00
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
16.7M colors
model :
WLED
style :
wide screen high resolution 880*1080PIXELS
brightness :
200cd
connector :
30PIN
contrast ratio :
600:1
working time :
30k hours
input voltage :
5.0 V
Description
880*1080 114PPI 30pin 250cd/m² Digital Signage LCD Screen DV122FBM-N00
BOE 12.2-inch Digital Signage LCD Screen DV122FBM-N00 - 880(RGB)*1080 pixels, 114PPI, 30-pin interface, 250 cd/m² typical brightness.
BOE Technology Group Co., Ltd. DV122FBM-N00 is a 12.2-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. This portrait-oriented display features matte surface treatment and operates within 0~50°C with storage temperature range of -20~60°C. Ideal for digital signage applications, this model entered mass production in Q3 2018 and remains in current production.
Key Specifications
Parameter Specification
Brand BOE
Diagonal Size 12.2 inch
Pixel Format 880(RGB)*1080, 114PPI
Active Area 199.32(H)*237.6(V) mm
Bezel Area 203.3(H)*241.1(V) mm
Luminance 250 cd/m² (Typ.)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Color Support 16.7M, 72% NTSC
Frame Rate 60Hz
Display Characteristics
Feature Description
Model DV122FBM-N00
Type a-Si TFT-LCD, LCM
Configuration RGB Vertical Stripe
Outline Dimensions 215.32(H)*257.6(V) mm
Surface Treatment Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio 1000:1 (Typ.)
Response Time 14ms (Typ.)(G to G)
Operating Mode HADS, Normally Black, Transmissive
Light Source WLED, 30K hours, With LED Driver
Touch Panel Without
Interface & Environmental Specifications
  • Interface Type: eDP (1 Lane) 30-pin Connector
  • Power Supply: 5.0V (Typ.)
  • Operating Temperature: 0 ~ 50°C
  • Storage Temperature: -20 ~ 60°C

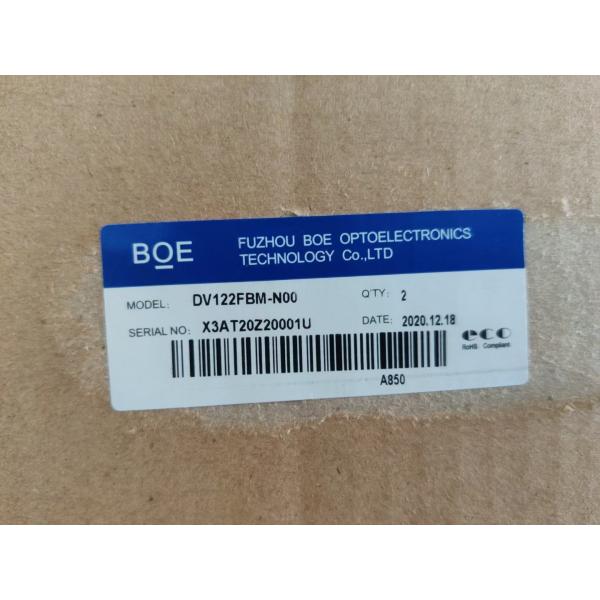

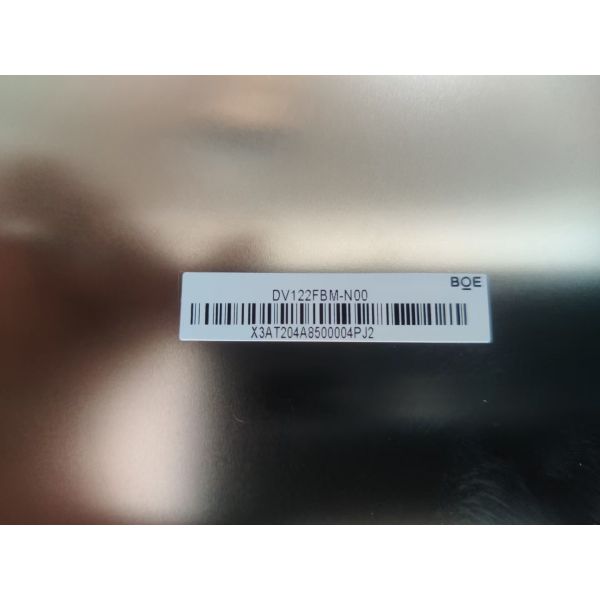

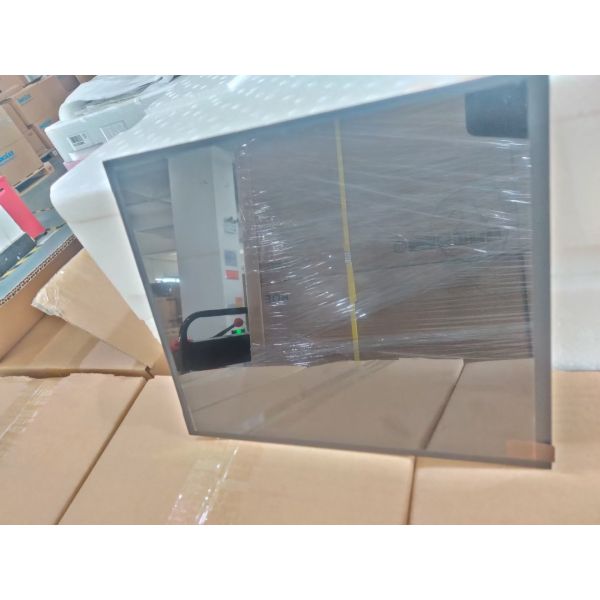

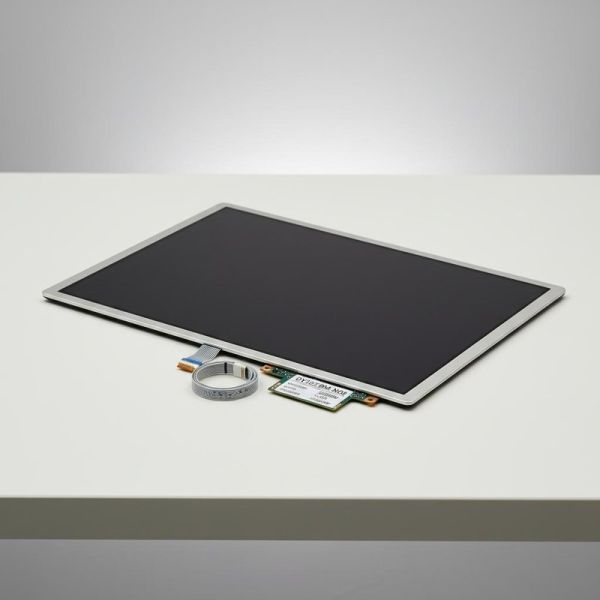

Product Images
BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
