Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface
Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface
Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface
Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface
Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface
Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface
Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface
Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface
Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface
Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface
Specifications
Brand Name :
innolux
Model Number :
M215HCA-L3B
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
brightnerss :
250CD/M2
Connector :
50PIN
Color :
16.7M
Contrast ratio :
1000:1
working life :
30K hours
touch panel :
without
resolution :
1920*1080pixels
Voltage supply :
5.0V
signal type :
LVDS
Description
Innolux 21.5-inch 1920*1080 50-pin Desktop LCD Monitor
21.5-inch Full HD (1920*1080) desktop LCD monitor panel with 250 cd/m² brightness, 1000:1 contrast ratio, and LVDS interface. Features 16.7 million colors, 72% NTSC color gamut, and 3-side borderless design.
Product Overview

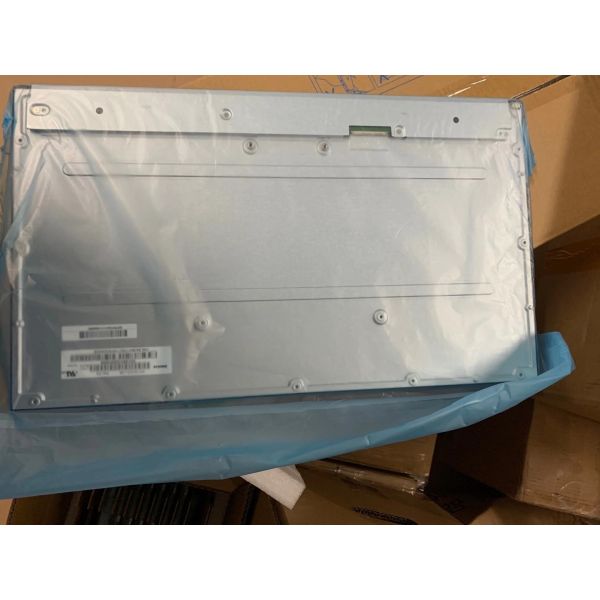

The Innolux M215HCA-L3B is a 21.5-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. This industrial-grade monitor features a matte finish with anti-glare treatment and hard coating (3H). Designed for desktop monitor applications with TCO 6.0 compliance.
Key Features
  • 21.5-inch Full HD display (1920*1080 resolution)
  • 3-side borderless design for seamless integration
  • 250 cd/m² typical luminance
  • 1000:1 contrast ratio
  • 16.7 million colors with 72% NTSC color gamut
  • LVDS interface with 30-pin connector
  • Matte anti-glare surface treatment
  • WLED backlight with 30,000-hour lifespan
Technical Specifications
Manufacturer Innolux Model Name M215HCA-L3B
Screen Size 21.5 inch Screen Type LCM, a-Si TFT-LCD
Resolution 1920*1080 (FHD) Pixel Density 102 PPI
Active Area 476.064 * 267.786 mm (H*V) Outline Dimensions 484.5 * 284.4 * 13.2 mm (H*V*D)
Brightness 250 cd/m² (Typical) Contrast Ratio 1000:1 (Typical)
Viewing Angle 89/89/89/89 (CR≥10) Response Time 8/7 ms (Tr/Td)
Color Depth 16.7 Million Colors Backlight 4 strings WLED, 30K hours
Refresh Rate 60Hz Signal Type LVDS (2 ch, 8-bit), 30-pin connector
Operating Voltage 5.0V (Typical) Weight 1.82±0.18 kg
Operating Temperature 0°C to 50°C Storage Temperature -20°C to 60°C
Product Images
Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface Innolux 21.5inch 1920×1080 FHD Desktop LCD Monitor with 250cd/m2 Brightness and 50pin LVDS Interface
