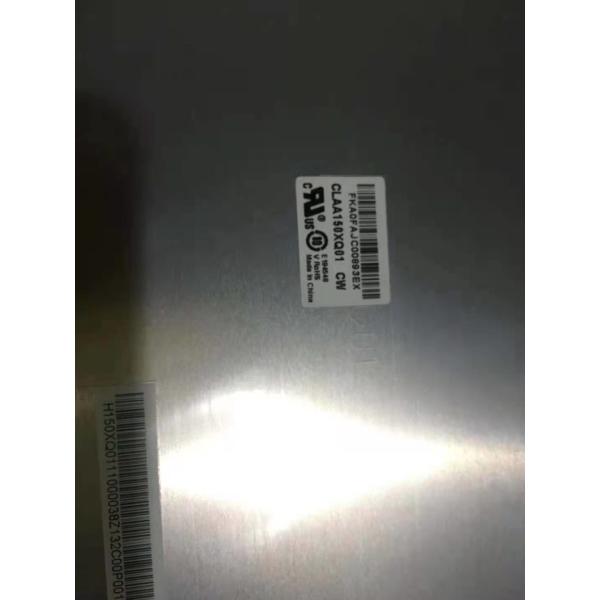

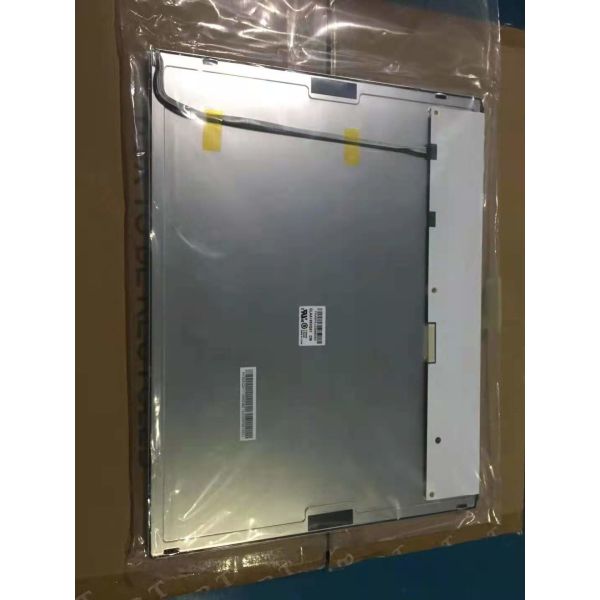

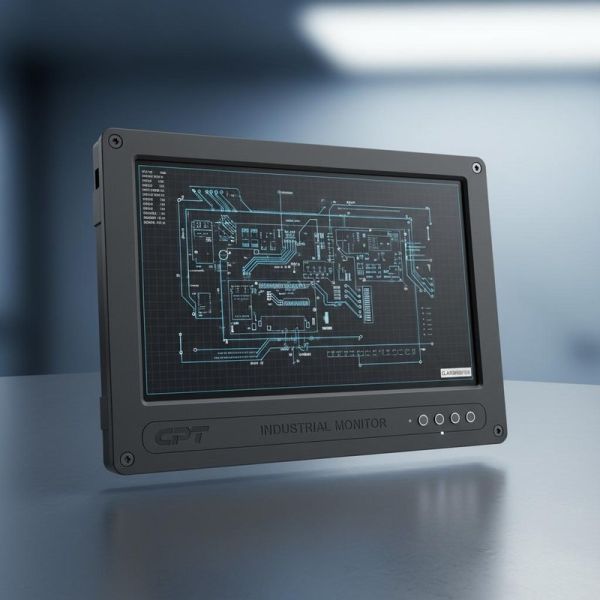

CPT 15in Industrial LCD Monitor with 450 cd/m² Brightness 1024×768 XGA Resolution and 70K Hours Working Life
CPT 15in Industrial LCD Monitor with 450 cd/m² Brightness 1024×768 XGA Resolution and 70K Hours Working Life
CPT 15in Industrial LCD Monitor with 450 cd/m² Brightness 1024×768 XGA Resolution and 70K Hours Working Life
CPT 15in Industrial LCD Monitor with 450 cd/m² Brightness 1024×768 XGA Resolution and 70K Hours Working Life
CPT 15in Industrial LCD Monitor with 450 cd/m² Brightness 1024×768 XGA Resolution and 70K Hours Working Life
CPT 15in Industrial LCD Monitor with 450 cd/m² Brightness 1024×768 XGA Resolution and 70K Hours Working Life
CPT 15in Industrial LCD Monitor with 450 cd/m² Brightness 1024×768 XGA Resolution and 70K Hours Working Life
CPT 15in Industrial LCD Monitor with 450 cd/m² Brightness 1024×768 XGA Resolution and 70K Hours Working Life
Specifications
Brand Name :
cpt
Model Number :
CLAA150XQ01CW
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
1.07B colors
model :
WLED
style :
wide screen high resolution 1024*768PIXELS
brightness :
450cd
connector :
20PIN
contrast ratio :
700:1
working time :
70k hours
input voltage :
3.3 V
Signal type :
LVDS
Description
CPT 15in 85PPI 450Cd/M² Industrial LCD Monitor CLAA150XQ01CW
CPT 15-inch CLAA150XQ01CW industrial LCD monitor featuring 1024(RGB)*768 XGA resolution, 85PPI, 450 cd/m² brightness, LVDS interface, and 70,000-hour working life.
Display Specifications
Panel Brand CPT Panel Model CLAA150XQ01CW
Panel Size 15.0" Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)*768, XGA, 85PPI Pixel Format RGB Vertical Stripe
Display Area 304.128(W)*228.096(H) mm Bezel Opening 307.4(W)*231.3(H) mm
Outline Size 326.5(W)*253.5(H)*11.5(D) mm Surface Hard coating (3H)
Brightness 450 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 80/80/70/70 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock Response Time 10/15 (Typ.)(Tr/Td)
Display Colors 16.7M 63% NTSC Lamp Type 8S2P WLED, 70K hours, With LED Driver
Frequency 60Hz Touch Screen Without
Weight 870g (Typ.) Application Industrial
Interface & Environmental Specifications
Signal Interface LVDS (1 ch, 8-bit), 20 pins Connector
Input Voltage 3.3V (Typ.)
Operating Temperature -30 ~ 80 °C
Storage Temperature -30 ~ 80 °C
Key Features
  • Wide operating temperature range (-30°C to 80°C)
  • WLED backlight system with 70,000-hour lifespan
  • Integrated LED driver included
  • Hard coating surface (3H hardness)
  • High brightness 450 cd/m² display
  • Industrial-grade construction and reliability
CPT 15in Industrial LCD Monitor with 450 cd/m² Brightness 1024×768 XGA Resolution and 70K Hours Working Life
Important Note: This model entered mass production in Q2 2015 and is now discontinued. The information provided is for reference only. For integration into future products, we strongly recommend contacting CPT or their authorized agents for the latest production status and detailed specifications.
