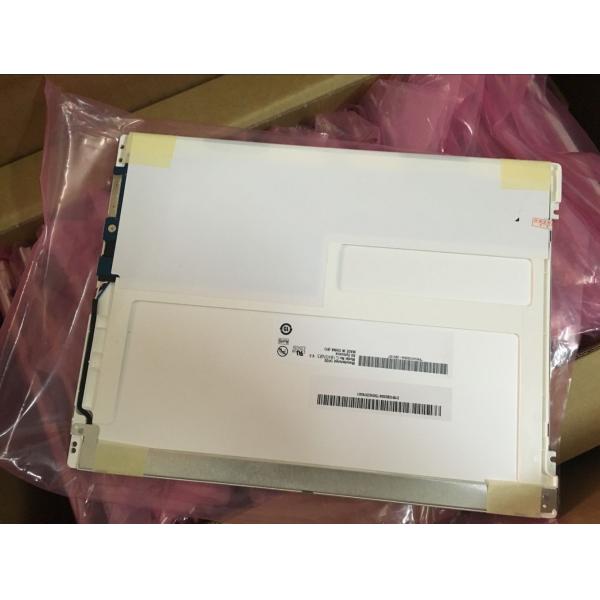

AUO 10.4inch industrial lcd panel 800(RGB)×600 [SVGA] 96PPI 400cd/m2 700:1 contrast ratio 20Pin 262k colors

AU Optronics Corp. (hereafter called AUO) G104STN01.0 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: Wide Temperature, WLED Backlight, Life ≥ 70K hours, With LED Driver, 180° Reverse, 6/8 bit, Matte . Based on its features, Einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q1, 2014, Now this model is in production. We inputted this model's specification on Oct 16 2013 for the first time, and the latest update on Apr 8 2020. If you want to embed G104STN01.0 LCM in your future product, Einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The G104STN01.0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand

AUO

Model

G104STN01.0

Diagonal Size

10.4 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

800(RGB)×600 [SVGA] 96PPI

Configuration

RGB Vertical Stripe

Active Area

211.2(H)×158.4(V) mm

Outline Dim.

243(H)×184(V) ×7(D) mm

Bezel Area

214.8(H)×162.7(V) mm

Treatment

Antiglare, Hard coating (3H)

Luminance

400 cd/m² (Typ.)

Contrast Ratio

700:1 (Typ.) (TM)

View Direction

-

Response Time

10/5 (Typ.)(Tr/Td)

Viewing Angle

80/80/60/70 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

262K/16.2M 50% NTSC

Light Source

WLED [7S2P] , 70K hours , With LED Driver

Weight

365g (Typ.)

Designed For

Frame Rate

60Hz

Touch Panel

Without

Interface Type

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Power Supply

3.3V (Typ.)

Environment

Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
