AUO 13.3 1920X1080 400cd/m² Industrial Lcd Screen G133HAN01.0
AUO 13.3 1920X1080 400cd/m² Industrial Lcd Screen G133HAN01.0
AUO 13.3 1920X1080 400cd/m² Industrial Lcd Screen G133HAN01.0
AUO 13.3 1920X1080 400cd/m² Industrial Lcd Screen G133HAN01.0
AUO 13.3 1920X1080 400cd/m² Industrial Lcd Screen G133HAN01.0
AUO 13.3 1920X1080 400cd/m² Industrial Lcd Screen G133HAN01.0
Specifications
Brand Name :
AUO
Model Number :
G133HAN01.0
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W, Western Union, MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1920*1080pixels
style :
30PIN IPS
brightness :
400 CD/M2
color :
16.7M
contrast ratio :
800 :1
working life :
50K Hours
Description
Panel Brand
Panel Size
Resolution
Display Area
Outline Size
Brightness
Viewing Angle
Best View on
Display Colors
Frequency
Weight
AUO
13.3"
1920(RGB)×1080, FHD, 166PPI
293.472(W)×165.078(H) mm
309.7(W)×184.1(H) ×10.1(D) mm
400 cd/m² (Typ.)
85/85/85/85 (Typ.)(CR≥10)
Symmetry
16.7M 90% NTSC
60Hz
500g (Typ.)
Panel Model
Panel Type
Pixel Format
Bezel Opening
Surface
Contrast Ratio
Display Mode
Response Time
Lamp Type
Touch Screen
Application
G133HAN01.0
a-Si TFT-LCD , LCM
RGB Vertical Stripe
295.07(W)×166.68(H) mm
Antiglare
800:1 (Typ.) (TM)
AHVA, Normally Black, Transmissive
25 (Typ.)(Tr+Td)
WLED , 50K hours , With LED Driver
Without
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: 0 ~ 70 °C ; Storage Temp.: 0 ~ 70 °C

G133HAN01.0 AUO 13.3inch industrial lcd model 1920*1080pixels 400 cd/m² 30pin for medical gaming and industrial use

AUO 13.3

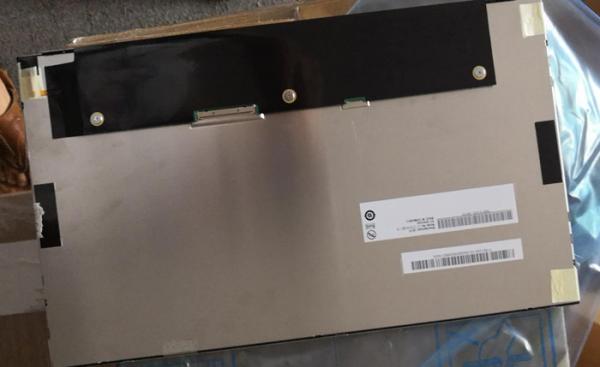

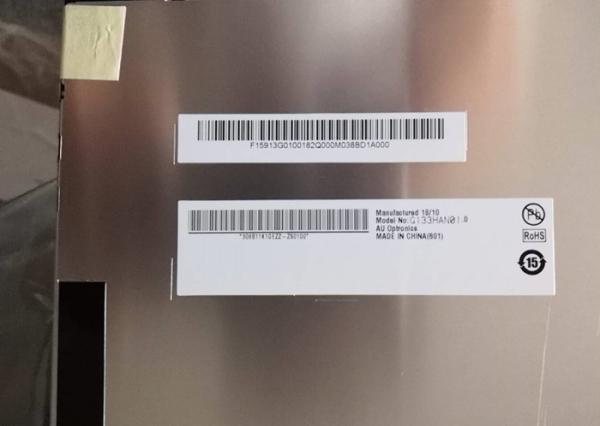

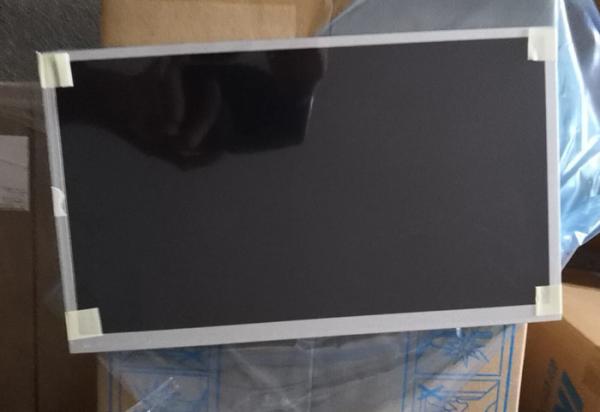

G133HAN01.0 is a 13.3" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 70°C , a storage temperature range of 0 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: Wide Color Gamut, DCI-P3, sRGB, WLED Backlight, Life ≥ 50K hours, With LED Driver, Reverse I/F, Matte . Based on its features, einklcd recommend that this model be applied to Industrial, Medical Imaging, Gaming etc. According to the information stored in einklcd this model mass production on Q3, 2016, Now this model is in production. We inputted this model's specification on Jul 7 2015 for the first time, and the latest update on Sep 18 2019. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of G133HAN01.0. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

All we sell lcd will be full test one by one before delivery to make sure the quality is best !
