LG 21.5 Inch PC LCD Module with 1920x1080 Pixels 250cd/m2 Brightness and 30 Pin Connector
LG 21.5 Inch PC LCD Module with 1920x1080 Pixels 250cd/m2 Brightness and 30 Pin Connector
LG 21.5 Inch PC LCD Module with 1920x1080 Pixels 250cd/m2 Brightness and 30 Pin Connector
LG 21.5 Inch PC LCD Module with 1920x1080 Pixels 250cd/m2 Brightness and 30 Pin Connector
LG 21.5 Inch PC LCD Module with 1920x1080 Pixels 250cd/m2 Brightness and 30 Pin Connector
LG 21.5 Inch PC LCD Module with 1920x1080 Pixels 250cd/m2 Brightness and 30 Pin Connector
LG 21.5 Inch PC LCD Module with 1920x1080 Pixels 250cd/m2 Brightness and 30 Pin Connector
LG 21.5 Inch PC LCD Module with 1920x1080 Pixels 250cd/m2 Brightness and 30 Pin Connector
Specifications
Brand Name :
LG
Model Number :
LM215WF9-SLA1
Certification :
Rohs,CE,FCC
Place of Origin :
korea
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
16.7M colors
model :
XGA
style :
wide screen high resolution 1920*1080Pixels
brightness :
250cd
connector :
30
contrast ratio :
1000:1
working time :
30k hours
Response :
14ms
Description

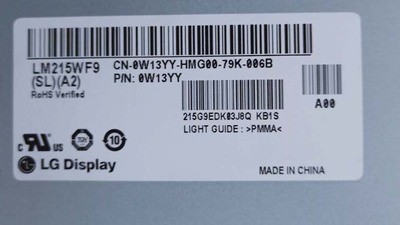

LG 21.5 Inch PC LCD Module - LM215WF9-SLA1
LG 21.5 Inch PC LCD Module with 1920x1080 Pixels 250cd/m2 Brightness and 30 Pin Connector
Product Overview

21.5-inch desktop monitor LCD panel with Full HD 1920*1080 resolution, IPS technology, and WLED backlight system.

Technical Specifications
Manufacturer LG Display
Model LM215WF9-SLA1
Screen Size 21.5 inch
Resolution 1920*1080 (FHD), 102 PPI
Brightness 250 cd/m²
Contrast Ratio 1000:1
Viewing Angle 89/89/89/89 (CR≥10)
Response Time 14ms (G to G)
Panel Technology IPS, Normally Black
Color Depth 16.7M colors, 72% NTSC
Backlight WLED, 30K hours lifespan
Interface LVDS (2 ch, 8-bit), 30 pins
Operating Voltage 5.0V
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Weight 1.64 kg
Key Features
  • Full HD 1920*1080 resolution with 102 PPI pixel density
  • IPS panel technology for wide viewing angles
  • 250 cd/m² brightness for clear visibility
  • 1000:1 contrast ratio for deep blacks
  • WLED backlight with 30,000 hours lifespan
  • LVDS interface with 30-pin connector
  • Antiglare surface treatment with hard coating
  • Compact design: 489.3 * 287 * 12.8 mm
Product Details
The LM215WF9-SLA1 is a 21.5-inch diagonal a-Si TFT-LCD display panel from LG Display, featuring an integrated WLED backlight system without backlight driver or touch screen. This panel utilizes IPS technology with normally black operation and offers wide 89-degree viewing angles in all directions. With its Full HD resolution and 72% NTSC color gamut, it delivers excellent image quality suitable for desktop monitor applications.
Note: Production status information is for reference only. For the latest production and specification details, please contact LG Display or their authorized agents before making integration decisions.
