Specifications
Brand Name :
Hitachi
Model Number :
SX16H006-ZZA
Certification :
Rohs,CE,FCC
Place of Origin :
Japan
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day

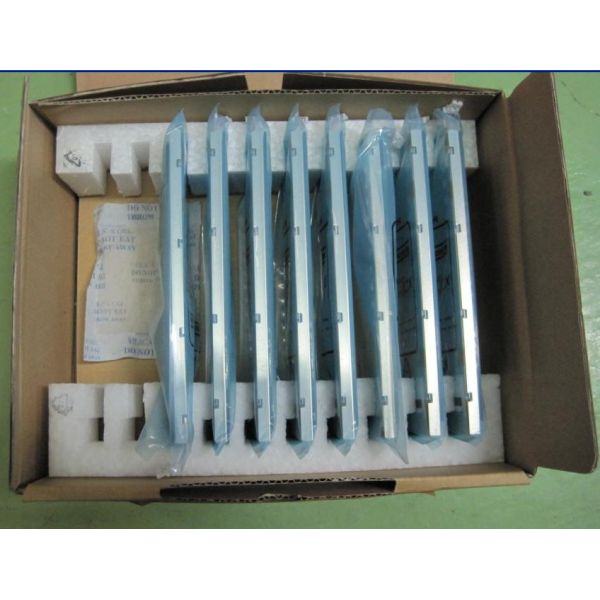

Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
640*240pixels
style :
24PIN IPS
brightness :
90CD/M2
color :
262k
contrast ratio :
350 :1
working life :
50K Hours
Type :
lcm
Size :
6.2inch
Lamp type :
WLED
Voltage :
3.3V
model numberer :
SX16H006-ZZA
Description
Hitachi 6.2Inch Industrial lcd model SX16H006-ZZA 640X240Pixels 109PPI 90cd/M2 24PIN
Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI) SX16H006-ZZA is a 6.2 inch diagonal CSTN-LCD display panel product, with an integral CCFL backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are summarized by Einklcd in the following: With Touch, Life ≥ 50K hours, Bar Display . Based on its features, Einklcd recommend that this model be applied to Industrial etc. According to the information stored in Einklcd ,this model mass production on Q2, 2003, Now this model is discontinued. We inputted this model's specification on Dec 24 2012 for the first time, and the latest update on Sep 22 2023. If you want to embed SX16H006-ZZA LCM in your future product, Einklcd strongly recommend that you should contact with HITACHI or it's distributor to learn lateast production and specification detail. The SX16H006-ZZA production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand
HITACHI
Model P/N
SX16H006-ZZA
Diagonal Size
6.2"
Panel Type
CSTN-LCD, LCM
Resolution
640(RGB)×240, HVGA 109PPI
Pixel Format
RGB Vertical Stripe
Active Area
148.8(W)×53.76(H) mm
Bezel Opening
152.5(W)×57.8(H) mm
  • Outline Size
    173(W)×70(H) ×8.5(D) mm
  • Surface
    -
  • Brightness
    90 cd/m² (Typ.)
  • Contrast Ratio
    30:1 (Typ.) (TM)
  • Viewing Angle
    45/45/40/40 (Typ.)(CR≥2)
  • Display Mode
    STN, Normally Black, Transmissive
  • Best View on
    6 o'clock
  • Response Time
    250/200 (Typ.)(Tr/Td)
  • Display Colors
    Color 28% NTSC
  • Lamp Type
    1 pcs CCFL , 50K hours , Without Driver
  • Frequency
    70Hz
  • Touch Screen
    4-wire Resistive Touch
  • Panel Weight
    140g (Typ.)
  • Application
    Hitachi 6.2Inch Industrial LCD Display 640X240Pixels 90cd/M2 24PIN LCM CSTN-LCD Panel
  • Signal Interface
  • Parallel Data (1ch, 8-bit) , 24 pins Connector
  • Input Voltage
  • 3.3V (Typ.)
  • Environment
  • Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Hitachi 6.2Inch Industrial LCD Display 640X240Pixels 90cd/M2 24PIN LCM CSTN-LCD Panel
