Mitsubishi 5inch Industrial LCD Display TFT-LCD Panel with 900cd/m2 Brightness and 800X480P Resolution
Mitsubishi 5inch Industrial LCD Display TFT-LCD Panel with 900cd/m2 Brightness and 800X480P Resolution
Mitsubishi 5inch Industrial LCD Display TFT-LCD Panel with 900cd/m2 Brightness and 800X480P Resolution
Mitsubishi 5inch Industrial LCD Display TFT-LCD Panel with 900cd/m2 Brightness and 800X480P Resolution
Mitsubishi 5inch Industrial LCD Display TFT-LCD Panel with 900cd/m2 Brightness and 800X480P Resolution
Mitsubishi 5inch Industrial LCD Display TFT-LCD Panel with 900cd/m2 Brightness and 800X480P Resolution
Specifications
Brand Name :
Mitsubishi
Model Number :
AA050MG03
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W,Western Union,MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
800*480pixels
style :
30PIN IPS
brightness :
900CD/M2
color :
16.7m
contrast ratio :
1000 :1
working life :
50K Hours
Type :
lcm
Size :
5inch
Lamp type :
WLED
Voltage :
3.3V
Description
Mitsubishi 5-Inch Industrial LCD Display AA050MG03
The Mitsubishi AA050MG03 is a 5.0-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. This industrial-grade display features wide operating temperature range (-30°C to 80°C), high brightness (900 cd/m²), and robust construction suitable for demanding industrial applications.
Key Features
  • 5.0-inch diagonal TFT-LCD display
  • High brightness: 900 cd/m² typical
  • Wide temperature range: -30°C to 80°C operation
  • WVGA resolution: 800*480 pixels, 188 PPI
  • WLED backlight system (4 strings)
  • 45-pin FPC connector
  • Industrial-grade durability
Technical Specifications
Brand Mitsubishi
Model Number AA050MG03
Diagonal Size 5.0 inches
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)*480 (WVGA), 188 PPI
Active Area 108.0(W) * 64.8(H) mm
Outline Dimensions 118.5(W) * 84.7(H) * 5.2(D) mm
Luminance 900 cd/m² (Typical)
Viewing Angle 85/85/85/85 (CR≥10)
Contrast Ratio 1000:1 (Typical)
Color Depth 16.7M colors, 50% NTSC
Response Time 12/12 ms (Typical, Tr/Td)
Refresh Rate 60Hz
Backlight 4 strings WLED, No Driver
Signal Type CMOS (1 ch, 8-bit), 45 pins FPC
Voltage Supply 3.3V (Typical)
Operating Temperature -30°C to 80°C
Storage Temperature -30°C to 80°C
Mass 80.0g (Typical)
Surface Treatment Clear, Hard coating (2H)
Touchscreen Without

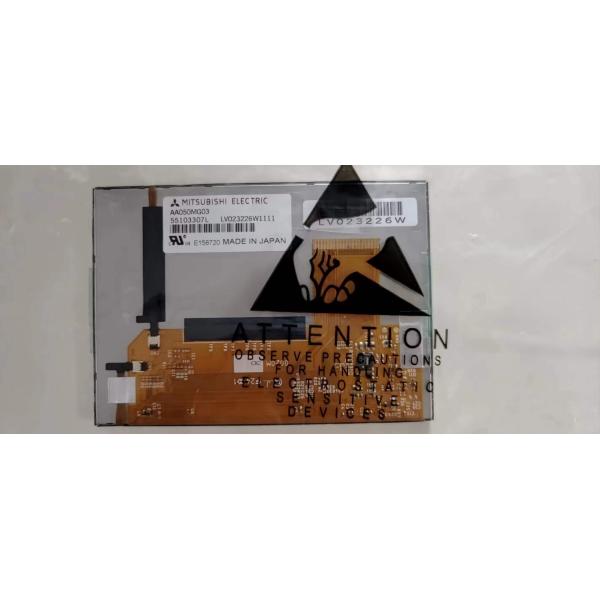

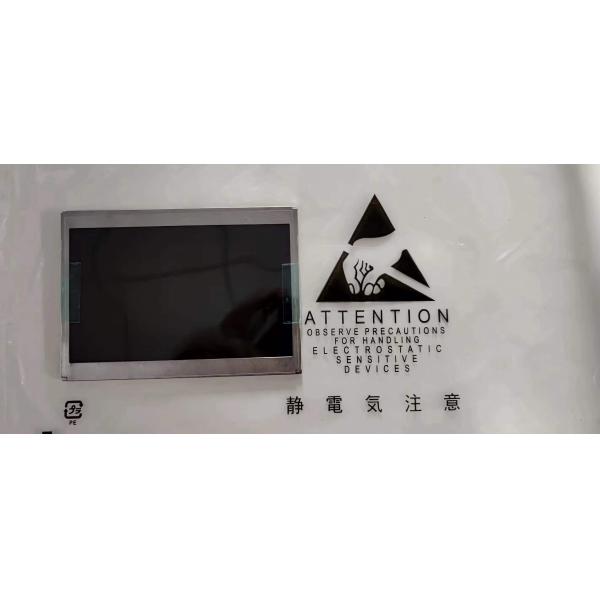

Product Images
Mitsubishi 5inch Industrial LCD Display TFT-LCD Panel with 900cd/m2 Brightness and 800X480P Resolution Mitsubishi 5inch Industrial LCD Display TFT-LCD Panel with 900cd/m2 Brightness and 800X480P Resolution
Important Notice: This model (AA050MG03) entered mass production in Q2 2014 with last shipment in Q2 2022 and is now discontinued. For integration into future products, we strongly recommend contacting Mitsubishi or their authorized agents for the latest production status and specification details. The information provided is for reference only and should not be used as the sole basis for decision-making.
