Specifications
Brand Name :
Effon
Model Number :
PTH2
Certification :
CE, ROSH, FCC, IP65 Ect
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
70000pcs/ month
Delivery Time :
1 day
Packaging Details :
one piece in one box
Product :
2D Bluetooth Barcode Scanner
CPU :
32bit
Camera :
640 X480 CMOS, 30fps
Angel :
31°
ReReading Angel :
360, ±55°
Working Voltage :
USB5V
Working Current :
125mA
Communication Port :
USBHID-KBW
Cable length :
2 meters
Dimension :
110mmL*71mmW*158mmH
Description

Wireless Barcode Scanner Laser Barcode Reader 1D 2D QR Handheld Bar Code Scanner

Product Features

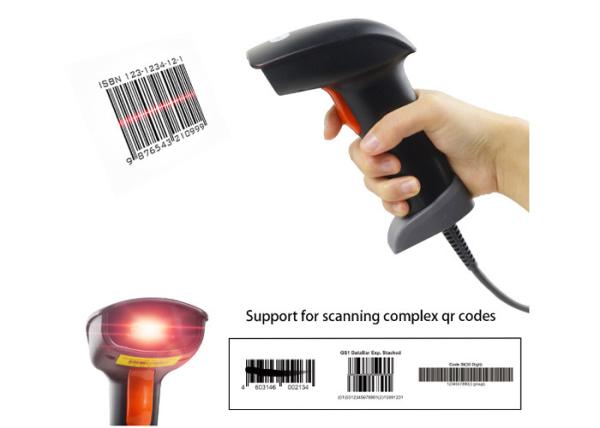

1. Strong reading performance, quickly read the main code and two-dimensional code on paper, computer or mobile phone screen;

2. Quickly read payment codes, electronic rolls, coupons, etc. on the screen of mobile devices, which can be used for online payment;

3. Support multiple communication methods such as USB, virtual serial port;

4. Applicable to various lighting environments (including completely dark), High temperature and humidity, and various harsh and complex working environments, such as: shock, vibration, and strong exposure;

5. Compatible with Windows, Android and Linux systems.

Product name 2D Scanner
Model name PTH2-U
Dimensions

Length:67mm, Width: 90mm, Height:160mm
Weight 168grams
Electrical Power: DC5V Typical: 180mA DC5V
Working mode USB mode
Scan mode Trigger mode
Ambient illumination 0～100,000lux(natural light)

Scanner performance

Sensor Type: 640 (horizontal) × 480 (vertical) pixels

Light: white LED

red LED

Scanner Angle: ±65°,±65°,±360°(skew, pitch, Roll)

Field of view: Horizontal: 36° , Vertical: 28°

Contrast: ≥20%
Barcode Type 1D Codabar,Code39,code32 Pharmaceutical(PARAF), Interleaved 2 of 5,NEC 2 of 5,Code93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11,Code 128,GS1-128,UPC-A,UPC-E,UCC Coupon Extended Code,EAN/JAN-8, EAN/JAN-13,MS,GSI DataBar Omnidirectional,GSI DataBar Limited,GSI DataBar Expanded,China Post (Hong Kong 2 of 5),Korea Post.
2D CodeblockA,CodeblockF,PDF417,MicroPDF417, GS1 Composite Codes,TL39, QR Code, Data Matrix,MaxiCode,Aztec,HANXIN.

Decoding depth &

Max. Resolution

(1 mil = 0.0254 mm)

 Code 39 30mm -90mm (5mil);
Code 39 40mm -195mm (13mil);
QR Code 30mm -170mm (15mil).
QR Code (Screen) 100mm -500mm (15mil).
Communication USB
OS IOS, Android, Windows, Mac
Certificate

CE, Rohs, FCC, EN60950, IEC60825, EMC.

Utility Model Patent No.: ZL201420211350.8
Laser safety IEC60825-1-2007, Class 1
Temperature

Operating: -20°C to +60°C ;

Storage: -30°C to +70°C
Humidity 5% to 95% (non-condensing)
