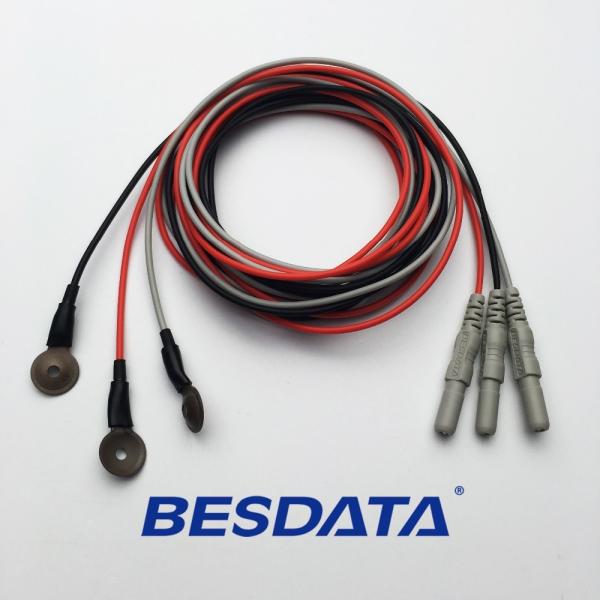

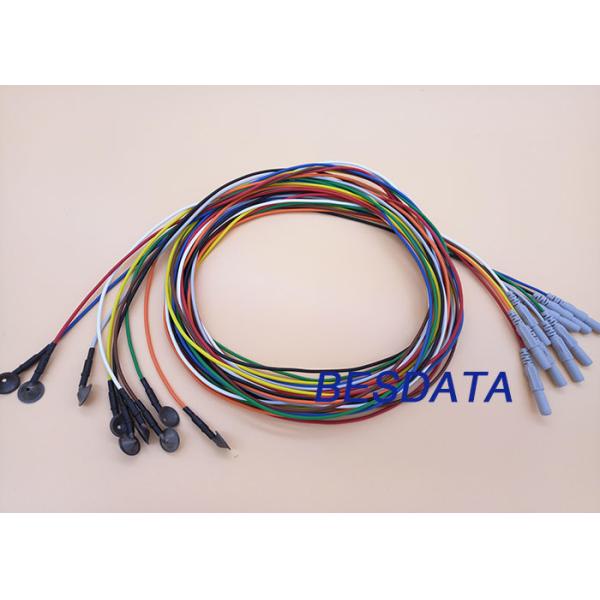

Gold Coated Cup Electrode EEG Silver Chloride Electrodes Lead Cable
Gold Coated Cup Electrode EEG Silver Chloride Electrodes Lead Cable
Specifications
Brand Name :
BESDATA
Model Number :
E02010001
Certification :
CE/ISO13485
Place of Origin :
CHINA
MOQ :
30 piecs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
2~7 days
Packaging Details :
plastic bag
Cable material :
TPU
Cup diameter :
10mm
Connector Type :
Din 1.5mm
Properties :
sintered electrodes
Warranty :
1 Year
Description

Gold Coated Cup Electrode EEG Silver Chloride Electrodes Lead Cable

silver/silver chloride(Ag/AgCl) electrodes are made from very finely powdered high purity silver and silver chloride.They are mixed in a specific ratio and compacted into the electrode body at very high pressures. The resulting pellet is relatively thick (0.7mm to 1.0mm) and never needs to be rechloridized because it is a homogenous mixture.

Feature:

1, Essentially non-polarization
2, Precision measurement and low-noise(low frequency)
3, Available in a variety of standard configurations for use in electrochemistry, electrophysiology, and precision bioelectric recording and stimulation.
4, Resistant against surface abrasion, as a new surface can be exposed to restore the original performance of the electrode
5, Optimal choice for scientific research and clinical electrophysiological measurement
6, DC Offset voltage: ＜150 μV; Drift: ＜25 μV/h; Noise:Max <1 μV(1 Hz)
7, Cathodic protection, as Reference electrode
8, Environmental monitoring: Underwater Electrical Field Measurement, Electrical Prospecting,Vessel and pipeline corrosion monitoring.

9, Custom made for specific requirements

Order Number Cup Material Cup Diameter Lead Wire Length Connector Type Quantity
E01008001 Sintered AgCl 8mm 1500mm 1.5mm 1
E01010001 Sintered AgCl 10mm 1500mm 1.5mm 1

Gold Coated Cup Electrode EEG Silver Chloride Electrodes Lead Cable
