ONA WIRE GUIDE O101+O102 WIRE GUIDE 0.105 0205 0.255 0.305 MM

ONA101 AE6999006 ONA UPPER WIRE GUIDE - OD6*ID0.105*H11 MM

ONA101 AE6999009 ONA UPPER WIRE GUIDE - OD6*ID0.155*H11 MM

ONA101 AE6999011 ONA UPPER WIRE GUIDE - OD6*ID0.205*H11 MM

ONA101 AE6999004R01 AE6999003R01 ONA UPPER WIRE GUIDE - OD6*ID0.255*H11 MM

ONA101 AE6999008R01 ONA UPPER WIRE GUIDE - OD6*ID0.305*H11 MM

------------------------------------------------------------------------------------------------

ONA102 AE6999002 ONA LOWER WIRE GUIDE - OD6*ID0.105*H11 MM

ONA102 AE6999010 ONA LOWER WIRE GUIDE - OD6*ID0.155*H11 MM

ONA102 AE6999012 ONA LOWER WIRE GUIDE - OD6*ID0.205*H11 MM

ONA102 AE6999003R02 ONA LOWER WIRE GUIDE - OD6*ID0.255*H11 MM

ONA102 AE6999007R02 ONA LOWER WIRE GUIDE - OD6*ID0.305*H11 MM

-----------------------------------------------------------------------------------------------------

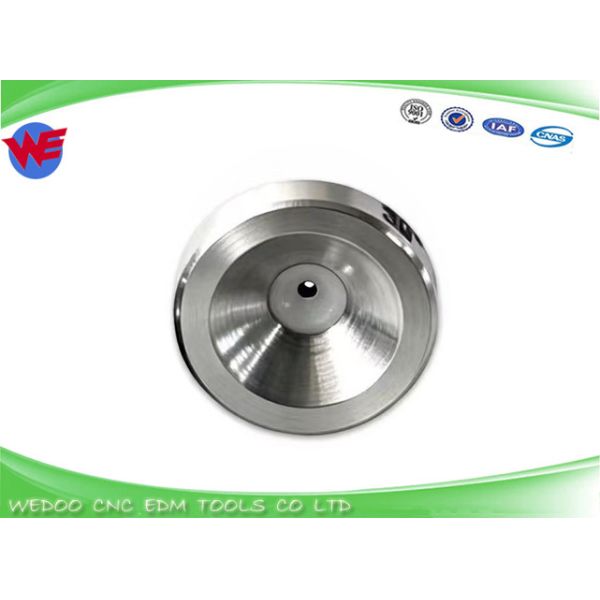

ONA103 E69200008R00 E69200033R00 UPPER WIRE GUIDE - OD7.5*ID0.105*H5 MM

ONA103 E69200026R00 E69200035R00 UPPER WIRE GUIDE - OD7.5*ID0.155*H5 MM

ONA103 E69200028R00 E69200037R00 UPPER WIRE GUIDE - OD7.5*ID0.205*H5 MM

ONA103 E69200039R00 E6920004R00 E69200020R00 UPPER WIRE GUIDE - OD7.5*ID0.255*H5 MM

ONA103 E69200041R00 E69200042R00 E69200021R00 UPPER WIRE GUIDE - OD7.5*ID0.305*H5 MM

----------------------------------------------------------------------------------------------------

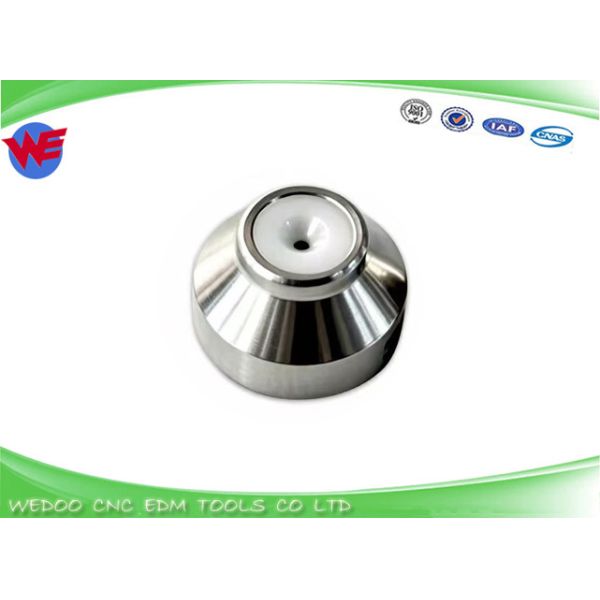

ONA104 E69200007R00 E69200034R00 WIRE GUIDE - 0.10MM

ONA104 E69200025R00 E69200036R00 WIRE GUIDE - 0.15MM

ONA104 E69200027R00 E69200038R00 E69200031R00 WIRE GUIDE - 0.20MM

ONA104 E69200040R00 E69200019R00 E69200003R00 WIRE GUIDE - 0.255MM

ONA104 E69200005R00 WIRE GUIDE - 0.30MM

O101 O102 O103 O104

Feature of Hitachi EDM Diamond Wire Guides

1. Using high quality raw materials of diamond (1mm thickness instead of 0.8mm thickness), ceramic , stainless steel

2. Produce by exprienced technician and engineers with Sophisticated machine equipment

3. High precision wire guide, Roundness and radius is tested by video measuring machine, tolerance

-0, +0.02mm

4. Easy to assembly ,and high precision on cutting

5. Competitive price , and large quantity wire guide in stock.
