M115 M116 MV MP Upper EDM Wire Guide Mitsubishi EDM Consumables Parts

MITSUBISHI _compress.pdf

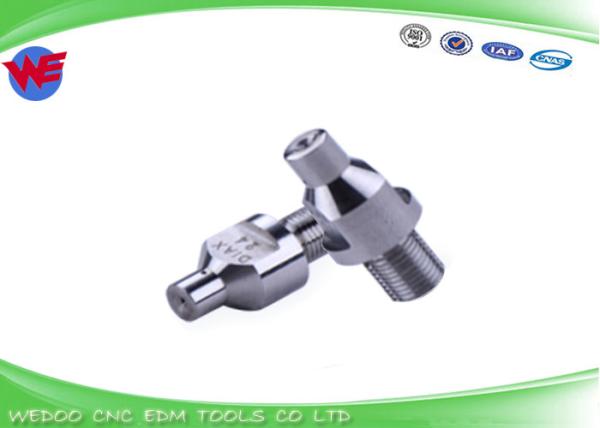

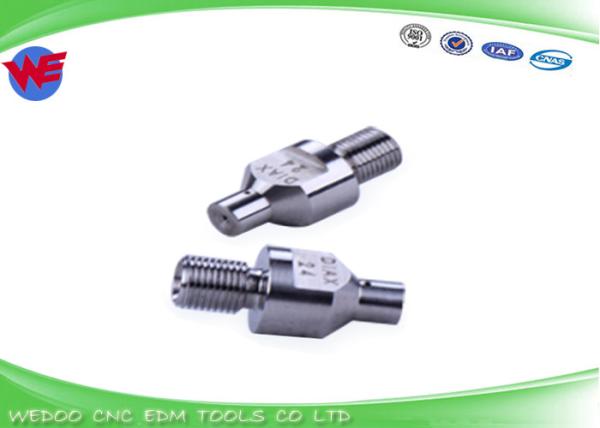

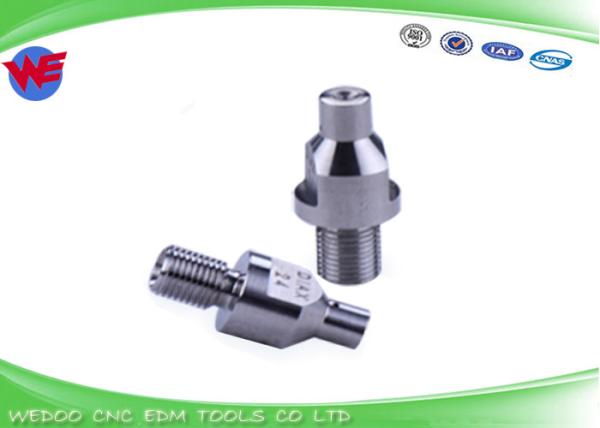

Upper Diamond Wire Guide

MV Wire Guide For Mitsubishi machine use (Made in China)

Dia : 0.105mm; 0.155mm;0.205mm, 0.21mm; 0.22mm; 0.255mm; 0.26mm; 0.305mm; 0.31mm;

Original Code : X052B627G63 X052B627G62 X052B627G66 X052B627G65 X052B627G64

Machine Model: DWC-MV1200/MV1400;MD series

M115 Upper Diamond Wire Guide MV Serie : X052B627G66 (DEG2400) (DFW3500) (DEG24A) D=0.105mm

M115 Upper Diamond Wire Guide MV Serie : X052B627G65 (DEG2500) (DFW3600) (DEG25A) D=0.155mm

M115 Upper Diamond Wire Guide MV Serie : X052B627G64 (DEG2600) (DFW3700) (DEG26A) (DEG30A) D=0.205mm

M115 Upper Diamond Wire Guide MV Serie : X052B627G63 (DEG2700) (DFW3800) (DEG27A) (DEG31A) (252215) D=0.255mm

M115 Upper Diamond Wire Guide MV Serie : X052B627G62 (DEG2800) (DFW3900) (DEG28A) D=0.305mm

M116 Upper Diamond Wire Guide MV Serie : X052B609G66 (DEG3200) (DFW4000) (DEG32A) D=0.105mm

M116 Upper Diamond Wire Guide MV Serie : X052B609G65 (DEG3300) (DFW4100) (DEG33A) D=0.155mm

M116 Upper Diamond Wire Guide MV Serie : X052B609G64 (DEG3400) (DFW4200) (DEG34A) (DEG37A) D=0.205mm

M116 Upper Diamond Wire Guide MV Serie : X052B609G63 (DEG3500) (DFW4300) (DEG35A) (DEG38A) D=0.255mm

M116 Upper Diamond Wire Guide MV Serie : X052B609G62 (DEG3600) (DFW4400) (DEG36A) D=0.305mm

Details:

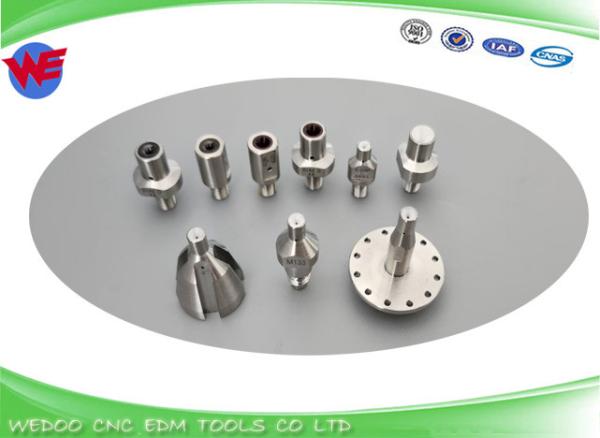

Products show

Advantages Of EDM Diamond Wire Guide From WEDOO CNC EDM TOOLS

Definition: Diamond Wire Gudie is EDM Wire cutting machine tool accessories, belongs to small parts, but it bears the mission of high precision. A high quality diamond Wire Guide have to bear high temperature and high pressure, high precision, not easy to abrasion -----this four standards.

Application range: Diamond Wire Guide mainly applies to Zinc Coated Wire, Molybdenum Wire and EDM Brass Wire.

Material: Choose industry synthetic diamond stone as the most importance material, high hardness, high precision, good abrasion resistance and surface smoothness . Using zirconia type ceramic ,the hardness is better than aluminium oxide type ceramic .High quality stainless steel as housing of EDM Diamond Guide.

Lifetime: Normal processing works 24 hours a day. The Wire Guide provided by WEDOO can achieve > 4500 Hours

Size: From 0.1mm to 0.31mm

There are many type difference Diamond Wire Guide for difference EDM Wire cut machine, such as Sodick, Makino, Fanuc,Charmilles,Mitsubishi,Chmer a variety of brands, although the shape of Wire Guide is different, but its effect is the same: to wear Brass wire

Main Market of us :

Asia , Europe , America , Africa

If any inquiry feel free to contact us !
