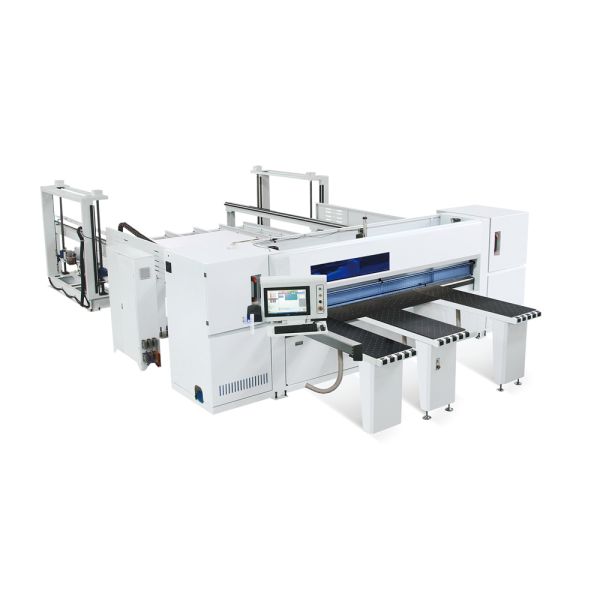

The Fully Automatic Computerized Panel Saw represents the pinnacle of modern woodworking and panel processing technology. Designed for high precision, exceptional stability, and seamless automation, this machine is an ideal solution for furniture manufacturing, cabinet making, and various sheet material processing industries. Manufactured in Guangdong, Foshan, it combines robust construction with intelligent control to deliver reliable performance day in and day out.

Advanced Automated Workflow
The CNC Beam Saw streamlines the entire cutting process:

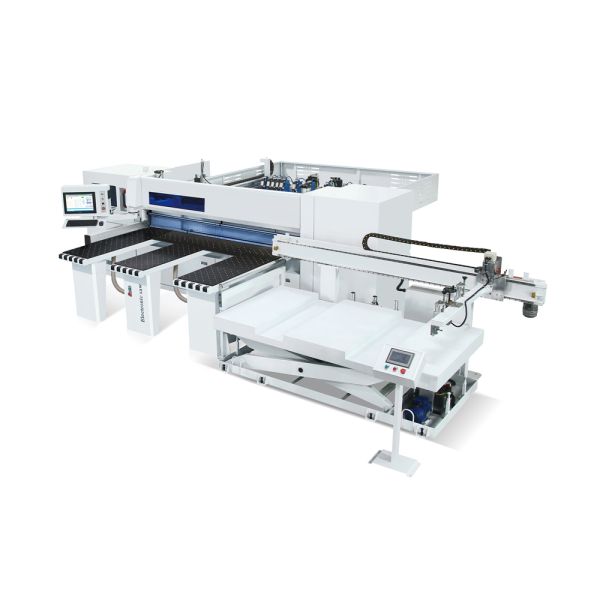

• Operators load raw panels onto the worktable manually or via an automatic feeding system.

• With a button press, clamping arms secure the panel.

• Initiating the automatic cycle triggers a series of precise operations: automatic positioning, edge alignment, sawing, and finally, automatic ejection of the finished parts.

• The entire process is controlled by input data or barcode scanning, ensuring accuracy and repeatability for every batch.

Key Features & Components

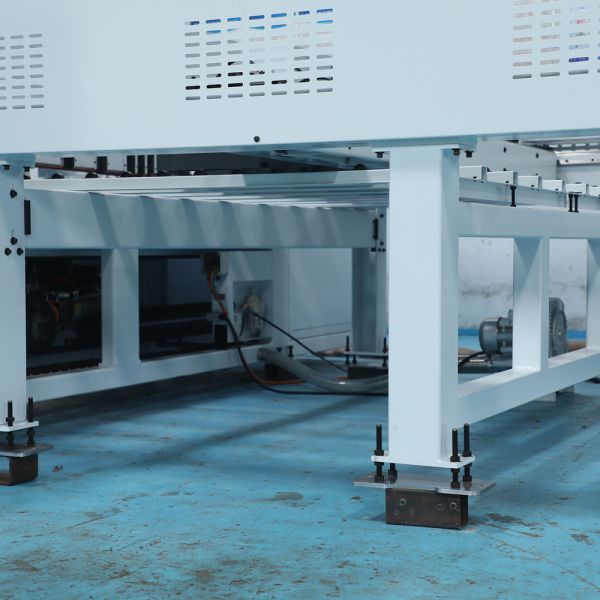

1. Robust Main Structure: Fabricated from high-quality steel using high-density welding technology and stress-relieving annealing treatment. This ensures exceptional structural stability, vibration resistance, and long-term durability, guaranteeing consistent cutting accuracy over years of operation.

2. Intelligent Electrical Control System: At the heart of the CNC Beam Saw is a Taiwan-made FATEK PLC (Programmable Logic Controller). Known for its large storage capacity and high-speed processing, this system ensures stable, reliable, and rapid control of all machine functions.

3. User-Friendly Operation Interface: The control panel features a clear, intuitive display. It offers safe and reliable control, with comprehensive operational guidance and fault alarm diagnostics. Users can easily edit cutting layouts and simulate cuts before execution. The system boasts excellent compatibility, integrating seamlessly with various optimization software, barcode management systems, and other automation solutions.

4. High-Performance Servo Drive: Equipped with INVT (Inovance) high-performance servo motors, the system executes control commands with remarkable speed and precision. This translates into fast, accurate positioning and efficient cutting cycles.

5. Ball-Bearing Air Floatation Table: The feed table utilizes a ball-type air floatation system, allowing operators to move heavy panels effortlessly into position, reducing physical strain and preparation time.

6. Precision Saw Carriage Unit: The saw carriage moves on dual linear guides, ensuring straight cuts, high precision, and minimal load. The gear-and-rack drive system is designed for reliable operation in dusty environments, maintaining stable accuracy.

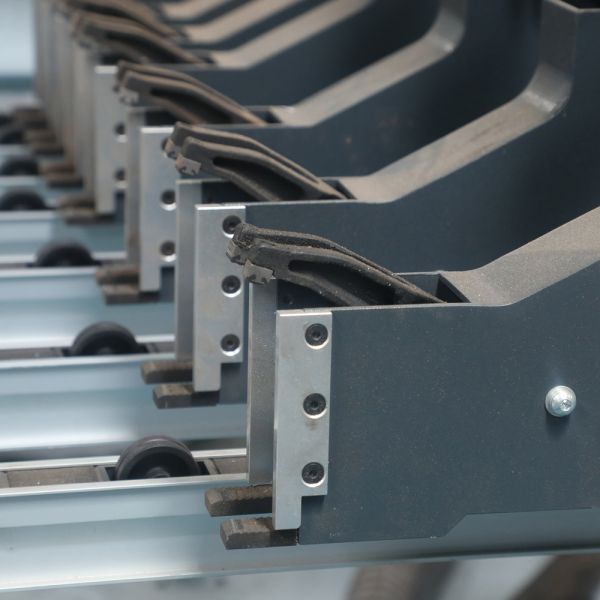

7. Feed Clamping Device: High-performance pneumatic clamps, driven by precision servos, securely hold panels in place during cutting, preventing any movement that could compromise accuracy.

8. Precision Linear Guides: German-made SLM square steel band linear guides provide smooth, high-precision movement with low noise levels. Their robust design ensures long service life and consistent performance.

9. Electronic Scale & Magnetic Sensing: A German-made electronic ruler provides closed-loop precision compensation with a tolerance of just ±0.02mm. Coupled with a high-precision imported rack-and-pinion feed mechanism, this guarantees exceptional positioning accuracy.

10. Remote Service & IoT System (Optional): This optional feature enables remote monitoring of the machine's operational status and facilitates integration into smart factory and Industrial Internet of Things (IIoT) environments for enhanced productivity and predictive maintenance.

Premium Component Brands
The CNC Beam Saw is built with quality components from renowned international and domestic brands, ensuring reliability:

• Control Switches & Contactors: Germany/Schneider Electric

• PLC: Taiwan/FATEK

• Inverter & Servo System: China/INVT (Inovance)

• Display: JIKOWI

• Pneumatic Components: China/Hengtong

• Solenoid Valves: Taiwan/AIRTAC

• Motor: China/Lijia

• Linear Guides: Germany/SLM

Technical Specifications

• Main Saw Motor Power: 15 kW

• Scoring Saw Motor Power: 2.2 kW

• Maximum Cutting Length: 3300 mm

• Maximum Cutting Thickness: 100 mm

• Maximum Cutting Width: 3300 mm

• Servo Positioning Accuracy: ±0.02 mm

• Cutting Accuracy: ±0.1 mm

• Main Saw Blade Diameter: 350 mm

• Main Saw Speed: 4800 rpm

• Traction Motor Power: 1.5 kW

• Cutting Speed: 0-100 m/min

• Air Pressure: 0.6-0.7 MPa

• Air Floatation Table Size: 1800x520 mm

• Overall Machine Dimensions: ~5860x5760x1800 mm

• Total Power: ~23 kW

• Display: 19-inch
