Specifications
Delivery Time :
15 Days
Model Number :
HTP-8000LB/HTP-8010
Curing temperature :
Low
Certification :
ISO9001/ISO45001/ISO14001/IATF16949 etc.
Anti-corrosion performance :
Excellent
MOQ :
Negotiable
Packaging Details :
1000KG/200KG
Substrate suitability :
Cold-rolled, hot-rolled steel sheets, galvanized substrates
Payment Terms :
TT / LC
Price :
Negotiable
Crater resistance :
Strong
Brand Name :
HAOLISEN
Supply Ability :
5000 tons per month
Throwing power :
Ultra-high
Place of Origin :
Shanghai China（Mainland）
Compatibility :
Good with Surfacer, base coats, clear coat
Description
High Throwing Power Electrophoretic Coating (E-Coat) for Automobile Applications
Product Overview

High throwing power electrophoretic coating (E-Coat) specifically engineered for automobile coating applications. Features excellent penetration for car inner cavities, strong anti-corrosion properties, and low-temperature curing capabilities.

Key Features
  • Superior appearance and finish quality
  • Ultra-high throwing power film deposition
  • Excellent compatibility with surfacer, base coats, and clear coat systems
  • Low curing temperature requirements
  • Exceptional anti-corrosion performance
  • Suitable for cold-rolled, hot-rolled steel sheets and galvanized substrates
  • Strong crater resistance for defect-free surfaces
Technical Performance

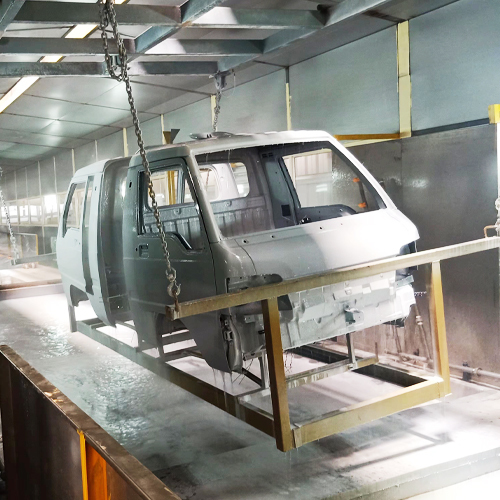

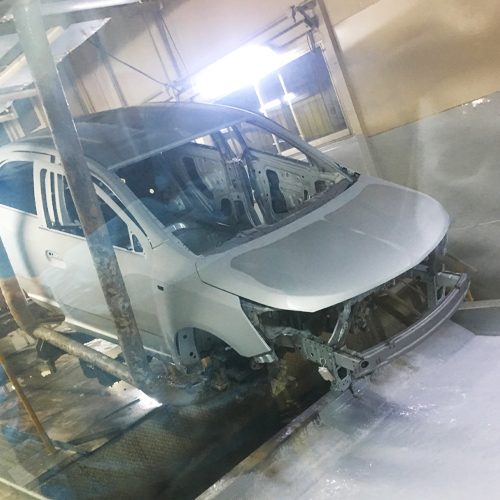

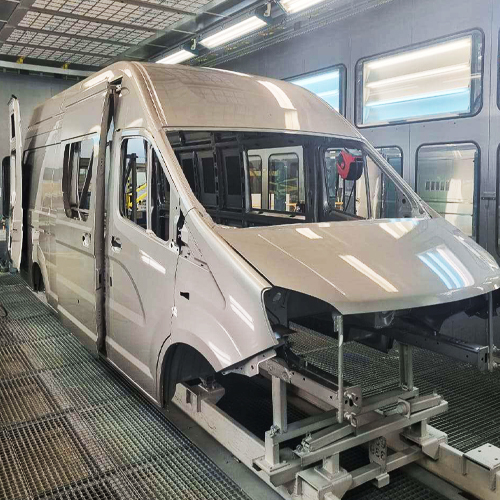

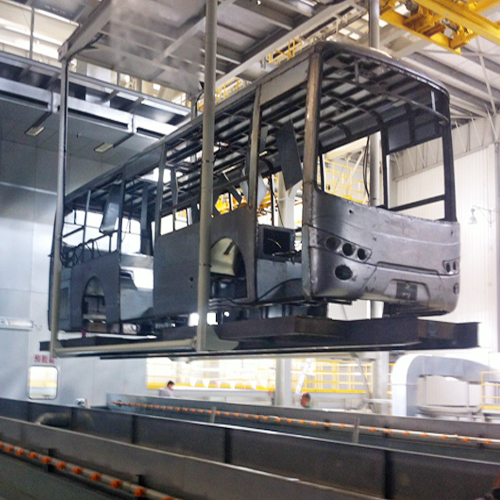

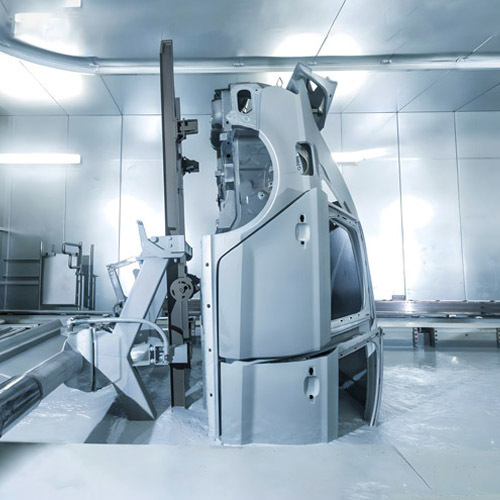

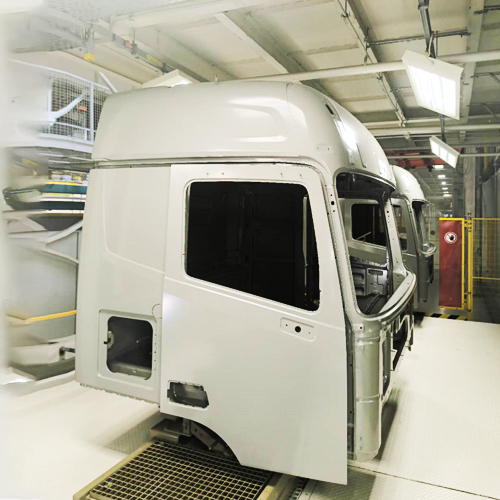

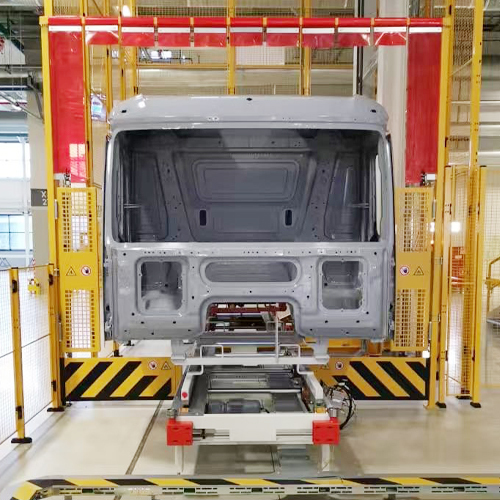

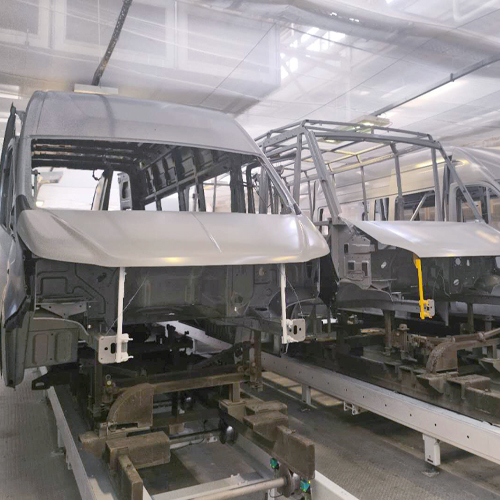

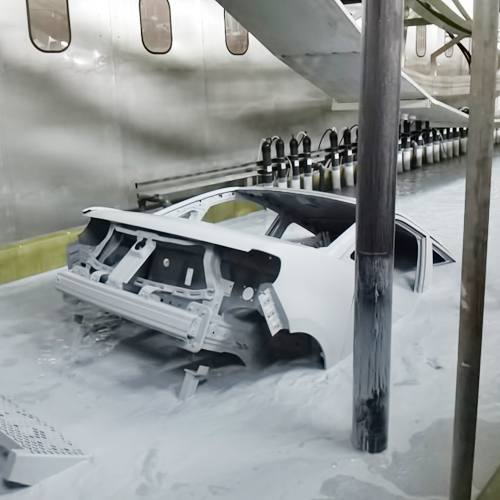

Vehicle coating electrophoretic paint demands stringent performance standards. Complex car body geometries require balanced surface finish, corrosion resistance, and uniform full-surface film deposition, which depends critically on throwing power characteristics.

Haolisen's high throwing power cathodic epoxy electrophoretic paint fully meets these demanding requirements and is trusted by major vehicle manufacturers worldwide for consistent, reliable performance.

Applications: Commercial Vehicles, Passenger Vehicles

Product film performance

Project

Indicator

Teststandard

Appearance

Normal/abnormal

Normal

Ocularestimate

Film thickness

μm

Body external cavity≥18；

lumen ≥12

GB/T 13452.2

Hardness

≥

2H

GB/T 6739

Cup drawing

mm, ≥

6

GB/T 9753

Adhesion

level 级

0

GB/T 9286

Flexibility

mm

1

GB/T 1731

Impact

kg ·cm

50

GB/T 1732

Gloss

60°

50-75

GB/T 9754

Water resistance

h, (23±2)℃, ≥

480

GB/T 1733

Acid resistance

h, (50g/L H2SO4), ≥

72

GB/T 9274

Alkali resistance

h, (50g/L NaOH), ≥

72

GB/T 9274

Gasoline resistance

92#, 24h

No bubbles, no wrinkles, no rust,no shedding

GB/T 9274

Anti-stoning

level 级, ≤

2.0

ISO 20567- 1

Moist heat resistance

40℃×98 %, 240 h

Expansion is not obvious, no peeling

GB/T 1740

Interlayer adhesion

level , ≤

0

GB/T 9286

*Salt spray resistance

h, (film thickness ≥ 15μm), ≥

1000

GB/T 10125
