Plate Type Digital Flexo Polymer Plate Image Making Machine Gauges 0.14mm-2.84mm
Plate Type Digital Flexo Polymer Plate Image Making Machine Gauges 0.14mm-2.84mm
Plate Type Digital Flexo Polymer Plate Image Making Machine Gauges 0.14mm-2.84mm
Plate Type Digital Flexo Polymer Plate Image Making Machine Gauges 0.14mm-2.84mm
Specifications
Brand Name :
EcooGraphix
Model Number :
FL800
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1set
Price :
$40000 per set FOB
Payment Terms :
T/T
Supply Ability :
100 sets per year
Delivery Time :
30 DAYS
Packaging Details :
wooden case
Model :
FL800
Machine type :
Polymer plate imagesetter
Max. output area :
790mm*690mm
Plate type :
digital flexo polymer plate
Plate gauges :
0.14mm-2.84mm
Application :
label and trade mark printing
Speed :
max. 2.5 sqm per hour
Description

31"*27" Digital flexo polymer plate image making Thermal CTP machine-FL800+FP800

Performance and Specifications of Machines:

  • Flexo CTP machine –small format
Model FL-800E FL800M

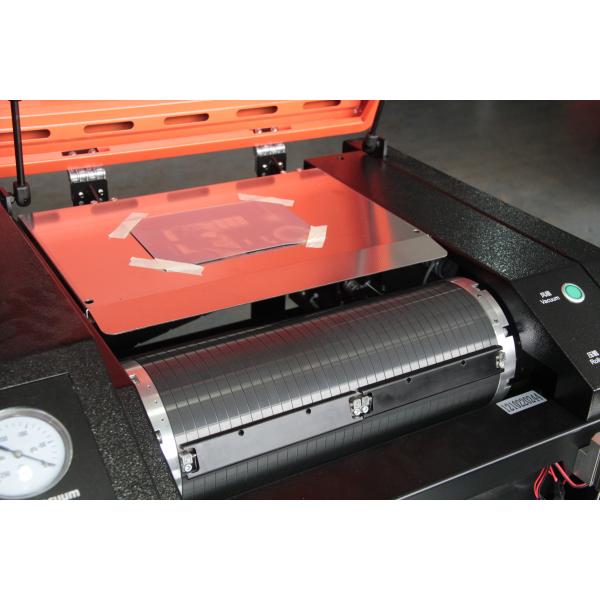

Exposing Mothod External Drum
Imaging System 16-channel 32-challel
Throughput 1.25 sqm/hour 2.5 sqm/hour
Plate Sizes Max.800mm x 660mm
Exposing Size Max.790mm x 690mm
Media Type Heat corrosive film, digital relief printing plate(water-wash), digital flexo plate(water wash), digital flexo plate (solvent-based)
Plate Thickness 0.14mm to 2.84mm
Resolution 4000dpi
Repeatablity ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface USB 2.0
Plate Loading Manual load and unload
Net Weight 640kg
Machine Size
(WxLxH)mm		 1610x 910 x 980mm
Power Supply 220v/50hz, 60hz, mainframe 1.5kw+vacuum2.0kw
Operation
Environment		 recommended:18-30℃, Max.18-26℃, humidity:10-80%

Application; Label, logo printing and publishing solutions;

Perfect rendering of details, comparable to offset printing quality;

Average laser life of 10,000 hours.

Plate Type Digital Flexo Polymer Plate Image Making Machine Gauges 0.14mm-2.84mm

Technical Features

l Drum auto balance: Auto balance system of drums takes no more than 5 seconds to adjust the drum balance block to a position,ensure the drum stable in high speed rotation.

l Auto switch of laser channel: When any laser channel breaks down,laser channel auto switch system can continue outputting through the widest consecutive channel that remains working to maximize production.

l Linear motor: More accurate,more simple,and more reliable.

l Autofocus: Keep accurate focus constantly to ensure sharp dot.

 Plate Type Digital Flexo Polymer Plate Image Making Machine Gauges 0.14mm-2.84mm

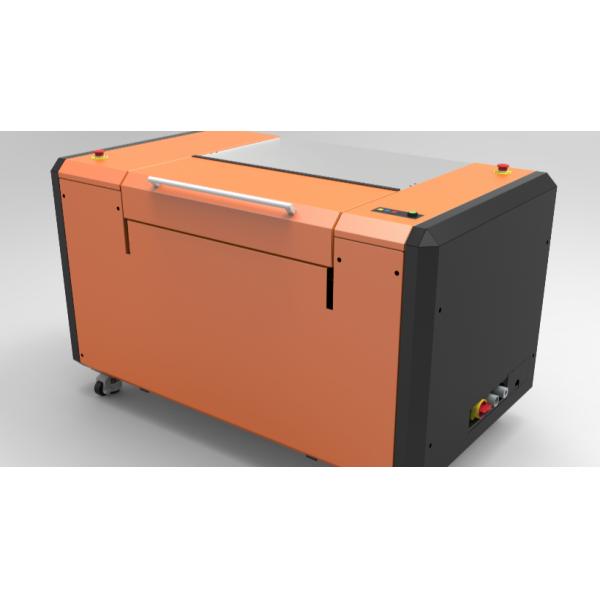

  • Flexo plate processing AIO machine(AIO, All in one model)
Model FP 800
Page size Max. 800mm*1200mm
Light UV lamp, wavelength 350-450nm
Net Weight 235kg
Machine Size
(WxLxH)mm		 1100x1380x1000mm
Power Supply single phase:220V, 50 Hz, power Consumption:4.8KW

Features:
AIO design, save space, suitable for small format Flexo CTP machine.
MPU central control panel makes operation easy.
Adopt imported UV Lamps and electronic ballast.
Strong vacuum device and sucking air plate.
Circle thermostatic air drying device assures.
Accurate and stable re-productivity of the original colors and graphics.

​Plate Type Digital Flexo Polymer Plate Image Making Machine Gauges 0.14mm-2.84mm

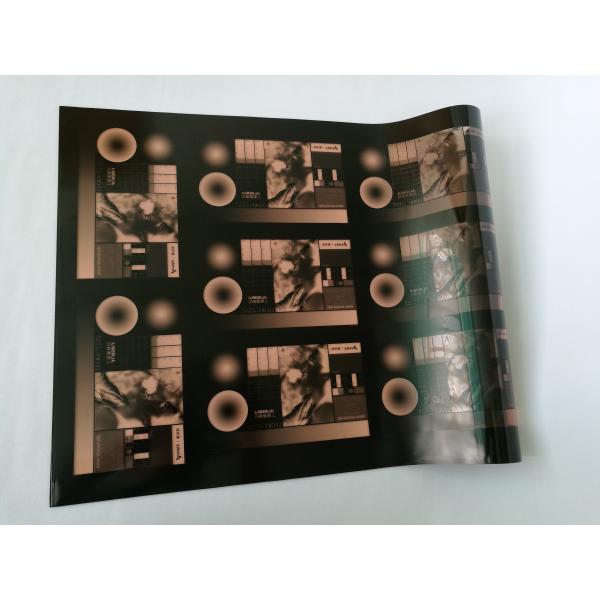

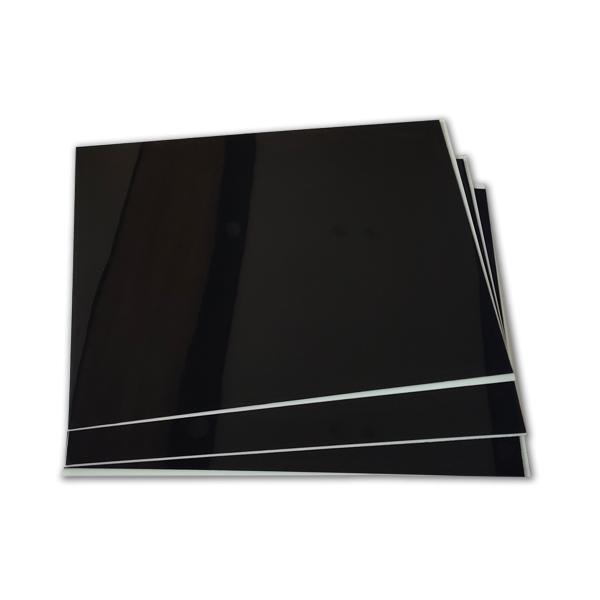

3. Digital flexo plate

Technical datas

plate models Thickness (MM) Hardness Image reproduction Mininum Positive line width (mm) Min, isolated dot size (um) Max. relief Depth(mm)
ECOO-DF114 114 75 1-99%,60L/cm 0.1 100 0.5-0.6
ECOO-DF170 170 63-73 1-98%,60L/cm 0.1 100 0.5-0.7
ECOO-DF228 228 60 1-99%,50L/cm 0.08 130 0.45-0.6
ECOO-DF284 284 40+-2 2-95%,48L/cm 0.175 250 0.8-2.0
ECOO-DF394 394 38 3-95%,36L/cm 0.175-0.25 500 1-1.5

Plate Type Digital Flexo Polymer Plate Image Making Machine Gauges 0.14mm-2.84mmPlate Type Digital Flexo Polymer Plate Image Making Machine Gauges 0.14mm-2.84mm
