Flexible Digutal CTP Printing Plates For Carton Packaging And Labels
Flexible Digutal CTP Printing Plates For Carton Packaging And Labels
Flexible Digutal CTP Printing Plates For Carton Packaging And Labels
Flexible Digutal CTP Printing Plates For Carton Packaging And Labels
Flexible Digutal CTP Printing Plates For Carton Packaging And Labels
Flexible Digutal CTP Printing Plates For Carton Packaging And Labels
Specifications
Brand Name :
EcooGraphix
Model Number :
Digital Flexo Plates
Certification :
CE
Place of Origin :
China
MOQ :
1 box
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
10-20 days
Packaging Details :
Standard Exporting Package
Product Name :
Flexible Digutal CTP Printing Plates
Features :
Holds the finest detail without the need to back mask
Applications :
Suitable for labels, tags, flexible packaging, sacks, folding carton, films and so on.
Thickness :
1.14/1.70/2.28mm
Description

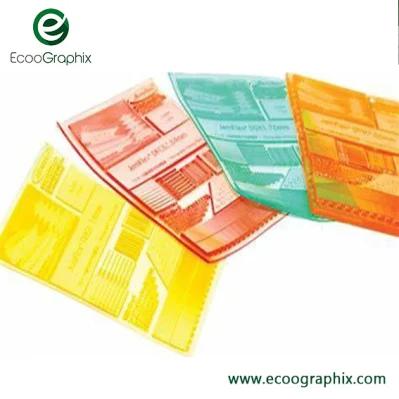

Digital Flexo Plate - Computer To Plate Directly

Digital Flexographic Plates deliver higher quality prints and increased productivity with excellent resolution and imaging capabilities for a wide range of substrates and applications. Ink transfer is enhanced to provide extremely smooth solids and crisp, clean runs.

Flexible Digutal CTP Printing Plates For Carton Packaging And Labels

Production Description:

Features:
1. Superior printing quality with sharper images, more open intermediate depths, finer highlight dots and less dot gain, i.e. larger range of tonal values therefore improved contrast and produce flat top dots when adequate process equipment are used.
2. High resilience and good resistance towards mechanical impacts deliver excellent durability.
3. Increased productivity and data transfer without loss of quality due to digital workflow.
4. Excellent ink transfer using water and alcohol-based inks.
5. Cost effective and more environmentally friendly in processing, as no film is required.

Applications:
Suitable for labels, tags, flexible packaging, sacks, folding carton, films and so on.

Flexible Digutal CTP Printing Plates For Carton Packaging And Labels

Specification:

Technical Data:

Thickness
(mm / inch)		 Hardness
(Shore Å)		 Total Range
(%)		 Screen Ruling
(LPI)		 Minimum Isolated Line
(mm)		 Minimum Isolated Dot
(mm)
1.14/0.045 75 1 - 98% 175 0.1 0.15
1.70/0.067 67 1 - 98% 175 0.1 0.15
1.70/0.067 55 2 - 95% 150 0.1 0.15

Recommended Processing Conditions:

Thickness
(mm/ inch)		 Back exposure
(seconds)		 Main exposure
(mins)		 Wash out
(mm/mins)		 Dry
(hours)		 Post exposure
(mins)		 Detack
(mins)
1.14/0.045 40-60 10-15 160-180 1.5-2 5 4
1.70/0.067 50-70 10-15 140-180 1.5-2 5 4
1.70/0.067 60-100 10-15 130-170 2-2.5 5 4

Flexible Digutal CTP Printing Plates For Carton Packaging And Labels

Flexible Digutal CTP Printing Plates For Carton Packaging And Labels

More Details:

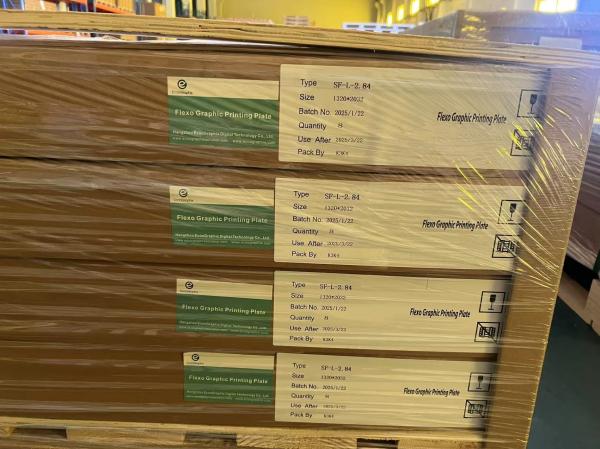

Delivery and Package
Any kinds of transpotation are workable for us. Usually the departure port is Shanghai port or Ningbo port. The flexo plate is packed in carton and place in harizon. Pakced in pallet to avaoid any damaging or hurt.
