Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard
Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard
Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard
Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard
Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard
Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard
Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard
Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard
Specifications
Brand Name :
EcooGraphix
Model Number :
ECOO Coating-760
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 sets/year
Packaging Details :
Standard Exporting Package
Product Name :
Automatic Spot UV Varnish Coating And Glazing Machine
Min. Paper Size :
290X270mm
290X270mm :
760x595mm
Sheet Weight :
80-400gsm
Production Speed :
6000 sheet/h
Power :
45kw
UV Lamp :
3pcs x 8kw
IR Lamp :
18pcs x 1kw
Paper feed heigh :
1050mm
Paper stack height :
920mm
Weight :
65000kg
Description

Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard

Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard
(ECOO Coating-760)

Product Desription

Brief Introduction:
The spot uv coating machine Ecoo coating-760 is a new coating equipment with excellent performance, which integrates the advanced technologies at home and abroad. It can both spot and overall coating, and has the advantages of high working speed, high gloss, thin and uniform coating layer. It is widely used in packaging decoration, book cover and other printing materials.

Features:
The whole machine has a one-key acceleration function. After the main machine accelerates, the oven, paper delivery, feeder, and metering roller will all change according to the speed of the main machine.
Use metering roller anilox roller to oil and then transfer to blanket.

Specification

Model Ecoo coating-760
Max.sheet size 760x595mm
MIN.sheet size 290X270mm
Sheet weight 80-400gsm
Production speed 6000 sheet/h
Power 45kw
UV lamp 3 pcs x 8 kw
IR lamp 18 pcs x 1 kw
Paper feed heigh 1050mm
Paper stack height 920mm
Weight 65000kg
Dimension 9500x2050x2000mm

Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard

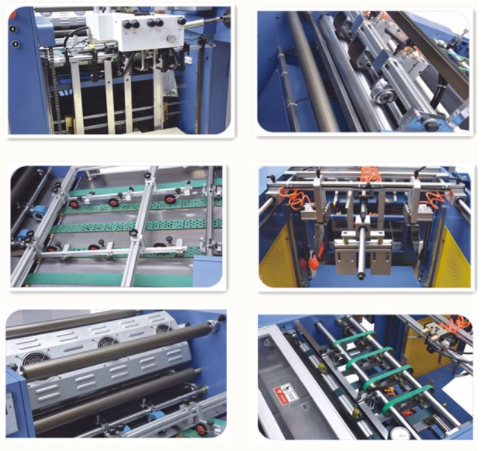

Machine Spare Parts

Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard

FAQ


1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?
Normally 1 years.

4. What is the Lead Time?
Usually 60 days, and we will try our best to meet your demands.

5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
