48-Channel EcooGraphix 2400dpi Thermal CTP Plate Macking Machine for Offset Printing
48-Channel EcooGraphix 2400dpi Thermal CTP Plate Macking Machine for Offset Printing
48-Channel EcooGraphix 2400dpi Thermal CTP Plate Macking Machine for Offset Printing
48-Channel EcooGraphix 2400dpi Thermal CTP Plate Macking Machine for Offset Printing
48-Channel EcooGraphix 2400dpi Thermal CTP Plate Macking Machine for Offset Printing
48-Channel EcooGraphix 2400dpi Thermal CTP Plate Macking Machine for Offset Printing
48-Channel EcooGraphix 2400dpi Thermal CTP Plate Macking Machine for Offset Printing
48-Channel EcooGraphix 2400dpi Thermal CTP Plate Macking Machine for Offset Printing
Specifications
Brand Name :
EcooGraphix
Model Number :
EcooSetter T-400 F/S/E
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10,000 Sets/Year
Delivery Time :
25 Days
Packaging Details :
Standard Export Packing
Machine Classification :
CTP Plate Machine
Imaging System :
48-Channel; 32-Channel; 24-Channel
Throughput(Plates/Hour) :
28; 22; 16, 800mm X 690mm, 2400dpi
Resolution :
2400dpi
Plate Sizes :
Max. 800mm X 660mm, Min. 400mm X 300mm
Media Type :
Positive 830nm Thermal CTP Plate
Plate Thickness :
0.15mm to 0.30mm
Power Supply :
Single phase: 220AC, +6%, -10%, Power Consumption: 4KW
Description

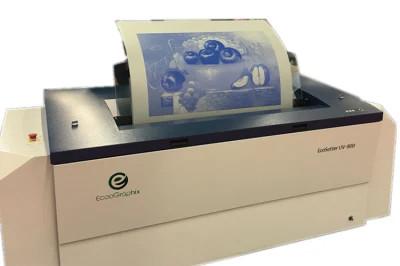

EcooGraphix Plate Making Machine Thermal CTP Machine

The EcooGraphix Conventional CTP (UV-CTP/CTCP) Plate Making Machine offers an indispensable prepress solution tailored for quick short-run offset printing. This advanced machine streamlines the plate-making process by directly transferring computer images to CTP plates. By eliminating the need for traditional film, it significantly reduces labor costs and enhances overall production efficiency.

With the EcooGraphix CTP system, you can expect precise imaging and consistent quality, ensuring that each print run meets high standards. This makes it an ideal choice for businesses looking to optimize their prepress operations while maintaining a competitive edge in the fast-paced printing industry.

Specifications

ECOO T-400 Series Thermal CTP Specifications
Model T-400F T-400S T-400E
Exposing Method External Drum
Imaging System 48-channel 32-channel 24-channel
Discrete 830nm laser diode
Throughput 28plates/hour 22plates/hour 16plates/hour
800mm x 690mm, 2400dpi
Plate Sizes Max. 800mm x 660mm
Min. 400mm x 300mm
Exposing Size Max. 800mm x 646mm
Min. 260mm x 284mm
Media Type Positive 830nm thermal CTP plate
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Repeatability

±5μm (Continuous exposure for 4 times or above on the same plate with

a temperature of 23ºC and humidity of 60%)
Interface USB 2.0
Plate Loading Semi-automatic
Net Weight 800kg
Machine Size (WxLxH)mm 1900 x 1200 x 1000
Power Supply Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW
Environment Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%
