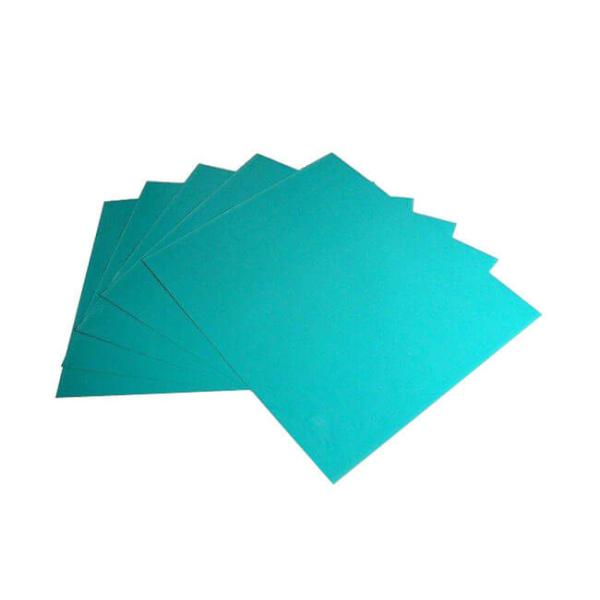

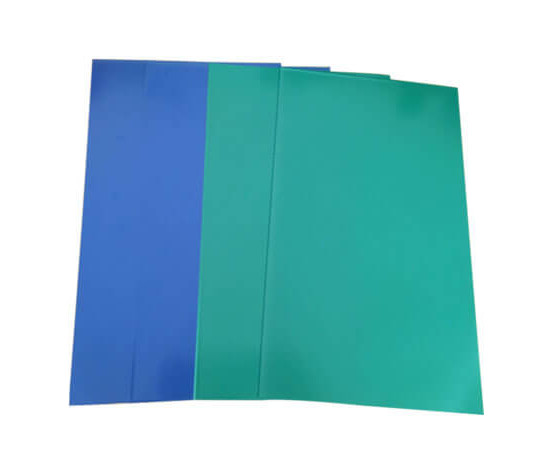

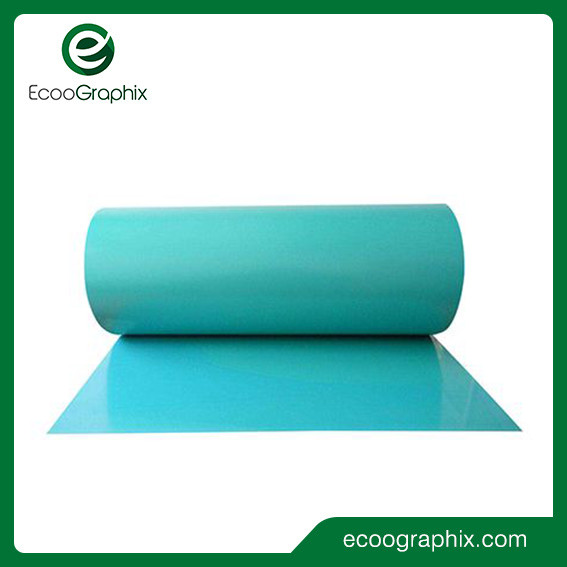

High Photosensitive Speed Aluminum CTP Positive PS Plate
High Photosensitive Speed Aluminum CTP Positive PS Plate
High Photosensitive Speed Aluminum CTP Positive PS Plate
High Photosensitive Speed Aluminum CTP Positive PS Plate
High Photosensitive Speed Aluminum CTP Positive PS Plate
High Photosensitive Speed Aluminum CTP Positive PS Plate
Specifications
Brand Name :
EcooGraphix
Model Number :
ECOO-PS
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1000 Square Meters
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2,000,000 Sqm Per Year
Delivery Time :
30 DAYS
Packaging Details :
Standard Export Packing
Plate Type :
Positive PS Plate
Resolution :
1-99% @ 300LPI
Length of Run (Unbaked) :
50,000 to 100,000 impressions
Length of Run (Baked) :
Over 100,000 impressions
Gauges :
0.15mm, 0.20mm, 0.25mm, 0.30mm and 0.40mm
Developing time :
20-30 sec
Processing Speed :
0.80 - 1.20 m/min
Safelight :
Handle under yellow safe light (UV free)
Description

EcooGraphix Long Run Positive PS Aluminum Plate CTP Plate

Characteristic


Uniform surface coating and high photosensitive speed.

High resolution and higher press run.

Precise half-tone dot reproduction.

Faster exposure and good stability.
Specification
​
Model ECOO-PS
Plate Type Positive PS Plate
Application Commercial and newspaper printing
Substrate Electro chemically grained and Anodized lithographic aluminum
Gauge 0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1280 mm
Power of light 3,000-5,000 w
Length of Run Unbaked: 50,000 to 100,000 impressions;
Baked: Over 100,000 impressions (dependent upon image resolution, press, press chemical, ink and paper conditions).
Processor All brands or Manual
Aluminum Standard 1050 Alloy
Developing time 20-30 sec
Spectral Sensitivity 320-405 nm
Resolution 1-99% @ 300LPI
Image Color Green
Developer Any positive plate developer or our own developer
Processing temperature 20-25ºC
Processing Speed 0.80 - 1.20 m/min
Safelight Handle under yellow safe light(UV free)
Shelf life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing Stored in a cool and dry environment, away from excessive cold, heat and humidity

​

Application

EcooGraphix PS Plate or conventional analog plate can be used for offset/lithographic commercial and newspaper printing. Unique production technology and high quality raw materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.
