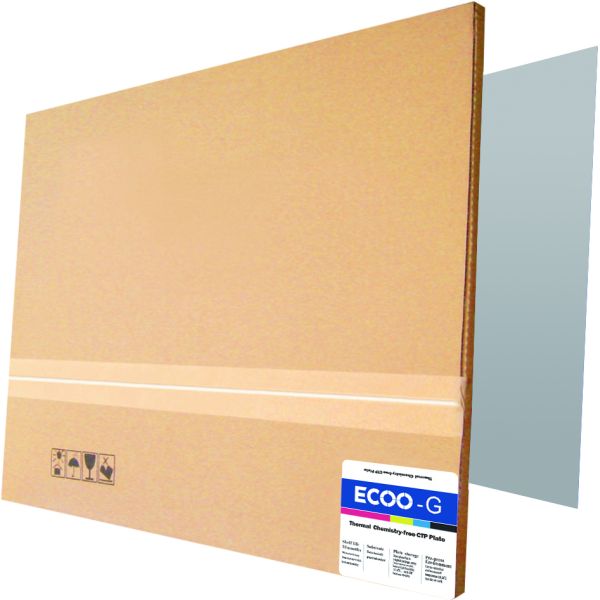

800-850 nm ECOO-G Thermal CTP Plate with 100,000 Impressions Run Length and 130-150 mj/m² Low-energy Imaging for Processless Printing
800-850 nm ECOO-G Thermal CTP Plate with 100,000 Impressions Run Length and 130-150 mj/m² Low-energy Imaging for Processless Printing
Specifications
Image color :
Blue
Model Number :
ECOO-G
Brand Name :
EcooGraphix
Supply Ability :
200, 000 Square Meter/Year
Certification :
ISO,CE
Payment Terms :
T/T
100,000 impressions Actual run length depends on printing conditions :
130-150 mj/ m²
Price :
$3.50/㎡
Packaging Details :
Standard Exporting Plywood Boxes
Application :
Commercial Printing
Spectral Sensitivity :
800-850 nm
Long Impression :
100,000 impressions Actual run length depends on printing conditions
Place of Origin :
China
Delivery Time :
30 DAYS
Description
800-850 nm ECOO-G Thermal Processless Laser-Sensitive Plate
ECOO-G Thermal Processless Laser-Sensitive Plate is a non-ablation thermal-negative type plate designed for high-grade commercial and newspaper printing applications.
Product Specifications
Model ECOO-G
Plate Type Non-ablation thermal-negative type
Application High grade commercial and newspaper printing
Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.15mm / 0.30mm
Maximum Short Grain Width Maximum width 1280 mm
Spectrum Scope 800-850 nm
Photosensitive Wave Length 830 nm
Platesetter Various dominant thermal platesetters in the market
Image Color Blue
Low-energy Imaging 130-150 mj/m²
Latent Image Stabilization Period ≤7 days
Recommended Screen Method 1-99 @200 Lpi AM / 20u FM and mixture
Start-up Paper Number <50 sheets
Safety Light 1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light
Processing Without processing, directly on press
Run Length 100,000 impressions (Actual run length depends on printing conditions)
Shelf Life 12 months under recommended conditions
Transportation Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity
Storage Recommended condition: 18℃-24℃, 40%-50% RH
800-850 nm ECOO-G Thermal CTP Plate with 100,000 Impressions Run Length and 130-150 mj/m² Low-energy Imaging for Processless Printing
Complete Product Range
  • ECOO-G Thermal Chemistry-free CTP Plate, negative-working, no process required
  • ECOO-CTCP CTCP Plate
  • ECOO-ES Thermal CTP Plate, single layer, positive-working
  • ECOO-ED Thermal CTP plate, double layer, positive-working
  • ECOO-TSR Thermal CTP plate, double layer, positive-working
  • ECOO-CTCP-ES Positive CTCP Plate, single layer
  • ECOO-CTCP-D Positive UV-CTCP Plate, double layer
Ordering & Support Information
Lead Time 30 calendar days from deposit confirmation
Payment Term 30% deposit via T/T, 70% balance before shipment
Packaging Term Export-grade cartons with ECOO labels, custom packaging available
Shipment Term FOB, CIF, or DDU options available
Free Samples Up to 10 sample plates available for testing
