Specifications
Max.label width :
330mm
Optionals :
Cold laminating,slitting,roll to sheet cutting,waste removing
Brand Name :
EcooGraphix
Model Number :
LSC E
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
300SET
Delivery Time :
30 DAYS
Packaging Details :
standard export packing
Working speed :
12m/min
Max.label length :
500mm
Cutting blades :
4pcs
Blade dropping mode :
Solenoid
Substrates :
PET film,Coated paper, Synthetic paper, Art paper, etc
Description

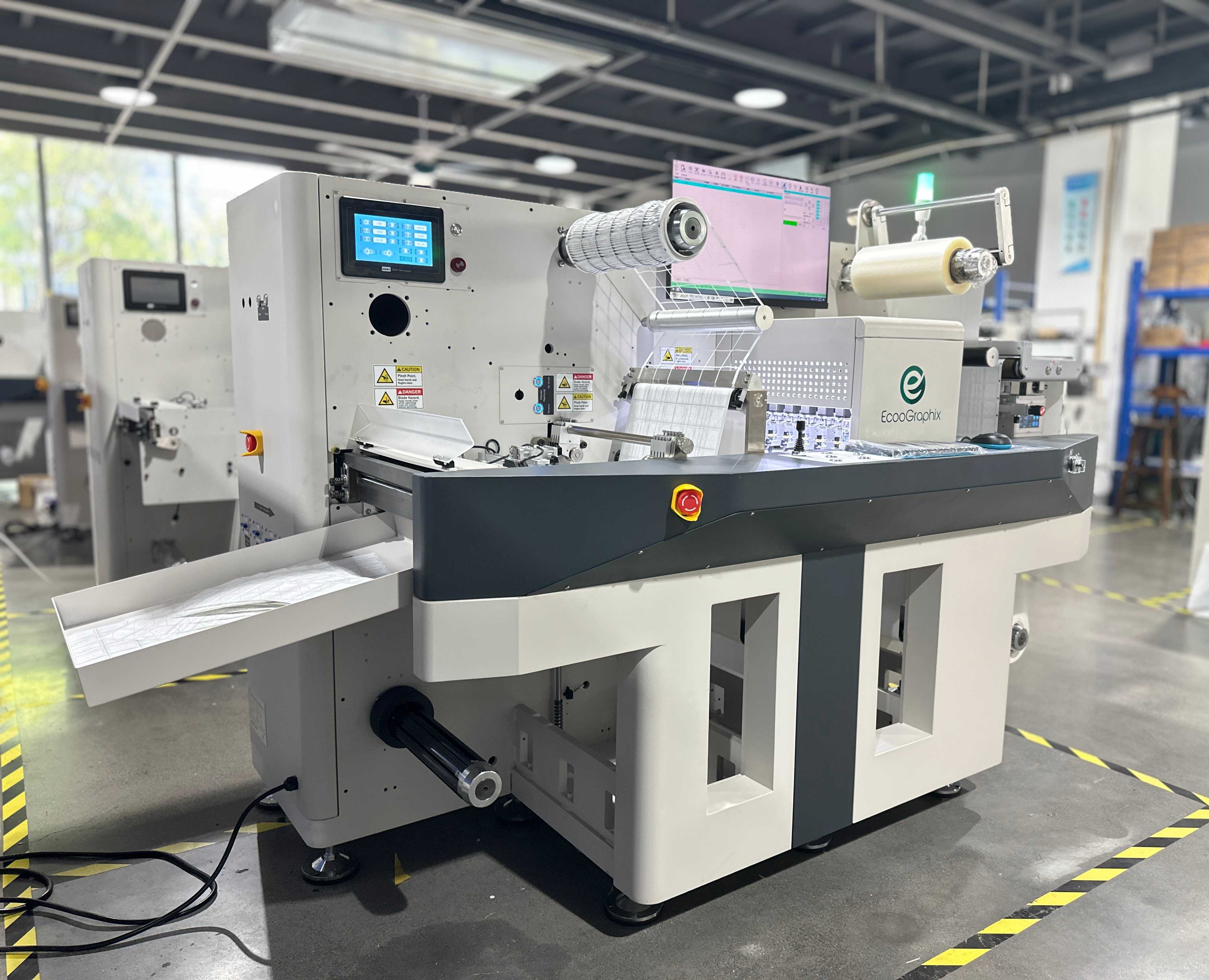

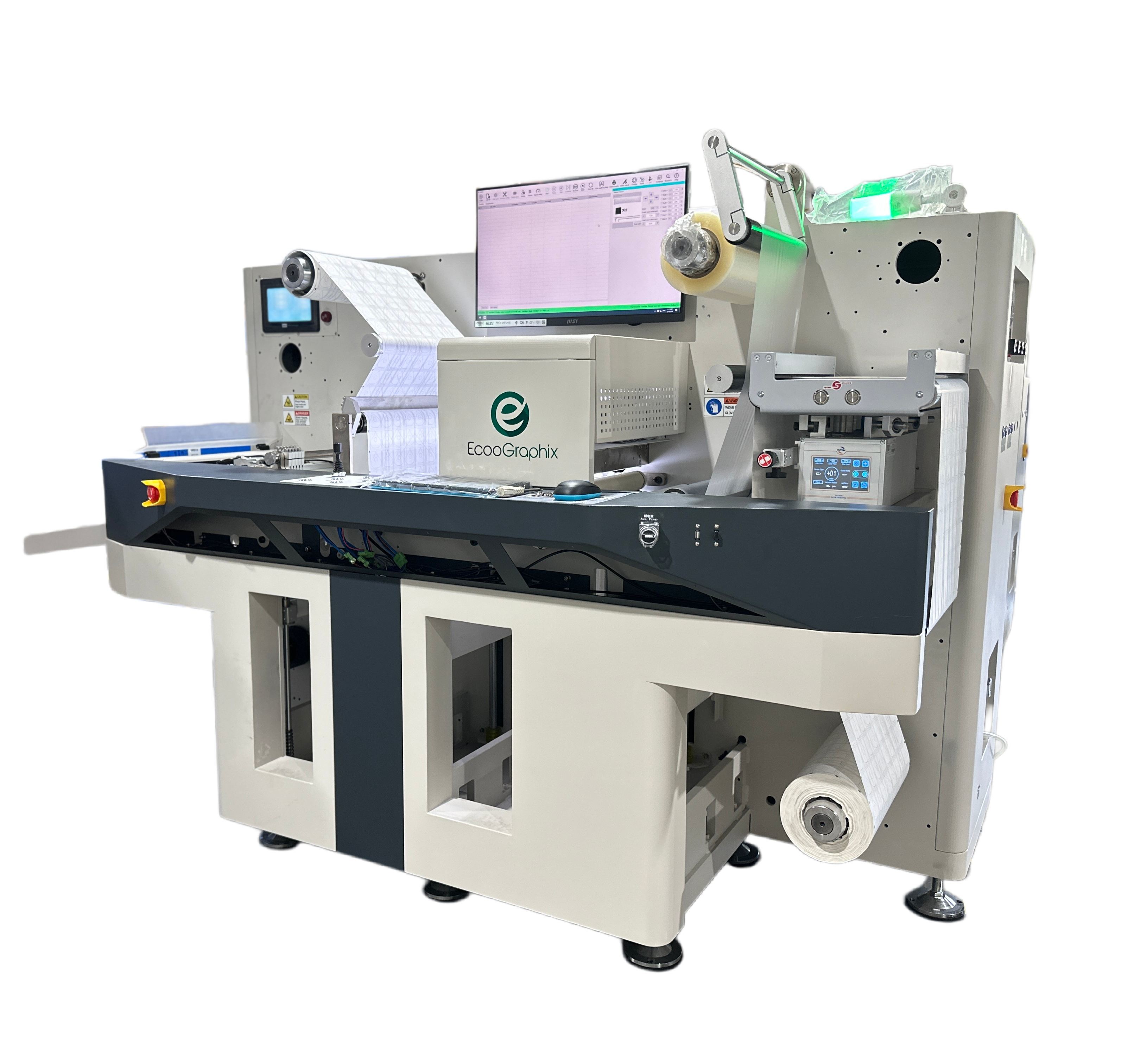

330mm Digital Roll Label Motor Blade Die Cutting Machine

LSC E has an automatic order changing function which can meet the needs of customers with small batches and multiple samples. The cutting distance can be automatically adjusted according to the file, greatly facilitating user operation. At the same time, it can be used online with label printers such as Zebra/Epson/VIP, solving users' die-cutting work with one click.

LSC-E digital label die-cutter system is collected laminating, die-cutting, slitting and rewinding on one, it is the best solution for label finishing system.
330mm Digital Roll Label Motor Blade Die Cutting Machine

Model

Ecoo-LSC-E

Blade dropping mode

Solenoid

Blade depth adjustment

Manual rotate

Technology

Blade dropping mode Cluth

Cut mode

Roll to roll fly

Max. media roller

diameter 500mm

Cutting speed

9m/min(4cmx15cm)

Cutting precision

0.1mm(repeat)

Media width

100-350mm

Max.label width

330mm

Max.label length

500mm

Cutting tracking

Single eye mark/ double eye mark/ CCD Carmera

Cutting blades

4 pcs

Slitting blades

(standard)5 PCS, max.15pcs

Rewinder qty

1 set 3"

Machine size (W*D*H)

1540×1005×1636mm

Machine weight

980kgs(approx.)

Power

220VAC2000W

Data transfer port

USB2.0/Ethernet10/100Base-T/GPIO

File format

PLT,DXF,PDF

Other functions and device

Auto adjust blade distance｜Auto job change(digital number/QR code)

Web guide｜Auto optimize file and set drop point｜Auto tension adjustment

Waste removal｜Counter cutting jobs｜Automatic file import ｜Lamination system

Options

Waste discharge interruption shutdown｜Film liner remove｜Waste removal heating

Sheet cutter(individual)｜Auto change sheet cutting job｜link with printer parts

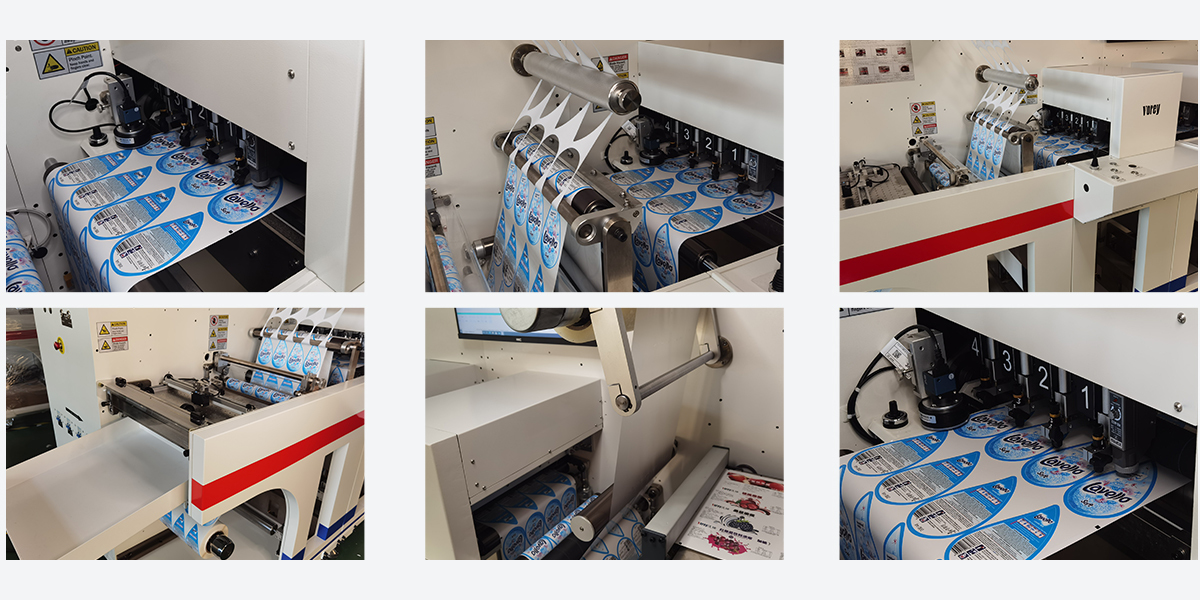

Product Details:

High precisions feeding system

Utilize the ultrasonic web-guide system,

it makes sure the feeding perfectly.


2. Cold laminating

It has cold laminating function, your label will be bright and perfect.

The back liner removal is optional.

3. Digital die-cutting system

LSC E utilizes high precision screw transmission system.

Max soeed can be 9m per minute. Individual control for the 4 heads,

combining with the function of auto adjust the heads distance,

to make the every single head on or off.

4. CCD identify system

The CCD camera position and identify system,

can recognize the sequence,

to reach the function of changing file and

cutting next graphics automatically.

5. The waste removing system

Dual mechanical force expansion control, multi-angle waste

discharge frame, can uniformly remove waste,

avoid uneven strength caused by intermittent waste discharge,

make the product clean and tidy.



6.Built-in sheet cutting system

Optional built-in PC350 slitter to realize wired cutting and

synchronous die-cutting and sheet cutting.
