Specifications
Brand Name :
ECOOGRAPHIX
Model Number :
T1600MQ
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
30DAYS
Packaging Details :
Standard Export Packing
Printing Plate Size :
1630x1325mm
Working Speed :
22 plates per hour
Min.Plate size :
650mm x 550mm
Machine size :
(L)236×(W)191×(H)122(cm)
CTP plate type :
830nm Thermal CTP aluminum plate
Resolution :
2400/2540dpi
Description

Wide Format A0 Size Offset Printing CTP Plate machine Factory


1. Application

Wide format CTP bridges the gap between digital design and traditional large-scale offset printing, making it economical to produce high-quality, large-format materials efficiently.


EcooGraphix VLF(Very Large Format) Thermal CTP Machine T1600S can be used for A0,B0 paper size Posters or Wall-charts , Large Books, catalogue, yellow pages, packaging processing and plate-making center etc. , with the output speed 14 -19 plates per hour.

Firstly , the printing design files are made on computer by the RIP and Workflow software, and then the files are sent to the CTP . The file images are scanned by the lasers (830nm thermal laser or 405nm UV laser) to the aluminum CTP plates. The laser scanning hardens the photosensitive coating on the CTP plate.

Then the CTP plate goes through the CTP processor, the developer chemical is inside the CTP processor, to wash out the non imaging area of the CTP plate. The CTP plate will be quickly dried in the CTP processor after washing .

Finally the CTP plates are put on the offset press machine , for printing jobs.



2. Main features:

Maximum Plate Size: 1,680×1350mm

Features: Less manpower, high stability and perfect output quality.

UV plate and thermal plate are available for you to lower production cost.

Automatic plate loading and unloading can improve your plate-making efficiency.

Combined with autoloader, processor and stacker, EcooGraphix VLF CTP series can achieve full-automatic printing.
Only one operator is needed to finish the whole output process.

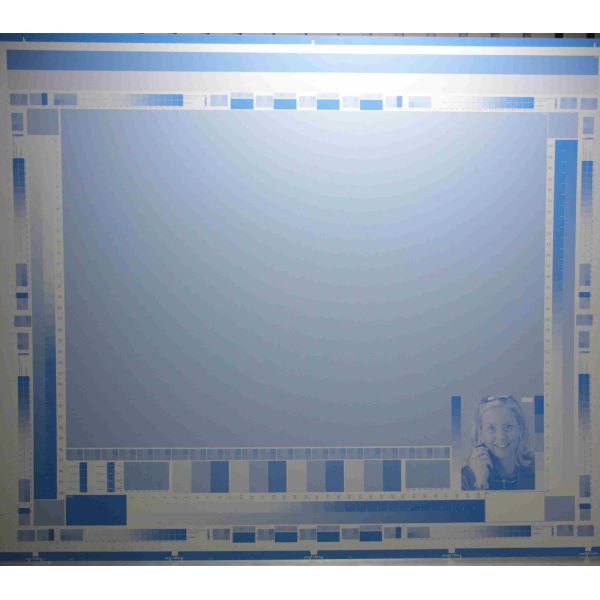

3.Application and Sample:

Wide Format A0 Size Offset Printing CTP Plate machine Factory

4. Technical Specifications:

Model T-1600QM
Exposing Method External Drum
Image System 825nm laser

Output Speed

 22 plates/hour
　 1630mm x 1325mm / 2400dpi
Plate Sizes Max.1680mm x1350mm;
Min. 650mm x 550mm
Exposing Size Max. 1680mm x 1336mm
Media Type Positive/Negative Thermal CTP Plate or Non Chemical Plate
Plate Thickness

0.15mm to 0.30mm or 0

27mm t

0.40mm(alternative)
Resolution Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi and 1270dpi. Variable high resolution option: maximum up to 10800dpi at fast scan direction. 12800DPI is available upon requirement
Repeatability ±0.01mm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface Optical Fiber
Plate Loading semi automatic(alternative autoloader system)
Net Weight 1800kg
Machine Size
(WxLxH)mm		 2400x1430x1110
Power Supply 3 phase 380V, power Consumption(peak value):5.5KW

Operation Env

ronment

 recommended temperature:21-25℃;allowed temperature :15-30℃, humidity:<70%RH

Model T-1600S T1600SX
Exposing Method External Drum
Imaging System 64-channel 256-channel
Discrete 830nm laser diode
Output Speed 16plates/hour 25 plates/hour
1470mm x 1180mm / 2400dpi
Plate Sizes Max.1470mm x1180mm; Min. 400mm x 400mm
Media Type Thermal CTP plate
Plate Thickness 0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative)
Resolution

2400dpi,1200dpi optional: dual resolutions 2,400dpi and 1,

Standard: dual resolutions 2,400dpi and 1,200dpi, or 2,540dpi and 1,270dpi (Option)

Variable high resolution option: maximum up to 10,000dpi at fast scan direction
Repeatability 0.01mm (continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface USB 2.0 or USB3.0(USB2.0 is recommended) Optical Fiber ( Fiber Way )
Plate Loading Manual or automatic with autoloader
Net Weight 1400kg
Machine Size 2,355×1,910×1,217 mm ( L×W×H )
Power Supply Single phase: 220V, Max power (Peak value): 5.5KW
Operation Environment recommended temperature:21-25℃;allowed temperature :15-30℃, humidity:<70%RH
