Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
Specifications
Brand Name :
ECOOGRAPHIX
Model Number :
ECOOSPARK
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 set per year
Delivery Time :
30-45days
Packaging Details :
wooden cases
Function :
foil stamping, spot varnishing
Format option :
288/330/435mm
Production time :
45 days
Printing heads :
Konica minolta
Max. solution :
1440*360 dpi
Warranty :
3 years
Description

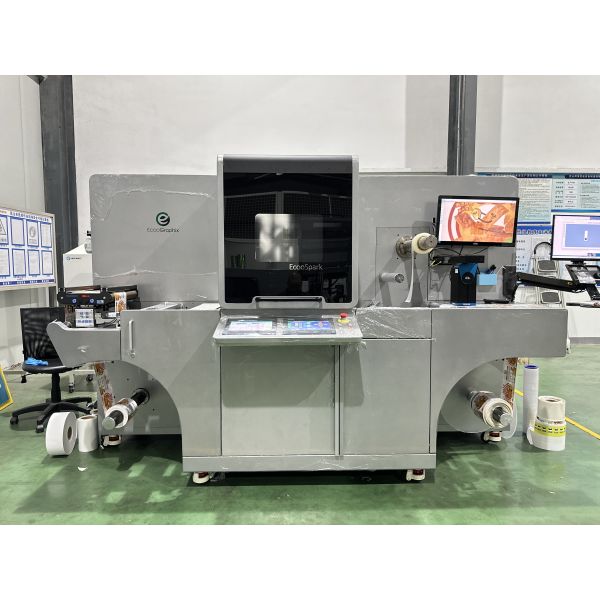

Digital Label Embellishment Machine
Intelligent Sticky Label Roll Digital Finish Machine - ECOOSPARK
The EcooSpark integrates various digital enhancing processes including digital foil stamping, digital varnish application, and 3D crystal bright effects. This plate-free system cooperates with traditional printing, digital printing, and other post-processes to enable unlimited label embellishment designs. It represents a high-efficiency, low-cost, high value-added solution that supports customization from small to long production runs.
H.S. Code: 8443322900
Certification: CE certificate or similar certification available
Industry Leading Digital Label Embellishment Capabilities
  • Digital spot varnishing
  • Digital foil stamping
  • 3D shining effects
  • Digital embossing
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
Technical Specifications
EcooGraphix Ecoospark Digital Label Foil Stamping and Varnishing Machine
Specification Ecoospark 330 Ecoospark 288
Model Ecoospark 330 Ecoospark 288
Printing Technology UV Piezo DoD (drop on demand)-inkjet
Resolution 360×360 dpi, up to 1440×360 dpi
Printing Speed 10m/min - 60m/min (depending on polymer layer thickness)
Variable Image System PDF, optimized PDF, Optional barcode system
Supported Image Standards PDF, PDF/VT, TIFF, JPEG, BMP & other database files
Substrates Offset, Digital, Plastics, Laminated and coated substrates
Printing Image Width 330mm × 10m (Length) 288mm × 10m (Length)
Polymer WB-DS-Clear Polymer
Polymer Layer Thickness From 10 up to 200 microns
Ink Curing Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder Diameter Max. 700mm, Core 76mm
Rewinder Diameter Max. 700mm, Core 76mm
Substrates Thickness 30-400 micron
Substrates Width Max 330mm Max 288mm
Press with Foil Station Dimensions 3500mm × 1900mm × 1800mm (L×H×W)
Operating Environment Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity
Electrical Requirements Voltage: 3×380, ±5% 3 phases +G+N; Frequency: 50/60 Hz; Current: Avg. 25 Amps
Weight 3000kg 2700kg
Available Options

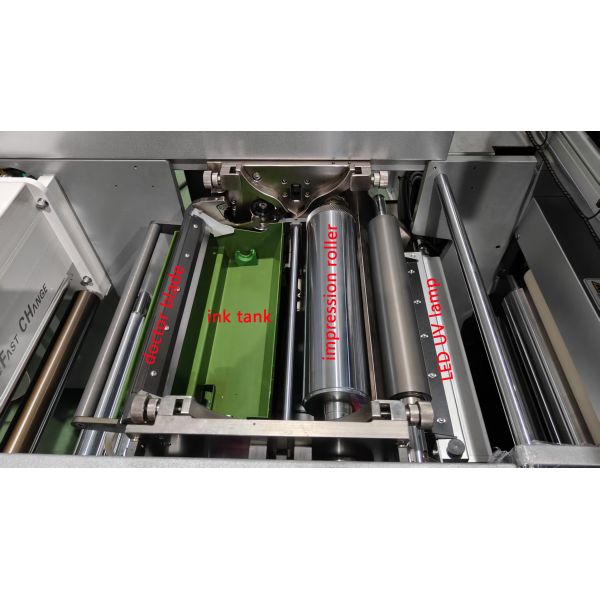

Flexo varnishing
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
Laminating function
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
Two inkjet printing units (one pass for varnishing and foil)
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
Machine Highlights

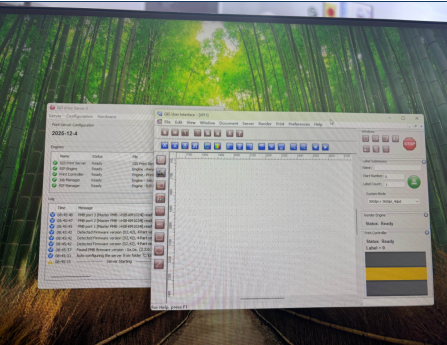

Global Inkjet Solution (GIS) Software: Features inkjet control and main board technology. As the only Chinese manufacturer using GIS software, we provide one of the world's top three software solutions, all originating from the UK. Unlike other Chinese suppliers who use translated Chinese software, our English-originated software offers superior detail quality, robust performance, mature functionality, and user-friendly operation, proven by customer satisfaction.
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty

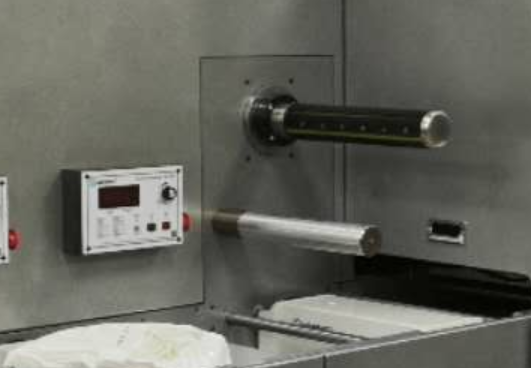

Unwinding and Pre-treatment Units: Web guide system with automatic deviation correction. Includes dust removal to clean printing materials and corona treatment for surface preparation.
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
Control Server and Display Screen: Mitsubishi electric control server and touch screen for managing label roll processing. Includes imported control server and touch screen from Germany for manual adjustment after automatic registration.
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty

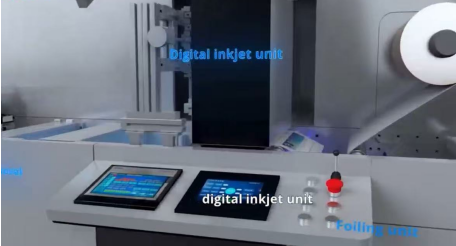

Inkjet Printing Unit: Utilizes KM1024i printing heads with built-in auto wash system to clean printing heads, ensuring extended operational life of approximately 2 years.
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty

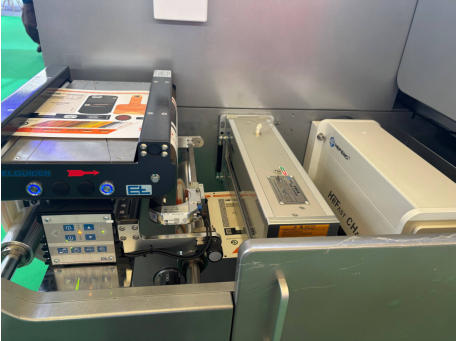

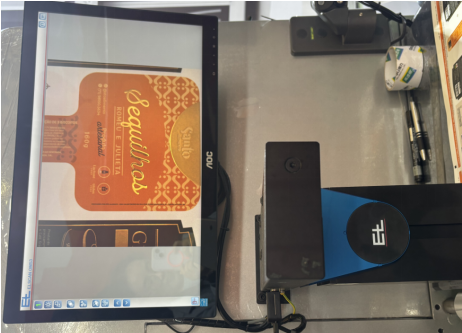

Camera Inspection System: ELSCAN scanning camera and screen for real-time printing performance monitoring. Supports narrow web applications up to 580mm width with 100×75mm field of view. Features patented "dualView" technology with 2×5 megapixel cameras, superior image quality, brilliant color representation, and comprehensive scan functions for controlled web monitoring.
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty

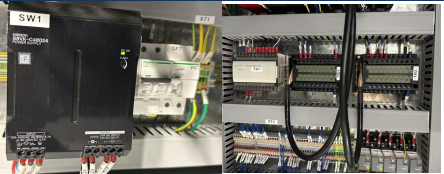

Power and Electrical Systems: Omron power supply and Schneider electric mechanisms for reliable operation.
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
Core Technology

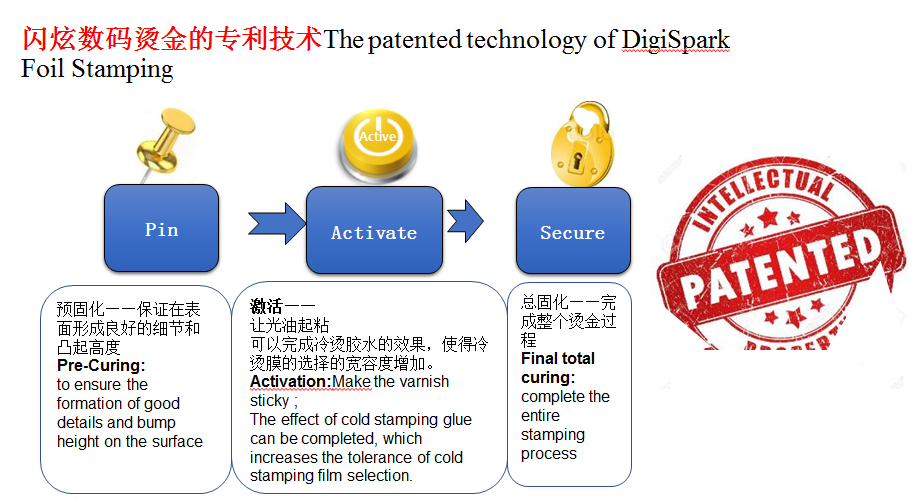

Pre-cure UV Technology
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
Machine Performance Examples
3D Shining and Spot Varnishing: Varnish drop-on-demand application directly from computer to label. Single pass allows 10-180 micron varnish coating thickness.
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
Embossing: Utilizes unique UV inkjet printing technology to create crystal clear polymer varnish that adheres tightly, maintains stable properties, full shape definition, and durable compliance. Embossed characters and graphics permanently retain clear outlines without deformation.
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty

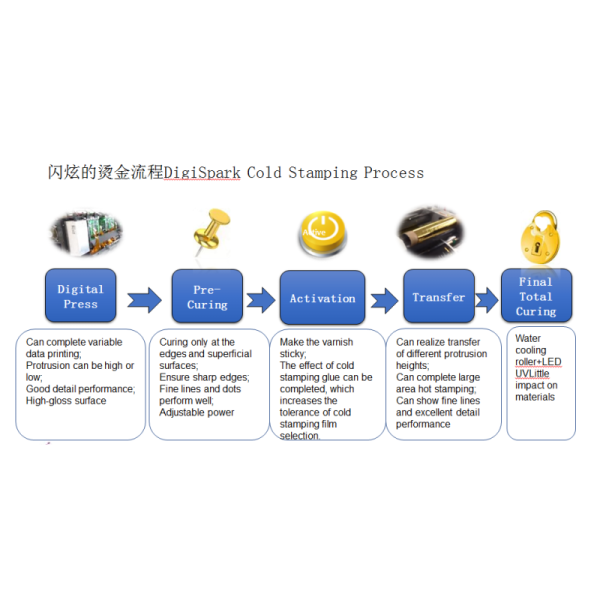

Cold Foil Stamping: Digital cold foil workflow delivers high precision with minimal waste. Foil adheres to varnished areas, allowing foil stamping on OPP/PET film with matching height to varnish application.
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
Braille Printing: Minimum varnishing layer of 10μm achievable in one pass with normal UV varnish. Maximum thickness of 150μm with normal UV varnish. For braille printing applications common in European markets, specialized UV varnish enables 170μm height in one pass, with two passes achieving maximum 350μm height.
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty

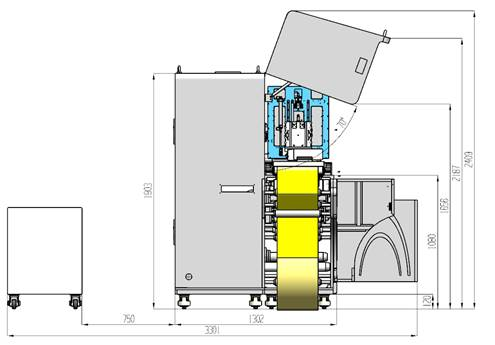

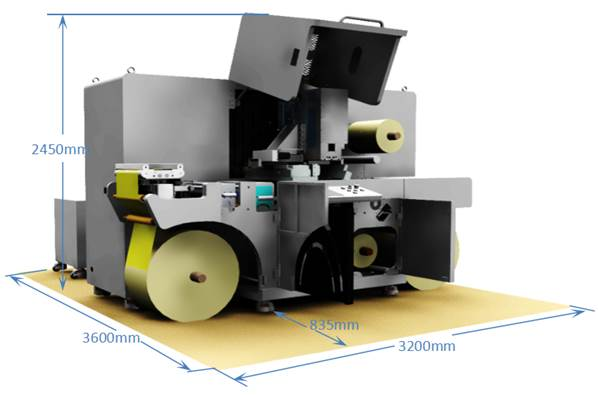

Installation Requirements
Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty Digital Label Embellishment Machine with No Plate Required 1440*360 dpi Resolution and 3 Years Warranty
