Specifications
Brand Name :
Ecoospark
Model Number :
DS288/330/450
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
$180000
Payment Terms :
T/T
Supply Ability :
200 sets per year
Delivery Time :
30 -60 days
Packaging Details :
wooden case with protctive fracture
Speed :
Max. 60 m/min
Resolution :
360*360 dpi, up to 1440*360 dpi
Format :
288/330/450mm
Printing heads :
Konica Minolta
Varnish layer thickness :
10-150 micro by single pass
Curing :
UV-LED Pre-curing/Full curing by UV-LED
Description
Label Digital Embellishment Machine for Roll-to-Roll Processing

This specialized finishing machine enhances printed label rolls with foil stamping and varnishing capabilities, transforming standard labels into premium products.

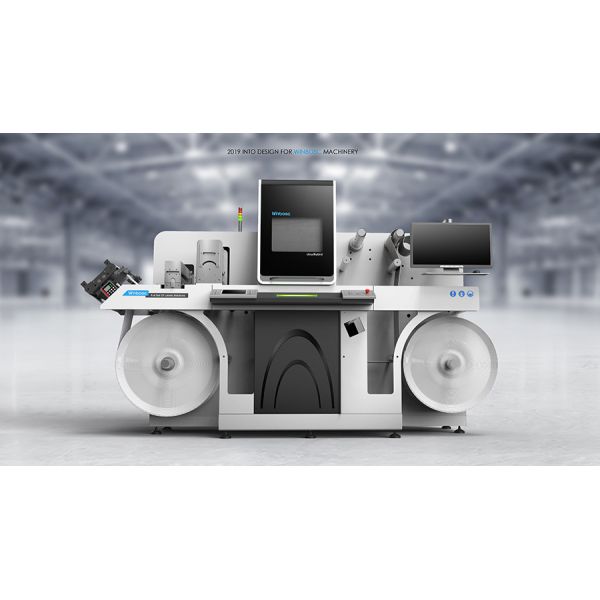

ECOOSPARK Digital Embellishment Machine
Advanced Digital Finishing Solution

The Ecoospark represents a breakthrough in digital embellishment technology for roll-to-roll label processing. This fully digital system delivers cold foil stamping and precise varnishing using drop-on-demand technology, offering unmatched flexibility and rapid job turnover.

Key Features
  • Konica Minolta printing heads for superior precision
  • Varnish layer thickness range: 10-150 microns per pass
  • Braille printing capability (300 micron relief via two-pass processing)
  • Multi-layer effects including 3D case gold and braille printing
Operational Advantages
  • Unlimited design possibilities
  • Fast setup time with no tools required
  • Automatic varnish ink cleaning system
  • Immediate varnish consumption calculation
  • Optional laminating or flexo coating
  • No special treatment needed for overprinting
Specialty Finishing Effects
  • Spot UV Varnishing
  • Digital Cold Foil Stamping
  • 3D Emboss Shining
  • Variable Data Processing
  • Braille Printing
Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness
Finishing Effect Showcase
Effect Type Example 1 Example 2
Spot varnishing Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness

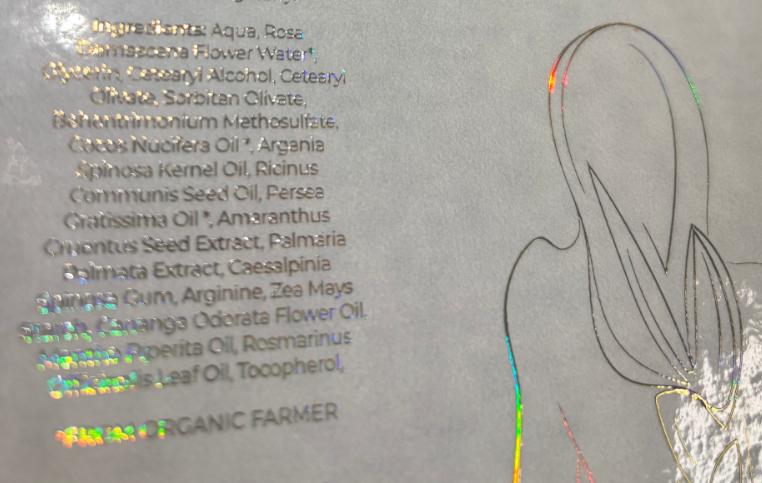

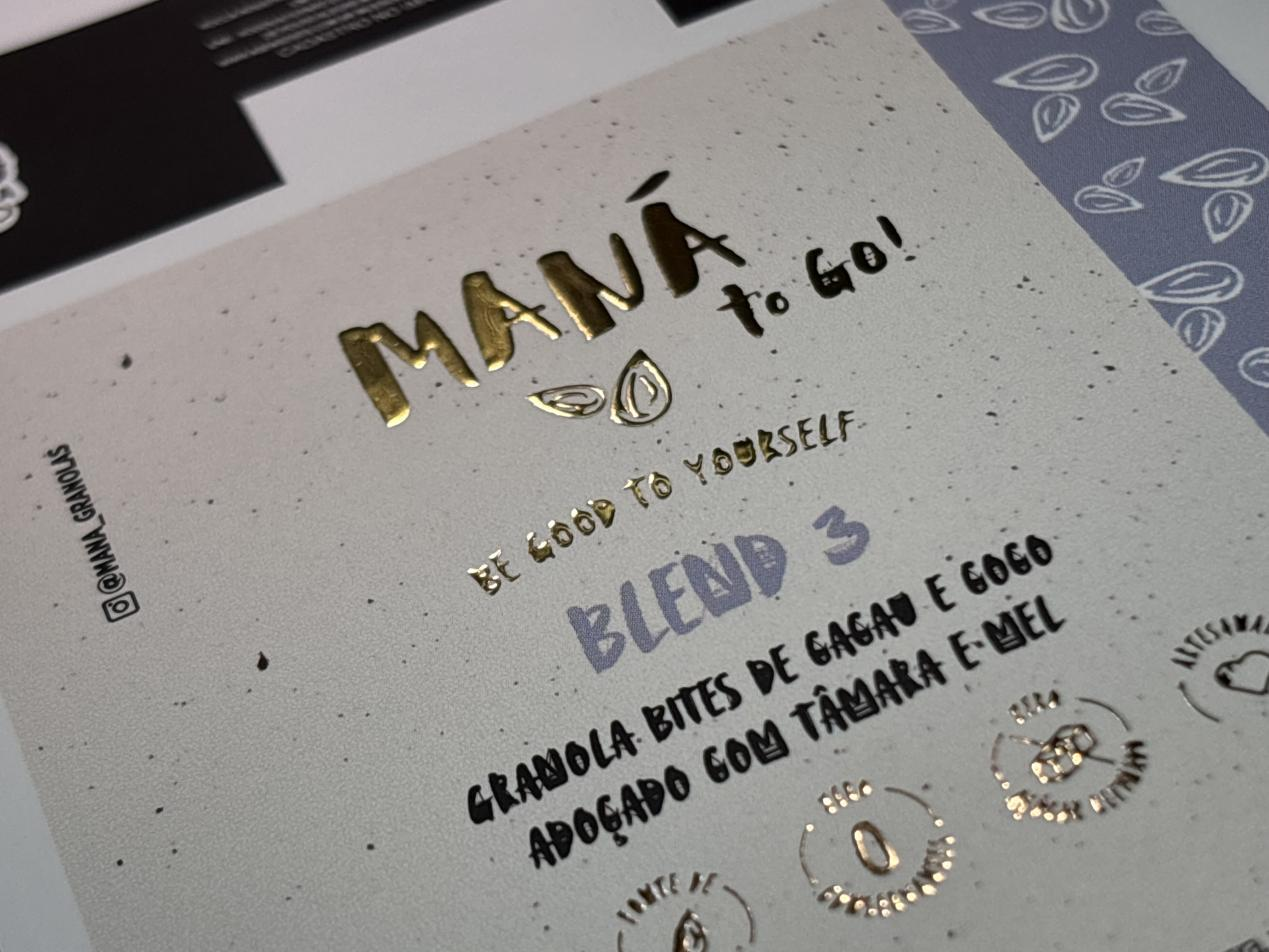

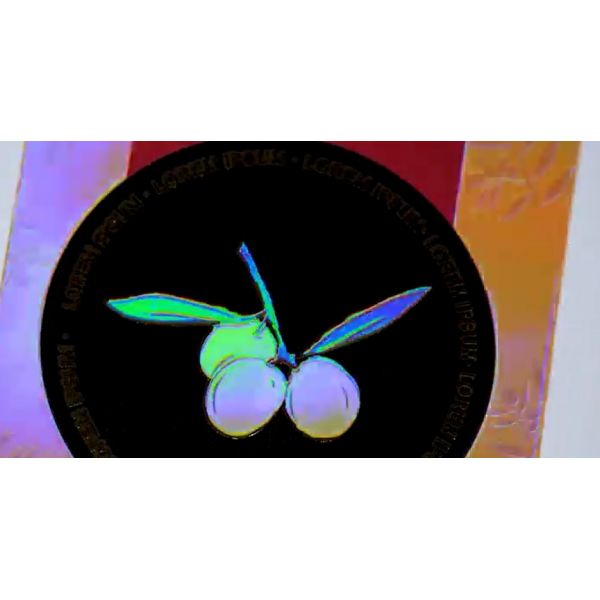

Cold foil stamping Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness

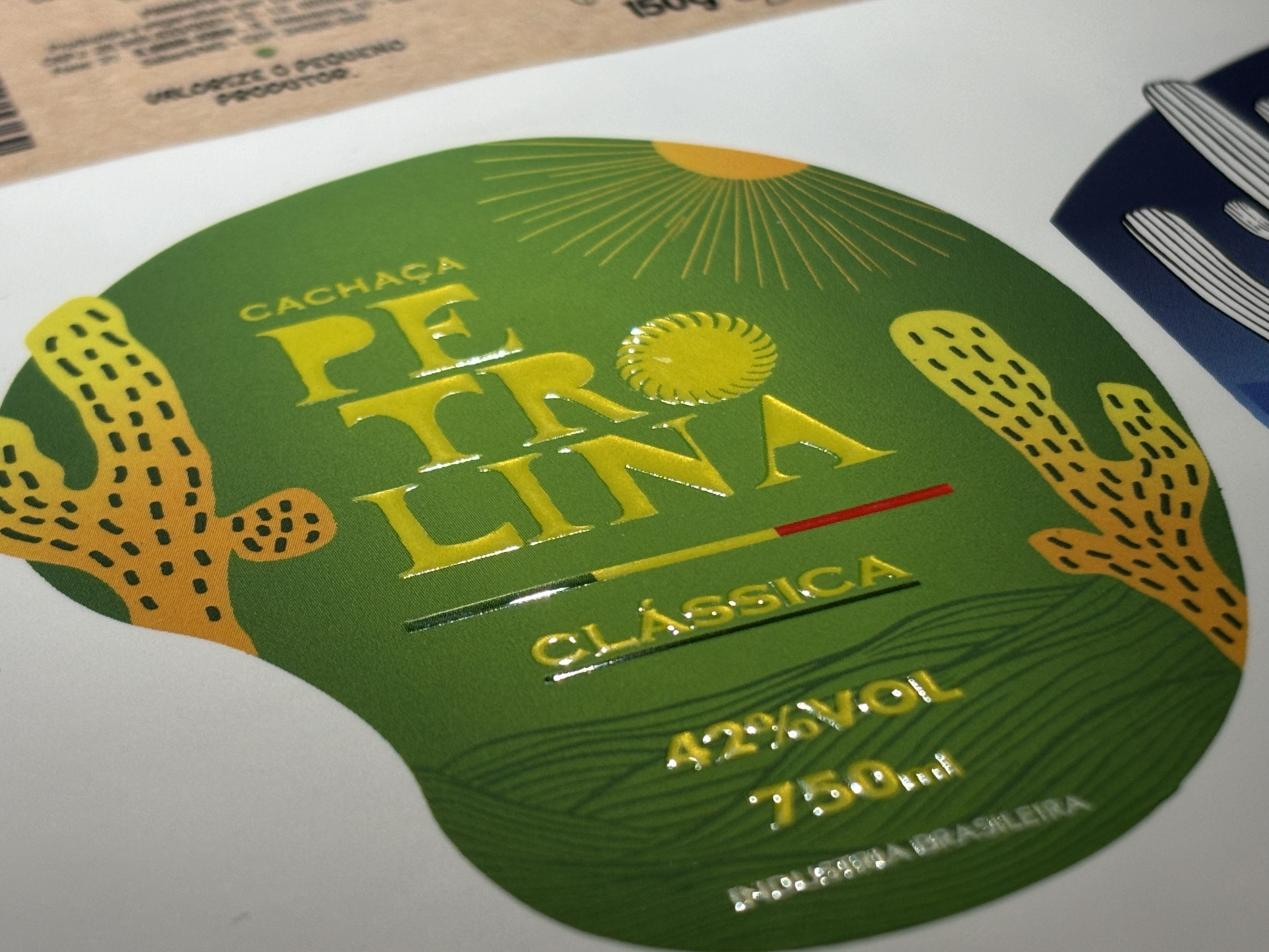

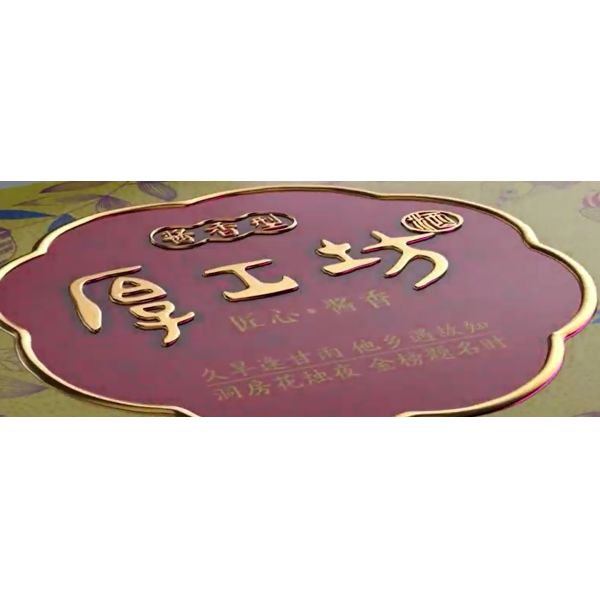

3D embossing Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness

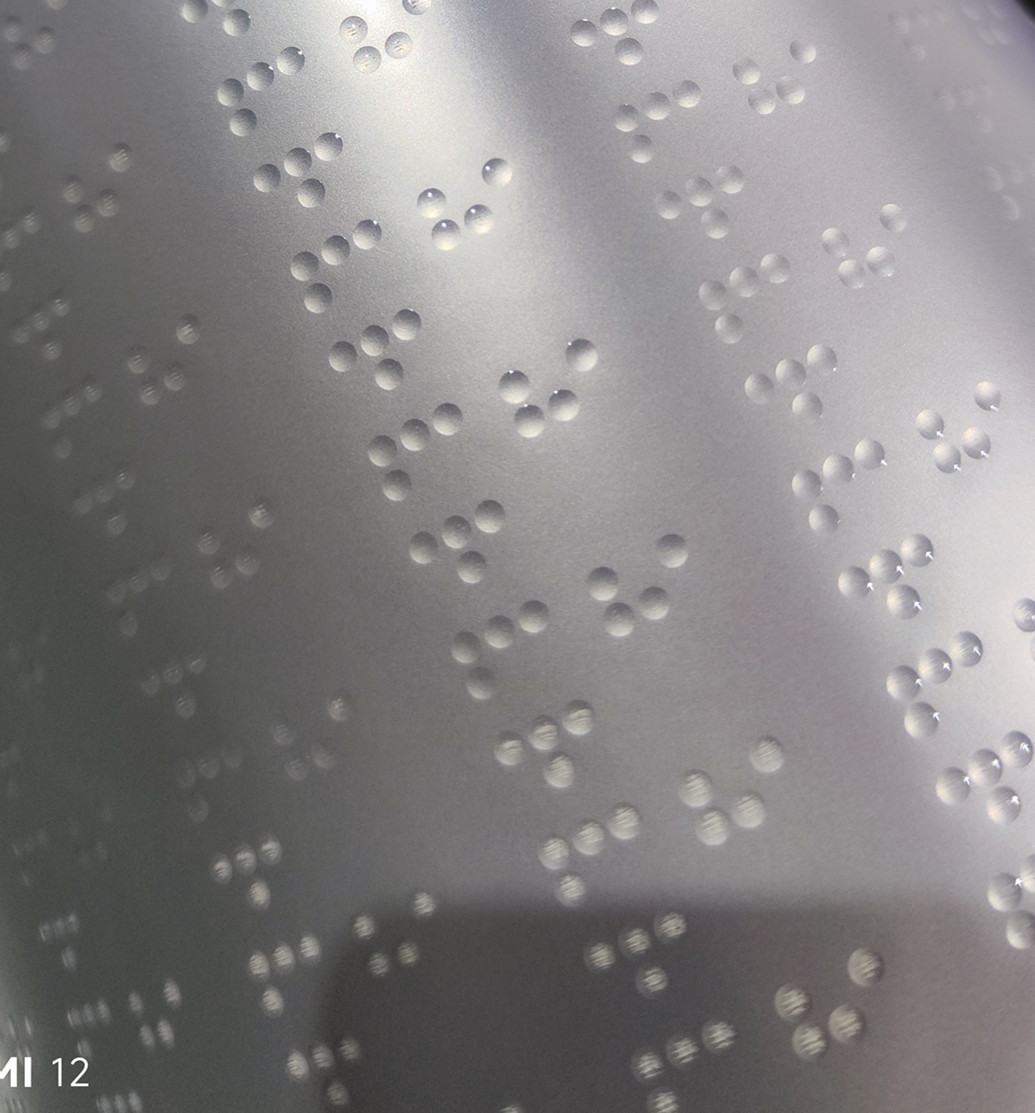

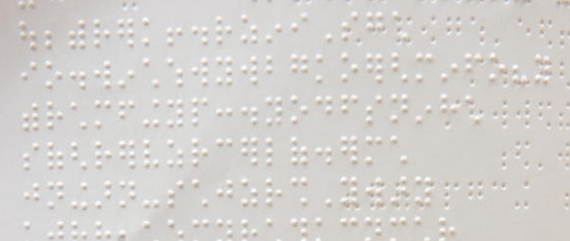

Braille Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness
Technical Specifications
Specification Ecoospark 330 Ecoospark 288
Printing Technology UV Piezo DoD (drop on demand)-inkjet
Resolution 360*360 dpi, up to 1440*360 dpi
Printing speed 10m/min - 60m/min (dependent on polymer layer thickness)
Variable Image system PDF, optimized PDF, Optional barcode system
Supported image standards PDF, PDF/VT, TIFF, JPEG, BMP & other database files
Substrates Offset, Digital, Plastics, Laminated and coated substrates
Printing image width 330mm * 10m (Length) 288mm * 10m (Length)
Polymer WB-DS-Clear Polymer
Polymer layer thickness From 10 up to 200 microns
Ink curing Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder diameter Max. 700mm, Core 76mm
Rewinder diameter Max. 700mm, Core 76mm
Substrates thickness 30-400 micron
Substrates width Max 330mm Max. 288mm
Press with Foil station Machine dimensions (L*H*W): 3500mm*1900mm*1800mm
Operating environment Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity
Electrical requirements Voltage: 3*380, ±5% 3 phases +G+N; Frequency: 50/60 Hz; Current: Avg. 25 Amps
Weight 3000kg 2700kg
