4 Clamp Elliptical EVA Book Binding Machine with Four Book-Clamp Chains Eco-Friendly Design and Advanced Upper-Sealing Mechanism
4 Clamp Elliptical EVA Book Binding Machine with Four Book-Clamp Chains Eco-Friendly Design and Advanced Upper-Sealing Mechanism
Specifications
Brand Name :
Ecoographix
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1
Price :
$26000-28000
Payment Terms :
L/C,T/T
Supply Ability :
200 sets per year
Delivery Time :
30 days
Packaging Details :
wooden case
Description

​

BRIEF INTRODUCTION

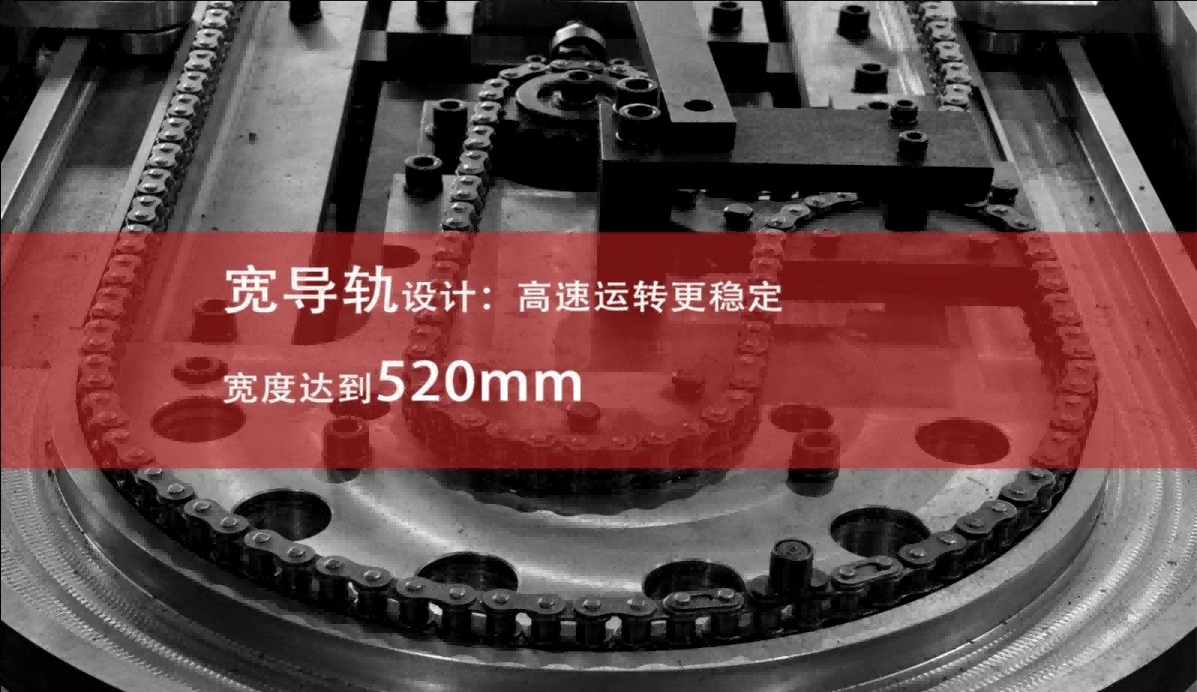

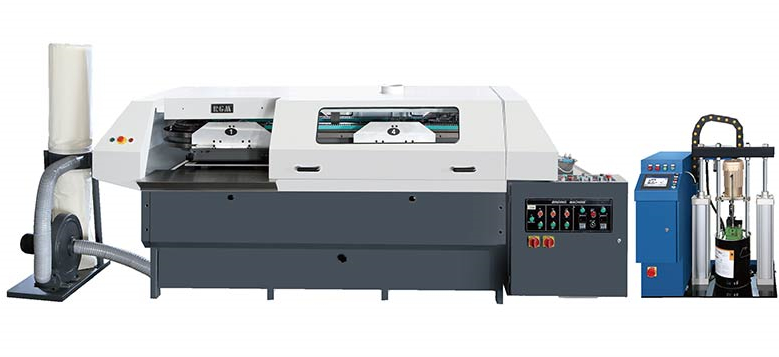

The TBT50/4D elliptical perfect binder is an eco-friendly perfect binder designed for the 21st century. It features a drive system with four book-clamp chains, which eliminates the excessive drive inertia and intermittent malfunctions between shafts commonly found in traditional disc-type perfect binders.

The machine applied EVA glue binding only, no option of PUR binding or back stripping.

At present, it is the most advanced one among the international similar machines, and the upper-sealing clamp mechanism has won several national patent.

4 Clamp Elliptical EVA Book Binding Machine with Four Book-Clamp Chains Eco-Friendly Design and Advanced Upper-Sealing Mechanism

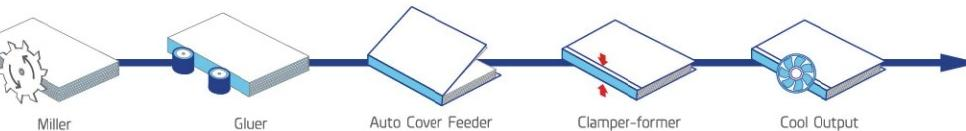

WORKING PROCEDURE


4 Clamp Elliptical EVA Book Binding Machine with Four Book-Clamp Chains Eco-Friendly Design and Advanced Upper-Sealing Mechanism

This machine is offered the book core by manpower, and au-tomatically finishes 10 procedures below:
1. Milling back;
2. Opening groove;
3. Back mucus coating;
4. Side mucus coating;
5. Cover and book core compossing;
6.Cover impressing7.Cover packing;
Finshed-product output8.
9. Book spine pressing;
10. Cooling, till final nice products.

tECHNICAL DATA

PUR glue spraying device, with back glue and side glue at the same time

Optional large cover table, cover length up to 640mm.

4 Clamps PUR Automatic Book Binding Machine

Binding Size

Max:450X320mm ; Min:150X105mm

Binding thickness

2-50mm

Binding speed

Max:2000 Books/ Hour

Cover Size

Max. 640*450mm

Cover Weight Range

Normal Paper 81.4 to 302.4 gsm Coated Paper 104.7 to 348.9 gsm

Power required

13Kw

Weight

2100Kg

Dimensions

3100x1300 x1250mm
aPPLICATION


4 Clamp Elliptical EVA Book Binding Machine with Four Book-Clamp Chains Eco-Friendly Design and Advanced Upper-Sealing Mechanism

This machine integrates multiple advanced technologies including variable frequency speed control, PID temperature regulation, photoelectric recognition systems, and automatic fault detection. Equipped with imported electrical and pneumatic components, it delivers exceptional reliability, user-friendly operation, and easy adjustment. The integrated paper suction system further enhances its functionality, making it suitable for both wired and wireless binding processes. It is an ideal solution for wireless or wired binding applications in small-to-medium printing facilities as well as professional printing institutions.

4 Clamp Elliptical EVA Book Binding Machine with Four Book-Clamp Chains Eco-Friendly Design and Advanced Upper-Sealing Mechanism

Heavy-duty type:

Major characteristics of double column-guided twin-cam upper-sealing mechanism

1.Strong wearing resistance

2.High precision
3. Great clamp force
4. Steady top down
5. Indeformable front andbackclamp plates

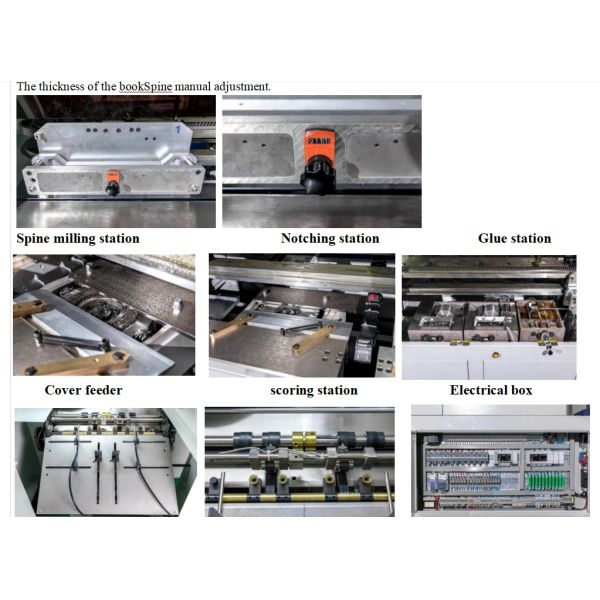

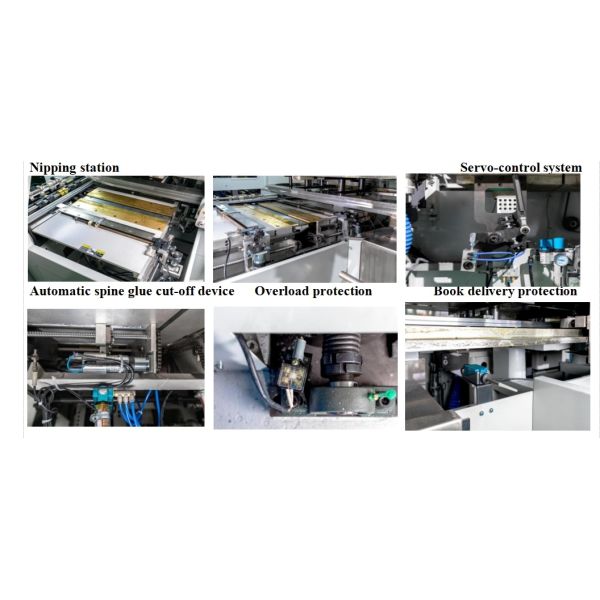

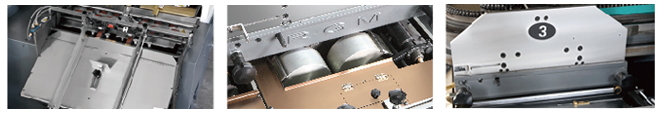

mAIN PARTS


4 Clamp Elliptical EVA Book Binding Machine with Four Book-Clamp Chains Eco-Friendly Design and Advanced Upper-Sealing Mechanism

​4 Clamp Elliptical EVA Book Binding Machine with Four Book-Clamp Chains Eco-Friendly Design and Advanced Upper-Sealing Mechanism
