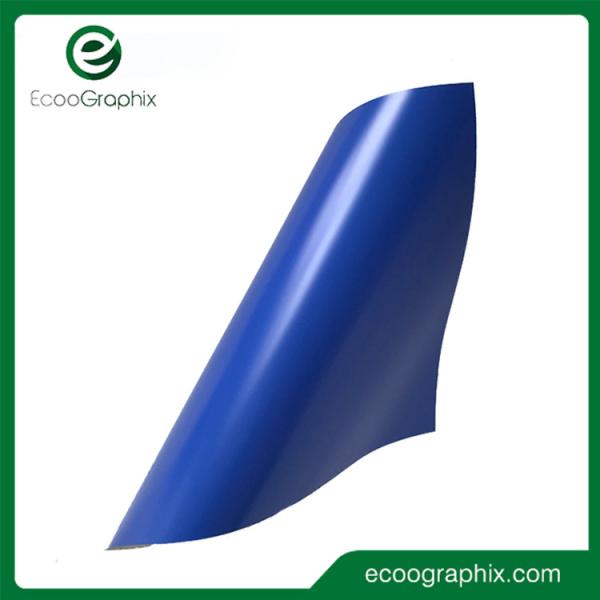

Long Runs Offset Printing Double Layered Positive Aluminum Thermal CTP Plate
Long Runs Offset Printing Double Layered Positive Aluminum Thermal CTP Plate
Long Runs Offset Printing Double Layered Positive Aluminum Thermal CTP Plate
Long Runs Offset Printing Double Layered Positive Aluminum Thermal CTP Plate
Long Runs Offset Printing Double Layered Positive Aluminum Thermal CTP Plate
Long Runs Offset Printing Double Layered Positive Aluminum Thermal CTP Plate
Long Runs Offset Printing Double Layered Positive Aluminum Thermal CTP Plate
Long Runs Offset Printing Double Layered Positive Aluminum Thermal CTP Plate
Specifications
Brand Name :
EcooGraphix
Model Number :
ECOO-ED
Certification :
CE
Place of Origin :
China
MOQ :
1000 Square Meters
Payment Terms :
L/C, T/T
Supply Ability :
2,000,000 Sqm Per Year
Delivery Time :
30 Days
Packaging Details :
Standard Export Packing
Price :
Negotiable
Material :
Aluminum
Type :
CTP Plate
Style :
Positive
Transport Package :
Export Standard Packaging
Specification :
Gauge: 0.15mm; 0.30mm
Long Impression :
400,000Unbaked； 1,000,000Baked
Exposure Energy :
120 - 150 Mj/Cm2
Resolution :
1% - 99% @400 Lpi
Coating :
Blue
Description
Long Runs Offset Printing Double Layered Positive Thermal CTP Plate

1. Application
The revolutionary ECOO-ED double-layered thermal CTP plate combines advanced chemical-resistant technology with high sensitivity to deliver exceptional long-run performance without baking. This innovative dual-layer construction outperforms conventional single-layer plates by offering superior resistance properties while maintaining compatibility with both AM and FM screening technologies, making it the ideal solution for high-quality commercial and packaging printing.

2. Key Advantages

  • Extended run length without ablation: Achieves up to 100,000 impressions for conventional ink and 50,000 impressions with UV ink

  • Proven reliability: Mature technology with excellent stability and wide processing tolerance

  • Universal compatibility: Works seamlessly with most major plate setters, processors, and chemical solutions

  • Superior ink resistance: Specially formulated coating withstands both conventional and UV inks

3. Technical Features

  • Advanced positive-writing thermal plate technology

  • Patented double-layer system with chemical-resistant coating

  • Premium European aluminum substrate for consistent quality

  • Non-ablative coating maintains image integrity

  • Dual screening capability: Perfect for both AM and FM screening applications

  • Broad equipment compatibility: Optimized for use with all major plate setter brands

The ECOO-ED represents the next generation of thermal CTP plates - delivering uncompromising quality, exceptional durability, and reliable performance for the most demanding printing environments.

Specifications

General Information
Plate Model ECOO-ED
Plate Type Positive Thermal CTP Plate(Double Layer)
Application High-grade commercial and newspaper printing
Substrate Electrochemically Grained and Anodized Lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Coating Two-layer system, IR sensitive, positive acting
Gauge 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1280 mm
Plate intermix Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Press Runs Ordinary Ink: 100,000 to 200,000 impressions
UV Ink: 50,000 to 100,000 impressions
Exposing
CTP Plate-Making Machine
Plate setters		 Kodak: Trendsetter/Lotem/Magnus; Fuji: Javelin T9000HS
Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter
Screen: PT-R, Creo: Scitex
EcooGraphix Thermal CTP Tseries
Exposure energy 110 - 130 mJ/cm²
Spectral Sensitivity 800-850 nm - Peaks 830nm
Resolution 1-99% at 200 LPI
Image color Blue
FM capability 20 micron stochastic
Image color Blue-green to Pale Green
Developing
Processor All kinds of Brands.
Developer Kodak Gold Star or our developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec
Processing Speed 0.80 - 1.20 m/min
Storage and handling
Safelight Daylight handling
Shelf Life 12 months under recommended storage conditions

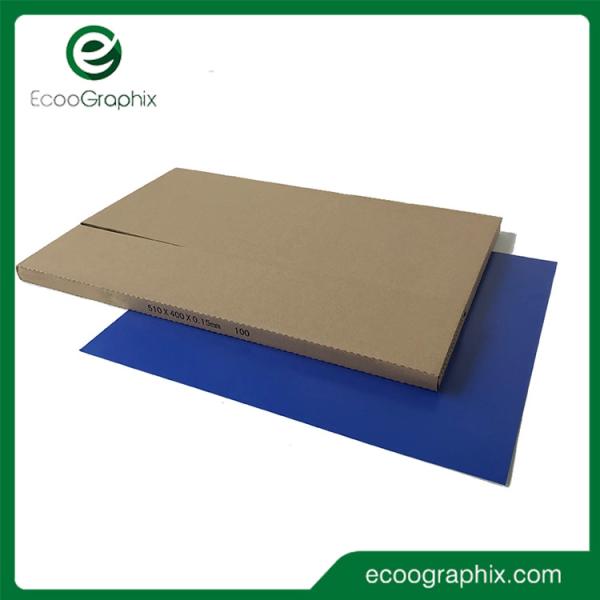

Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat, and humidity.
