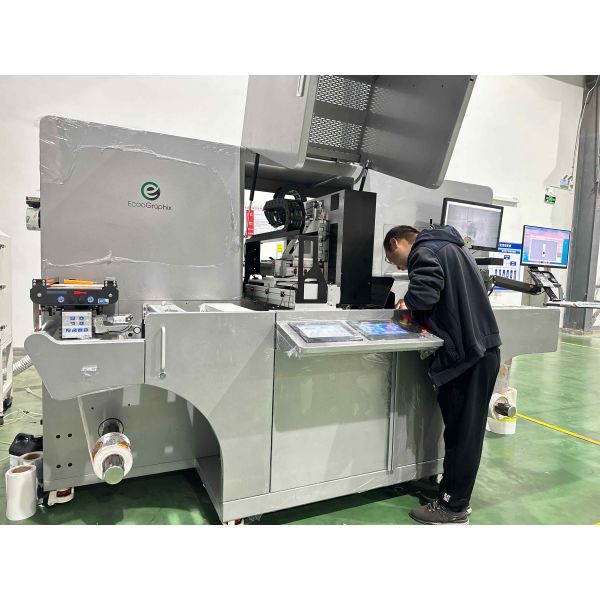

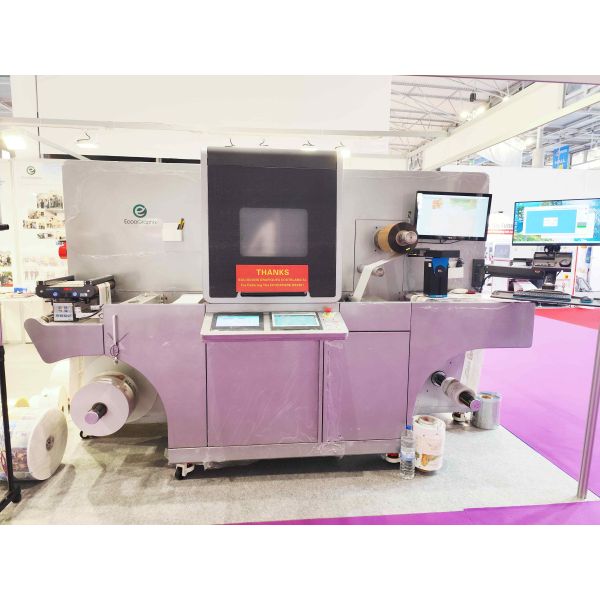

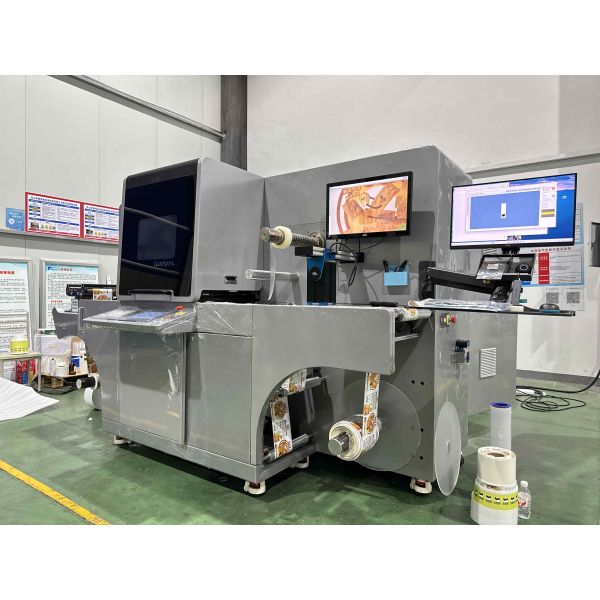

450mm Digital Label Post Press Varnish Printing Cold Stamping machine


1. Application
EcooSpark is the digital roll to roll label post press embellishment machine for spot UV varnishing,cold foil stamping,braillet printing,embossing embellishment and so on. It is the ideal digital equipment for HP Indigo,Xeikon,Screen Truepress and other similar digital printers.

2. Main features:
1)Full Sets of Mitsubishi servers;

2)HeFeng Corona Treatment;

3)Web guide and Monitoring System: E+L;

4) Full Led-UV curing system;

5) Printing Software: GIS UK;

6)Auto Cleaning System;

7) KM 1024i print head;

8) Multiple sensors for tention control.

Unlimited image variety, high resolution up to 1440X360 dpi;

*Top UV inkjet drop on head with printing width 288mm and extendable to 430mm;

*Speed up to 50m/min; varnish printing thickness up to 180um~350um;

*Reliable and cost effective parts and UV varnish supply ;

*Proven market success in Europe, North and South America, Asia and other countries,satisfaction guaranteed with professional service;

* CE certificate.

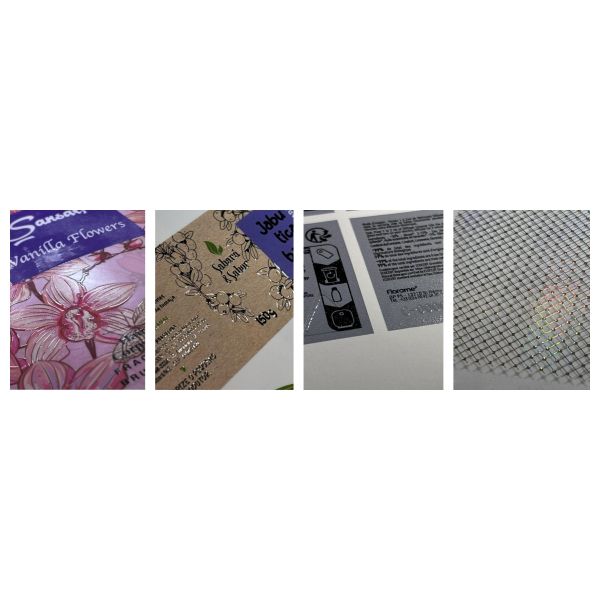

3.Application and Sample:



4. Technical Specifications:

Started in 2018, EcooSpark is the pioneer as the first digital varnishing and foiling machine with over 45 units installations worldwide by now. It is now the 5th generation. Simple design, robustness, reliability and state of art quality are core strengths. This machine can do UV spot varnishing, cold foil stamping, braille printing ,3D embossing and etcs, by KM print head and digital LED UV Inkjet technology. It is the ideal digital label post press embellishment machine for digital printer HP Indigo,Screen Trupress , Xeikon or other similars.

With about 20 years' exporting experience,we have many customers worldwide, such as OEM for Presstek/Mark Andy , and Sttark in USA,Beneco in Canada, Imaks and Olderi in Latvia, Focus Print Group in Australia,TSG in Mexico,Esen Graphics in Turkey and so on.We can provide customers reliable quality products with competitive prices.

3 Years warranty for the whole machine and print heads.
