High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing
High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing
High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing
High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing
High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing
High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing
High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing
High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing
High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing
High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing
Specifications
Brand Name :
ECOOGRAPHIX
Model Number :
SD1060
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500SETS
Delivery Time :
30DAYS
Packaging Details :
Standard Export Packing
Machine Size :
1046x272x193cm
Paper Thickness :
80g-500g
Max Sheet Size :
730mmx1060mm
Voltage :
380V/50HZ 13KW
Production Speed :
9500s/h
Gross Weight :
8000KGS
Description
B1 Spot UV Varnishing Full Coating Paper Processing machine with CE

EcooGraphix is a professional supplier of eco-friendly paper processing machines and paper products. Following the enterprise development mission of “Create Value for Customers”.

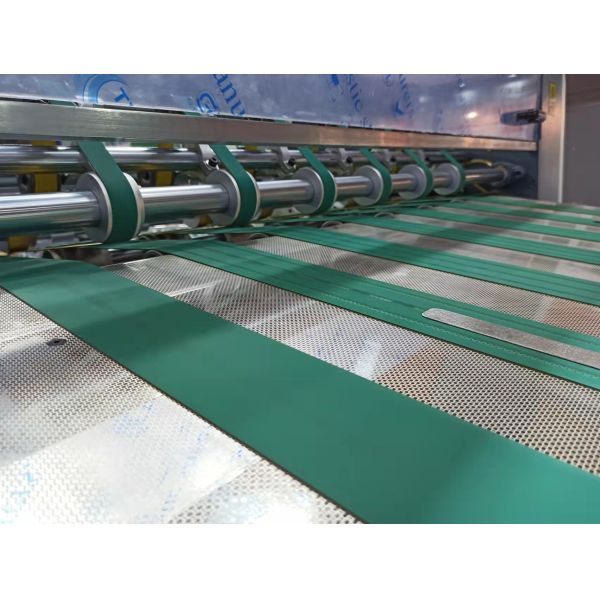

The High Speed UV Spot and Overall Coating machine SD1060 adopts upper-sway gripper-pass-sheet method to enable max speed up to 9500 sheets/hour. UV curing system with Teflon conveying belt has characteristic of higher speed, precise orientation and UV curing higher efficiency and lower power consumption. After sheet travelling through UV coater and being transferred directly by teflon belt, grippers can not be heated by high temperature from UV light, which prevent them from being damaged or deformed to ensure easy maintenance.

Available paper: Kraft paper,Art paper, White board, White cardboard (including peritoneum paper)

High Speed UV Spot and Overall Varnish Coating Machine
Model Ecoo SD-1060
Max.sheet size 730x1060mm
MIN.sheet size 310X406mm
Max.coating size 720x1050mm
Sheet thickness 80-500gsm
Max Coating Thickness 0.025mm
Coating Media Water Base Varnish or UV Varnish
Coating registration accuracy ±0.2mm
Production speed 9000sheets/hour
Weight 8Ton
Dimension 10460x2725x1930mm
Power Max 44KW
Remark: Production speed depending on sheet weight, size and quality

High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing

High Speed UV Varnishing Machine with 9500 sheets/hour, 730x1060mm Max Sheet Size and Teflon Conveying Belt for Paper Processing

How does the machine SD1060 make Spot Gloss UV Texture Varnishing?

The machine can make both gloss UV spot coating and Overall full coating with both UV varnish and matt waterbase varnish. The UV varnish is dried by UV curing lamp or LED UV , the waterbase varnish is dried by the IR lights.

How does the machine SD1060 make texture partial reserved spot coating?

The spot coating is done by the anilox roller with flexo polymer plate. The polymer flexo plate size is depended on the scale area of the part need to be varnishing. The flexo plate is sticked on a transparent film, which will be clamped on the coating roller.

The varnishing thickness is controled by the anilox roller lines, the 180 L/Inch is for 6g/sqm.

What's your advantages ?
  • --15 years experience:We have been in making paper bag machines for 30 years.
  • --Customers all over the world
  • --Certificate: CE certificate,ISO 9001
  • --Fast reply:Our team will reply you soon.
  • --After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
