Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology
Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology
Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology
Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology
Specifications
Brand Name :
Ecoographix
Model Number :
S2000
Certification :
ISO9000, ISO20001, CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
300 SET PER YEAR
Delivery Time :
30 DAYS
Packaging Details :
wooden case
Type :
thermal CTP machine
speed :
20-60 liter/hour
Resolution :
2400/44800/5080/10160 DPI
Max. plate imaging area :
1630mm*1325mm
Min. plate :
550mm*650mm
Speed :
18/28 pph
Options :
autoloader, inline punch
Exposing method :
256 laser valve technology, or laser diodes
Description

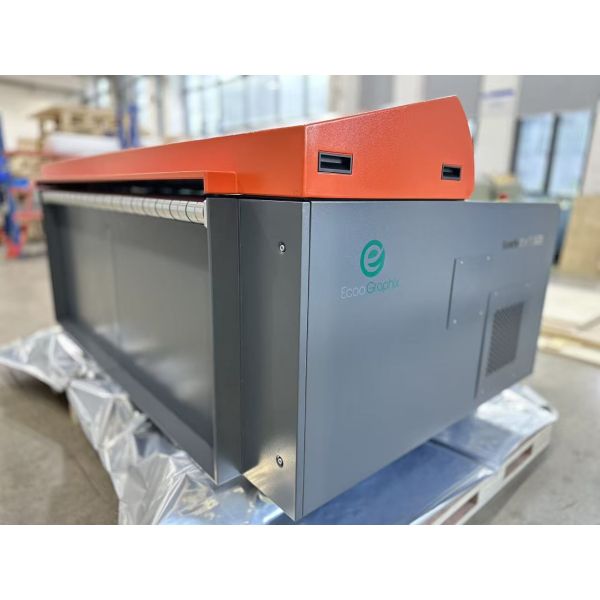

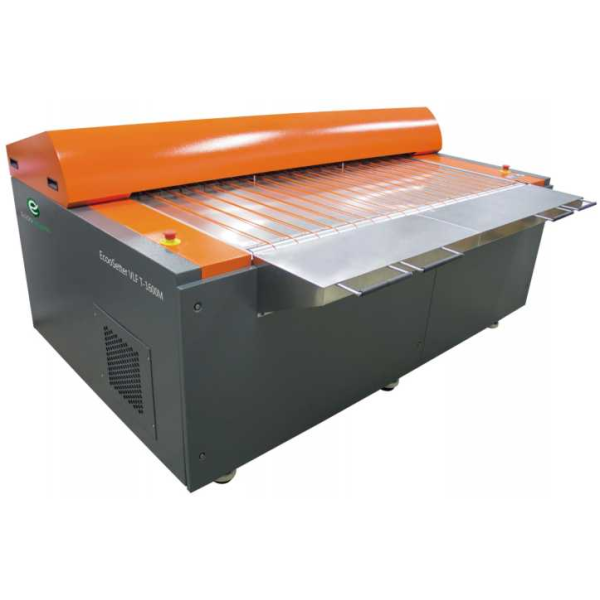

VLF 1600mm format thermal CTP machine solution

-Manual feeding thermal CTP machine, T1600M

-inline processor-P1550

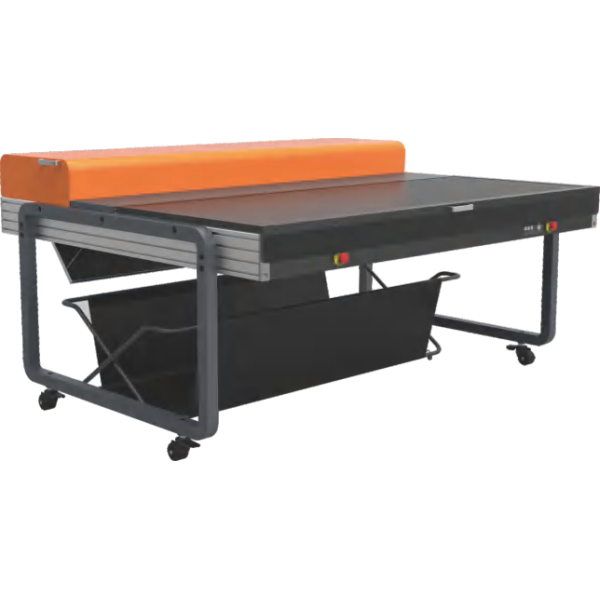

-Inline stacker-s1150

Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology


Main technical data

ECOO VLF(Very Large Format) T-1600MX CTP Series Specifications

Model

T-1600MX

Exposing Method

External Drum

Imaging System

128-channel

Discrete 830nm laser diode

Output Speed

18plates/hour

　

1630mm x 1325mm / 2400dpi

Plate Sizes

Max.1680mm x1350mm;

Min. 650mm x 550mm

Exposing Size

Max. 1680mm x 1336mm

Media Type

positive thermal CTP plate

Plate Thickness

0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative)

Resolution

2400dpi

Repeatablity

±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)

Interface

USB 2.0 or USB3.0(USB2.0 is recommended)

Plate Loading

semi automatic(alternative autoloader system)

Net Weight

1800kg

Machine Size
(WxLxH)mm

2400x1430x1110

Power Supply

single phase:220V-240V, power Consumption(peak value):5.5KW

Environment

recommended temprature:21-25℃;allowed temperature :15-30℃, humidity:<70%RH

Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology

Processor-P1550


Outstanding points

PLC automatic control system: the computer precision processing;

LED interface, easy to operate;

PVC board tub and tough rubber roller, resistant to acid alkali corrosion;

Proper and complete structure: developing, washing, gluing, drying tank;

Automatic standby function, to help electricity and water saving,

Automatic rehydration system;

Convenient operation management.

Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology

Specifications:

Machine type

Ecoo-P-1550E

Page size

Width max: 1500mm; length min: 300 mm

Plate thickness

0.15-0.4mm

Processing speed

13 to 50 seconds ( Speed adjustable)

Temperature

10 to 45 ℃ can be adjusted (automatic temperature control, cooling system)

Developing capacity

72L

Water circulation

Yes (2 of 3 water pipes circulation)

Drying temperature

20-65 ℃ can be adjusted

Power supply

220 V (210 V-240 V) single-phase 50-60hz/7.5KW

Weight

800kg

Options:
Autoloader, to feed the machine automatically, SCU1400

ECOO Cassette Autoloader Technical Specification

Model

SCU1400

Cassette Type

Single cassette, Loading platform

Plate feeding way

Auto-feed (remove the interleaf paper at the same time)

Plate size

Max.1,680x1350mm, Min.550x650mm

Plate Thickness

0.15mm-0.40mm

Interface

RS485

Plate Loading Quantity

100pcs

Net Weight

300KG

Device Size

1962x2177x1071mm (WxDxH)

Power Supply

Single phase: 200V-240V; Max power (peak value):1100W

Environment

Recommended temperature:21-25℃ Allowable temperature:15-30℃ Humidity: 40%-70%


Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology

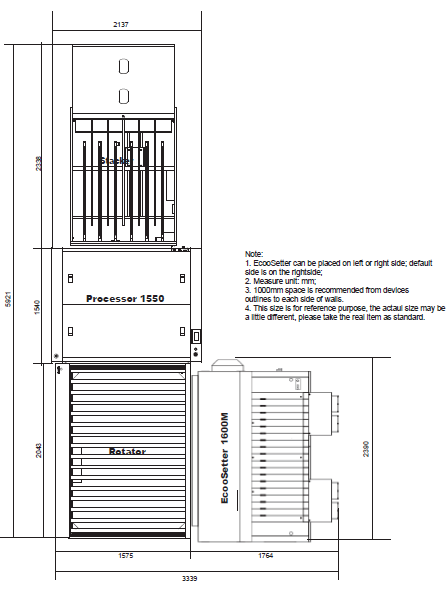

Machine installation map

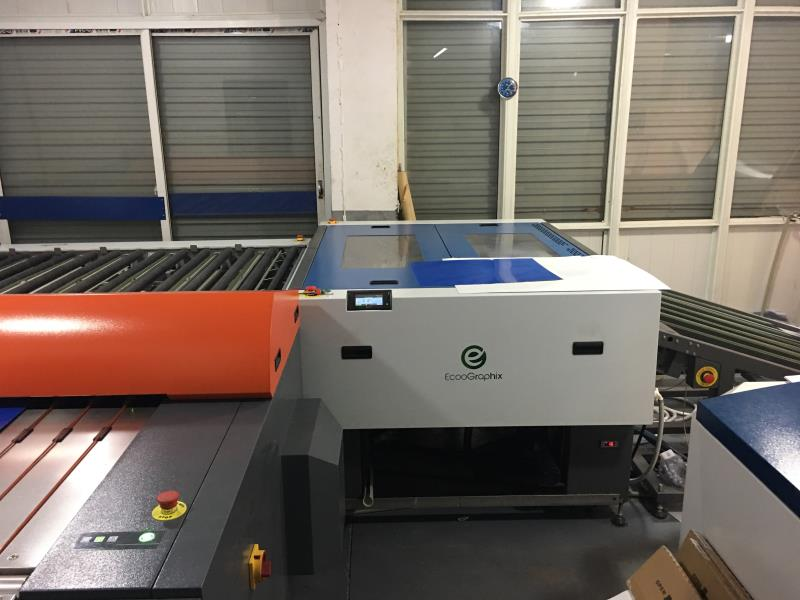

DIrect-line installation with direct bridge

Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology

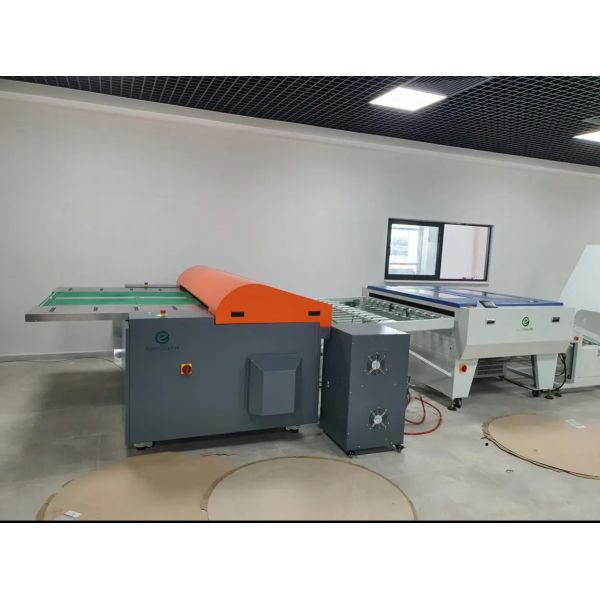

If installation space is limited, you can consider corner-turn installation with a rotator bridge

Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve TechnologyManual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology
