Specifications
Brand Name :
ECOOGRAPHIX
Model Number :
ECOO2800
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Payment Terms :
L/C, T/T
Delivery Time :
30DAYS
Packaging Details :
Standard Export Packing
Price :
Negotiable
Supply Ability :
500SETS
Net weight :
3300kg
Warranty :
One Year
Max.Window size :
(L)400×(W)400
Machine size :
(L)4500×(W)1500×(H)1700
Condition :
New
Max.Paper size :
(L)600×(W)520
Description

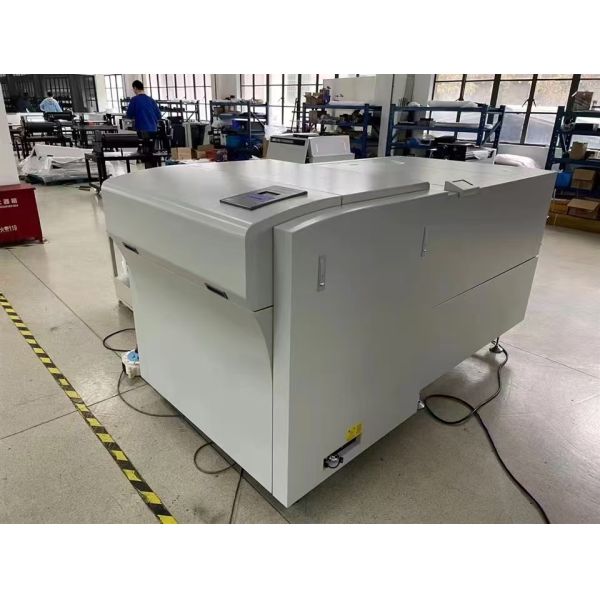

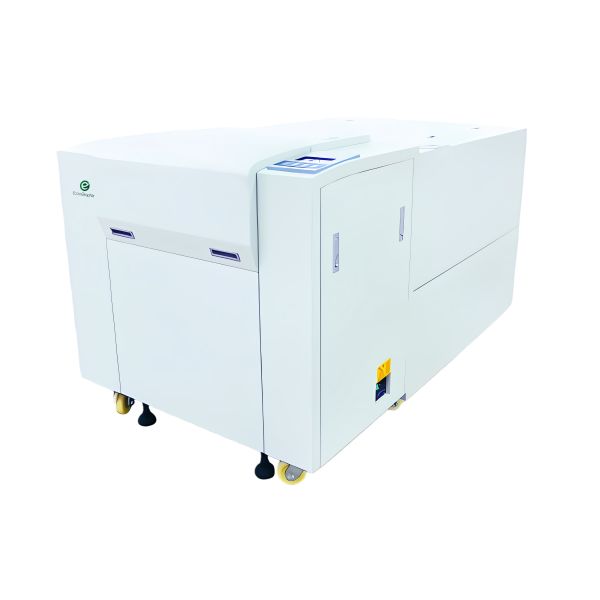

Printing Film Making Imagesetter CTF Machine

1. Application

Laser lmagesetter, also known as the Computer to Film(CTF), it is a printing device thatoutputs high-precision, high-resolution images and text on film or photographic paper. lt ischaracterized by high output precision requirements and large output format.EcooGraphix lmagesetters are with full automatic operation during whole process, gridreverting exactly and high precision resetting and so on. Also it is the ideal choice of large platemaking center, news printing, circuit printing and escutcheon trade.

The CTF Imagesetter is used to process the layout graphics and text with RIP (Raster Image Processor), then scan and expose the photosensitive film line by line with a laser, and then develop/fix it to form a negative for printing (i.e. film). The typical process is: computer processing of graphics and text → through interface and RIP driver → laser modulation and scanning → film exposure → development and fixation → the finished film is used for printing and overprinting.

This process is widely used in offset full color printing plate making, silk screen printing, PCB circuit boards and other fields.


Technical Specifications:

Model Ecoo-2800
Exposure dimensions(mm) 940mm/812mm × 660mm / 610mm / 558mm / 508mm
Scanning precision 1500dpi---4000dpi (optional)
Repeatability Precision <± 0.010mm
Operation mode full automatic, on-line operation with 60m roll fifilm and processor, without dark room
Scanning mode external drum, broad band laser scanning with high speed
Interface condition All signals are TTL interfacing with computer
Overall dimensions 2580mm×1360mm×1180mm
Production lead time 45 days
Packaging dimension

3 wooden box

1550×1100×1500mm

2020×1200×1350mm

1020x770x920mm
NW 1000KG
GW 1200KG
