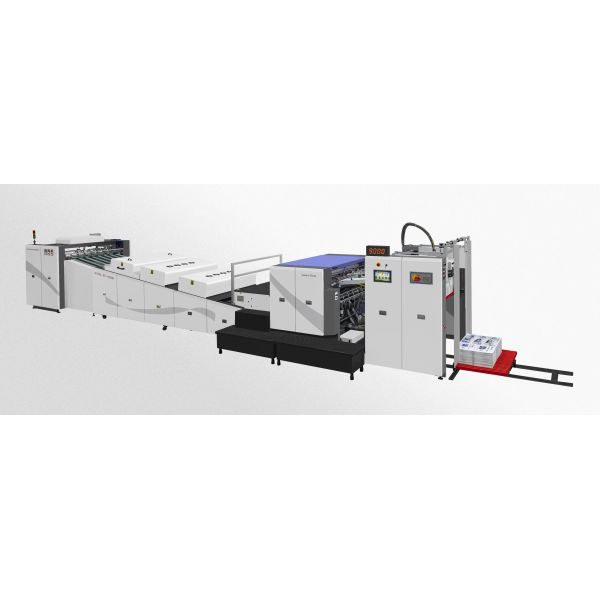

High Speed 9500 Sheets/Hour UV Coating Machine with 720x1050mm Max Coating Size for Water Base and UV Varnish
High Speed 9500 Sheets/Hour UV Coating Machine with 720x1050mm Max Coating Size for Water Base and UV Varnish
High Speed 9500 Sheets/Hour UV Coating Machine with 720x1050mm Max Coating Size for Water Base and UV Varnish
High Speed 9500 Sheets/Hour UV Coating Machine with 720x1050mm Max Coating Size for Water Base and UV Varnish
High Speed 9500 Sheets/Hour UV Coating Machine with 720x1050mm Max Coating Size for Water Base and UV Varnish
High Speed 9500 Sheets/Hour UV Coating Machine with 720x1050mm Max Coating Size for Water Base and UV Varnish
Specifications
Brand Name :
EcooGraphix
Model Number :
Ecoo SD-1060W
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
To Be Negotiated
Payment Terms :
L/C,T/T
Supply Ability :
200 Sets/Year
Delivery Time :
45 days
Packaging Details :
Standard Exporting Package
Product Name :
High Speed 9500 Sheets/hour UV Spot and Overall Coating Machine
Max.sheet size :
Max.sheet size
Max.coating size :
720x1050mm
Sheet thickness :
80-500gsm
Max Coating Thickness :
0.025mm
Coating Media :
Water Base Varnish or UV Varnish
Description
High Speed 9500 Sheets/Hour Spot And Overall UV Coating Machine
Product Overview

The High Speed UV Spot and Overall Coating Machine SD-1060W delivers exceptional performance with maximum speeds up to 9500 sheets/hour, making it ideal for high-volume production environments.

High Speed 9500 Sheets/Hour UV Coating Machine with 720x1050mm Max Coating Size for Water Base and UV Varnish
Model: Ecoo SD-1060W
Product Parameters

The High Speed UV Spot and Overall Coating machine SD-1060W adopts upper-sway gripper-pass-sheet method to enable max speed up to 9500 sheets/hour. UV curing system with Teflon conveying belt has characteristic of higher speed, precise orientation and UV curing higher efficiency and lower power consumption. It is used for both thick and thin papers, and can be used for both full and partial UV varnish coating or water based varnish coating.

High Speed 9500 Sheets/Hour UV Coating Machine with 720x1050mm Max Coating Size for Water Base and UV Varnish
Application Sample
Technical Specifications
Model Ecoo SD-1060W
Max. sheet size 730x1060mm
Min. sheet size 310x406mm
Max. coating size 720x1050mm
Sheet thickness 80-500gsm
Max Coating Thickness 0.025mm
Coating Media Water Base Varnish or UV Varnish
Coating registration accuracy ±0.2mm
Production speed 9000 sheets/hour
Weight 8 Ton
Dimension 10460x2725x1930mm
Power Max 44KW
High Speed 9500 Sheets/Hour UV Coating Machine with 720x1050mm Max Coating Size for Water Base and UV Varnish
Floor Plan
Coating Roller Systems
High Speed 9500 Sheets/Hour UV Coating Machine with 720x1050mm Max Coating Size for Water Base and UV Varnish
Coating with Anilox Roller
High Speed 9500 Sheets/Hour UV Coating Machine with 720x1050mm Max Coating Size for Water Base and UV Varnish
Coating with Rubber Roller
Frequently Asked Questions
What about the Installation and after-sales technician support?
Our engineer can assist with installation and provide necessary training. The buyer is responsible for round air plane tickets, service charges, and local accommodation costs. Any problems or questions, we will be at your disposal 7x24 hours.

Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
