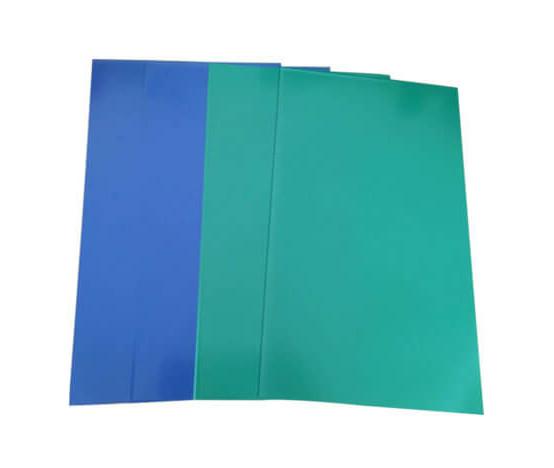

0.15mm Conventional Aluminum CTP Positive PS Plate for Newspaper Printing
0.15mm Conventional Aluminum CTP Positive PS Plate for Newspaper Printing
0.15mm Conventional Aluminum CTP Positive PS Plate for Newspaper Printing
0.15mm Conventional Aluminum CTP Positive PS Plate for Newspaper Printing
0.15mm Conventional Aluminum CTP Positive PS Plate for Newspaper Printing
0.15mm Conventional Aluminum CTP Positive PS Plate for Newspaper Printing
0.15mm Conventional Aluminum CTP Positive PS Plate for Newspaper Printing
0.15mm Conventional Aluminum CTP Positive PS Plate for Newspaper Printing
Specifications
Brand Name :
EcooGraphix
Model Number :
ECOO-PS
Certification :
ISO9000, CE
Place of Origin :
China
MOQ :
1000 Square Meters
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
2,000,000 Sqm Per Year
Delivery Time :
30 Days
Packaging Details :
Standard Export Packing
Plate Type :
Positive PS Plate
Resolution :
1-99% @ 300LPI
Length of Run (Unbaked) :
50,000 to 100,000 impressions
Length of Run (Baked) :
Over 100,000 impressions
Gauges :
0.15mm, 0.20mm, 0.25mm, 0.30mm and 0.40mm
Developing time :
20-30 sec
Processing Speed :
0.80 - 1.20 m/min
Safelight :
Handle under yellow safe light (UV free)
Description
1. Specification

ModelECOO-PS
Plate TypePositive PS Plate
ApplicationCommercial and newspaper printing
SubstrateElectro chemically grained and Anodized lithographic aluminum
Gauge0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain widthMaximum width 1280 mm
Power of light3,000-5,000 w
Length of RunUnbaked: 50,000 to 100,000 impressions;
Baked: Over 100,000 impressions (dependent upon image resolution, press, press chemical, ink and paper conditions).
ProcessorAll brands or Manual
AluminumStandard 1050 Alloy
Developing time20-30 sec
Spectral Sensitivity320-405 nm
Resolution1-99% @ 300LPI
Image ColorGreen
DeveloperAny positive plate developer or our own developer
Processing temperature20-25ºC
Processing Speed0.80 - 1.20 m/min
SafelightHandle under yellow safe light(UV free)
Shelf life12 months under recommended storage conditions
PackagingAvailable in all standard formats, including bulk packaging options such as APL packaging
Storage and handingStored in a cool and dry environment, away from excessive cold, heat and humidity

​

2. Characteristic

  • Uniform surface coating with high photosensitivity for consistent imaging quality

  • High resolution output with extended press run capability

  • Accurate halftone dot reproduction for sharp, detailed prints

  • Fast exposure combined with excellent stability for reliable performance

3. Application

The EcooGraphix PS Plate (conventional analog plate) is designed for offset and lithographic printing, including commercial and newspaper applications. Manufactured with advanced production technology and premium raw materials, it offers high photosensitivity, accurate halftone dot reproduction, and stable performance throughout the print run.
