Automatic Flexographic Label Printing Machine

Product Description

Main Features

1. The whole machine adopts the latest servo control system from Germany and each printing unit is driven by independent servo motor. There are 23 servo motors in total for 8color machine which ensure the accurate registration during high speed running.
2. The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduce the maintenance
3. Fast and easy Pressure adjustment of printing or ink transferring: Printing roller run by bearer, it's not necessary to adjust the pressure when change the roller, or at most fine adjust for special job.
4. Anvil roller equips with water chiller, it's good for film material as well.
5. Suitable for printing variety film material, such as PET, OPP, CPP, PP and so on.

Advantages

1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.
3.Each printing unit adopts 360°plate adjustment.
4.Each printing unit equips with hot air dryer.
5.This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
6. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
7. Main motor use inverter to adjust stepless speed.
8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing adhesive label.
9. Overlap installation saves space of plant.

Specification

Model

ECOO-ZJR350; ECOO-ZJR450; ECOO-ZJR650

Max. Printing speed
180m/min; 180m/min; 180m/min

Printing color
4-12 colors; 4-12 colors; 4-12 colors

Max. web width
360mm; 470mm; 670mm

Max. printing width
350mm; 450mm; 650mm

Max. unwinding diameter
900mm; 900mm; 1000mm

Max. rewinding diameter
900mm; 900mm; 1000mm

Printing length
241.3-603.25mm; 241.3-603.25mm; 304-730.25mm

Dimensions (L×W×H)
10.83m x 1.56m x 1.52m; 10.83m x 1.68m x 1.52m; 10.0m×1.88m×1.56m
for 8colors, 3 die cutting stations; for 8colors, 3 die cutting stations; No die cutting stations

Machine Spare Parts

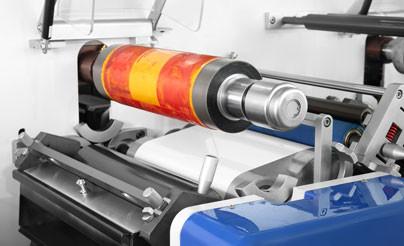

Sleeve
The printing roller adopts sleeve system which is light, easy, convenient and fast to change. Since there is no gear on the cylinder, it largely improves the printing quality and reduces the maintenance.

UV Dryer and Anvil Roller with Water Chiller
UV curing is equipped with water chiller, which lowers the temperature of flexo plate while printing. It reduces the friction between plate and material, improves the quality of printing and enables the machine to print variable film material, such as PP, PET, BOPP, etc.

Movable Turn Bar
When the material needs to be printed on both sides, it can be completed at one time by turn bar.

Matrix Unit
It is snowball matrix device with a good performance, the speed is synchronized with printing.

Movable Touch Screen
Touch LCD screen, faster CPU, 15inch operating display. The rich human-computer dialogue system, multi-guide inspecting display interface, instant alarm signal, makes operation much easier and more efficient.

Die Cutting Roller Lifter
It is an electric lifting device for changing magnetic rollers, convenient and fast.

Note:*=Options

*Hot Air Dryer(Option)
Using wind knife drying method, good effective for water-base ink and solvent ink drying.

*Movable Cold Stamping (Option)
It can be movable on the railway of the machine, high speed and efficient.

*Slitting Unit (Option)
In order to improve production speed, pneumatic knife can do slitting function on line. The slitting pressure is adjustable.
