Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Specifications
Model NO. :
A3
Heat Source Type :
Air Source Heat Pump
Operating Air Temperature :
-5~43
Heat Capacity :
4.5-14kw
Application :
Villa Family, Sauna and Swimming Pool, Hotels, Gym
Power Supply (V/Hz) :
220-240V/1pH/50Hz
Compressor :
Rotary
Condenser :
Titanium Coil
Unit Type :
on/off Top Blow
Transport Package :
Factory Standard
Specification :
755*258*500mm
Trademark :
Wotech
Origin :
China
HS Code :
84186120
Customization :
Available
Certification :
RoHS, CB, CCC, ISO9001, CE
Working Medium :
R32
Description
R410a Top Blow On/Off Swimming Pool Heat Pump for both commercial and residential
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Features:
1.Anti-UV Plastic ABS corrosion resistant casing material with injection model or normal plastic model
2.Patented corrosion resistant titanium exchanger
3.Environmental friendly

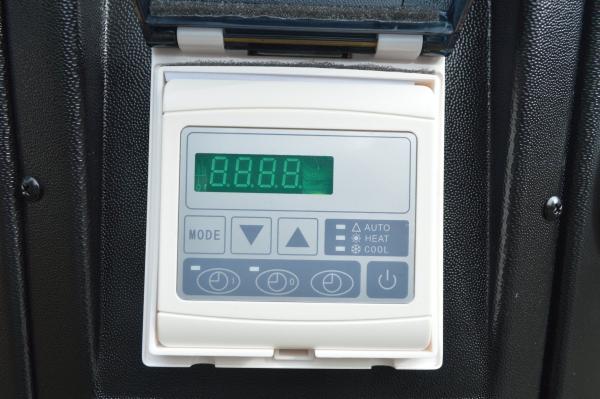

4.LCD or colorful LED controller for options.
5.Re-start memory
6.Heating and cooling with reversible defrosting.
7.Super quiet
8.Remote and intelligent controller design with Celsius or Fahrenheit temperature display for options.
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Technical Parameter:
CODE WBR-4.5H-A3 WBR-7.8H-A3 WBR-12.5H-A3 WBR-14.0H-A3
Heating Performance Condition: Air 27ºC, Water 27ºC
*Heating Capacity KW 4.26 7.4 11.13 12.77
*Input Power KW 0.89 1.44 2.11 2.55
*Running Current A 4.3 6.9 10.1 12.2
*COP - 4.79 5.14 5.28 5
Heating Performance Condition: Air 15ºC, Water 26ºC
**Heating Capacity KW 3.43 5.63 8.03 9.31
**COP - 3.89 4.09 4.27 4.09
Power Supply V/PH/HZ 220-240V/1PH/50HZ
Max Heating Current A 5.1 8.2 12 14.5
condenser - Titanium Coil
Compressor - Rotary
Noise dB(A) (1 m) 53 55 57 58
Water Connection inch 1-1/2 1-1/2 1-1/2 1-1/2
Average Flow m³/h 1.9 3.4 5.4 6.0
Net Dimension mm 455*455*605 550*550*800 570*570*940 570*570*940
Weight kg 29/34 42/48 55/62 59/66
Remarks:The Specifications are subject to changes without notice
Key Components:
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Wotech Project Cases:
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser


Manufacturing & Laboratories:
Commercial and Residential Swimming Pool Heat Pump Rotary Compressor R410A Top Blow on/off with Titanium Coil Condenser
