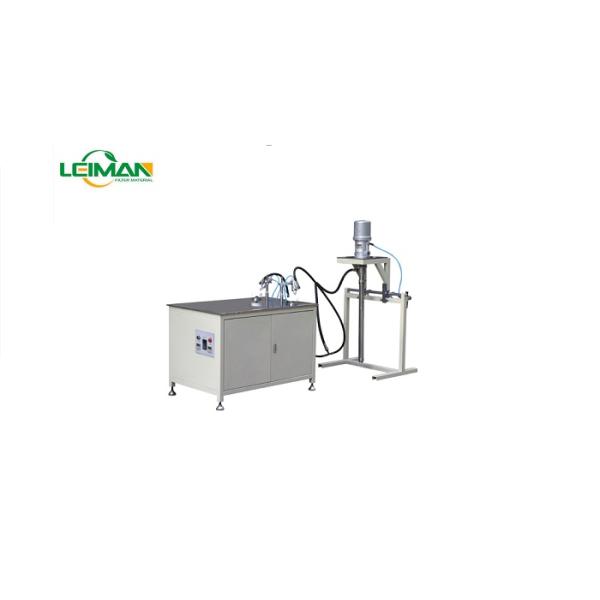

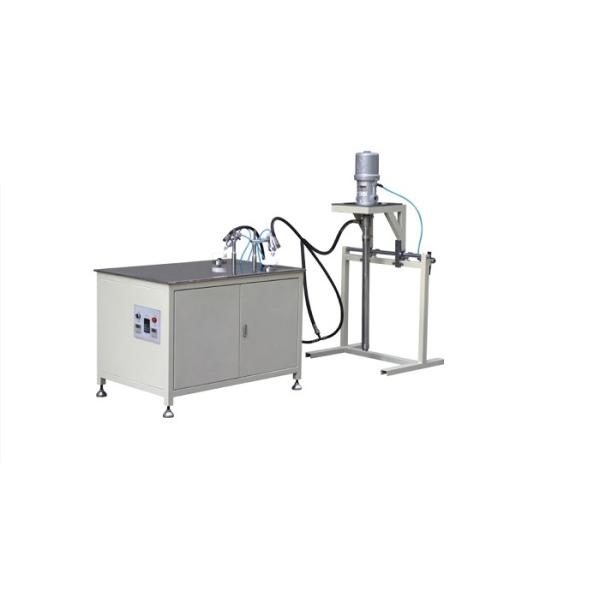

Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap
Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap
Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap
Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap
Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap
Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap
Specifications
Brand Name :
PLM
Model Number :
PLZJ-500
Certification :
CE CERTIFICATE
Place of Origin :
MADE IN CHINA
MOQ :
1 SET
Price :
USD10800/SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1SET PER 20DAYS
Delivery Time :
20DAYS AFTER DEPOSIT
Packaging Details :
EXPORT STANDARD WOOD CARTON
The outer diameter of the end cap :
≤500mm
Gluing width :
≤50mm
Viscidity :
≤50000CP
Working air pressure :
0.6MPa
Main machine power :
500w
Power supply :
220V/50Hz
M/C weight :
300kg
Main machine size :
1405×950×1300mm(L×W×H)
Description

Heavy Duty Truck Air Filter HDAF PVC End Cap Glue Injection Equipment Filter Gluing Machine

Heavy Duty Truck Air Filter HDAF PVC End Cap Gluing Machine

Features


1, This machine can glue evenly with wide using range.


2, Using the double sealing modes, to make the nozzle break off glue thoroughly after gluing.


3, The auto mover system push the glued products into the production line automatically to avoid affecting the product quality while transferring.


4, Adopts the excellent import pump, ensure gluing accurately.

Specification


1, The outer diameter of the end cap:≤500mm

2, Gluing width:≤50mm

3, Viscidity:≤50000CP

4, Suitable adhesives:PVC filter adhesive(high temperature solidified adhesive)

5, Production capability:4pcs/min

6, Power supply:220V/50Hz

7, Main machine power:500w

8, Working air pressure:0.6MPa

9, The air pressure of the gluing pump:≤0.45MPa

10, The working pressure of the gluing head:4MPa

11, M/C weight:300kg

12, M/C size:1405×950×1300mm(L×W×H)

Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap

I. General Description

This machine is applied to dispense PVC on the end caps of the heavy duty air filter.

Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap

II. Specification


Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap

Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap

Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap

Heavy Duty Truck Air Filter Filter Gluing Machine with HDAF PVC End Cap
