PLMC-2 2 station oil filter Impulse Fatigue Performance Tester filter manufacture
PLMC-2 2 station oil filter Impulse Fatigue Performance Tester filter manufacture
PLMC-2 2 station oil filter Impulse Fatigue Performance Tester filter manufacture
PLMC-2 2 station oil filter Impulse Fatigue Performance Tester filter manufacture
Specifications
Brand Name :
PLM
Model Number :
PLMC-2
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 14000/SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 set per month
Delivery Time :
20-25 days delivery
Packaging Details :
wooden package
Product name :
PLMC-2 2 station oil filter Impulse Fatigue Performance Tester filter manufacture
Oil pump flow :
32L/min
Flow precision :
1grade
Test pressure :
0-2Mpa(adjustable)
Applicable industry :
Manufacturing Plant
Core components :
Engine
Warranty :
1 year
Video factory inspection :
Provided
Keywords :
2 station oil filter Impulse Fatigue Performance Tester filter manufacture
M/C Weight :
500 kg
Description

PLMC-2 2 station oil filter Impulse Fatigue Performance Tester filter manufacture

2 station oil filter Impulse Fatigue Performance Tester filter manufacture

It is used to test the shell and seal performance of rotary oil fillter with flow quantity less than 50/min,and the ability to bear high-pressure fluctuation in rated frequency when motor started.

2 Station Impulse Fatigue Performance Tester Oil Filter Making Machine Features

1 Automatically set impulse frequency,and stop when arrival,meanwhile record the impulse frequency.

2 Can test two different filters at two different areas.

3 Use high-precision long scan oscillograph and pressure sensor to automatically display the impulse wave and pressure respectively.

4 Automatically shows the signals in normal and abnormal test conditions.

5 The stand is automatically protected when higher-pressure,lower liquid level,and the specified limits.

6 Test criterion:JB/T6725-93,ISO4548.

2 station oil filter Impulse Fatigue Performance Tester filter specification

Oil pump flow

 32L/min

Flow precision

 1grade

Test pressure

 0-2Mpa(adjustable)

Main motor power

 2.2Kw

Temperature control

 normal temp.~100℃

Supply voltage

 380V/50HZ
M/C weight 500kg
Size of the main machine

1800×850×1450mm(L×W×H)

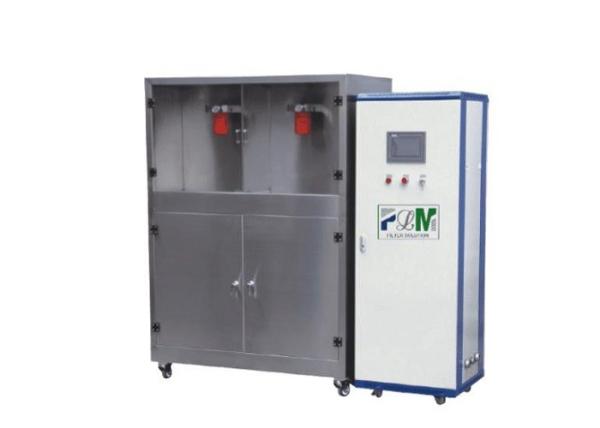

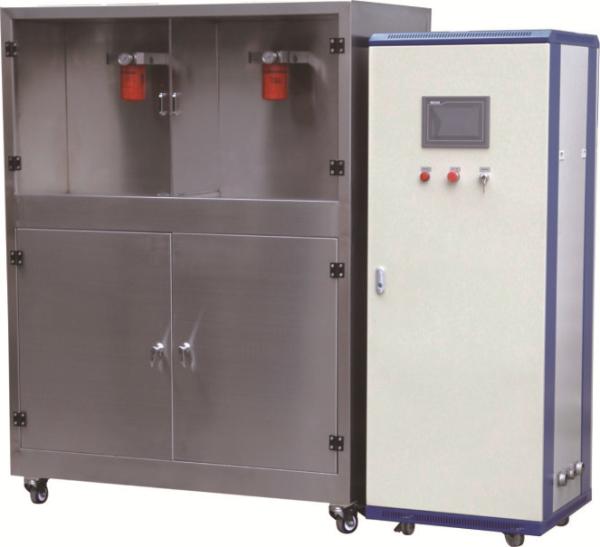

Impulse Fatigue Performance Tester Oil Filter Making Machine Photo

PLMC-2 2 station oil filter Impulse Fatigue Performance Tester filter manufacture

Advantages of PLM for Air Filter Making Machine:

PLMC-2 2 station oil filter Impulse Fatigue Performance Tester filter manufacture
