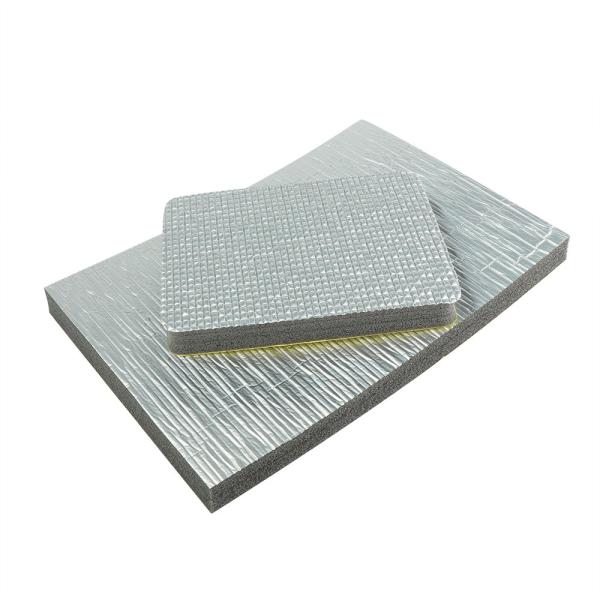

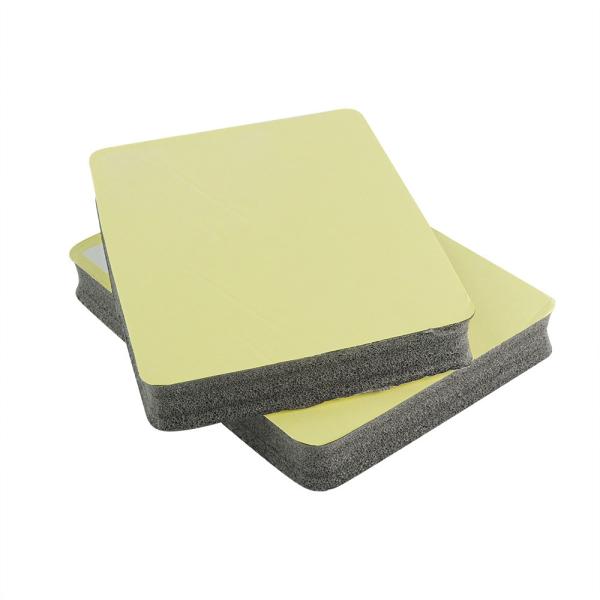

Reflective Heat Insulation Material XLPE Foam Backed Film For Refrigeration
Reflective Heat Insulation Material XLPE Foam Backed Film For Refrigeration
Reflective Heat Insulation Material XLPE Foam Backed Film For Refrigeration
Reflective Heat Insulation Material XLPE Foam Backed Film For Refrigeration
Specifications
Brand Name :
EkkoFlex
Certification :
BS476,UL94,RoHS,REACH
Place of Origin :
Made In China
MOQ :
3000㎡
Price :
$0.16-3.61/㎡
Payment Terms :
T/T, L/C
Supply Ability :
1000000m per month
Delivery Time :
7-14 work days
Packaging Details :
poly bag or customized
Product name :
Reflective Heat Insulation Material XLPE Foam Backed Film For Refrigeration
Structure :
Adhesive+XPE Foam+ Aluminum foil
Density :
28-35kg/m³
Thickness :
12/13/15/19/25/30mm
Working Temperature :
'-40℃ ~80℃
Flammability :
B1 grade
Water Absorption :
Less than 0.5%
Type :
insulation material
Width :
1000-1500mm
Application :
HVAC ducts, pipes, tanks, and equipment
Thermal Conductivity :
≤0.045W/m.k
Reflective :
96%~97%
Description

Reflective Heat Insulation Material XLPE Foam Backed Film For Refrigeration

Beyond refrigerators, aluminum-backed XLPE finds applications in a wide range of industries. In the building and construction sector, it's used for insulating walls, roofs, and floors. The aluminum film reflects solar radiation, while the XLPE foam provides thermal insulation, helping to regulate indoor temperatures and reduce energy consumption for heating and cooling. This is especially beneficial in both residential and commercial buildings, such as offices, hotels, and apartment complexes.

For heating, ventilation, and air conditioning (HVAC) systems, aluminum-backed XLPE is applied to ducts. It not only insulates the ducts to prevent heat loss or gain but also dampens noise from air movement. The material's moisture resistance is crucial in maintaining the integrity of the ducts, as it can prevent condensation and subsequent mold growth, which is a common issue in HVAC systems.

Reflective Heat Insulation Material XLPE Foam Backed Film For Refrigeration

XPE foam coated adhesive and aluminum foil:

Rolls-air condition air duct

Thickness

(mm)

Width(mm)

Length(m)

Remark

5

1000,1200,1500

50

1.One side adhesive,the other side with aluminum foil;

2.One side with aluminum foil;

3.One side with adhesive

4.No aluminum foil or no adhesive

Aluminum foil: silver color

Adhesive:Acrylic

10

1000,1200,1500

25

12

1000,1200,1500

25

13

1000,1200,1500

25

15

1000,1200,1500

25

19

1000,1200,1500

25

20

1000,1200,1500

15

25

1000,1200,1500

15

Sheet-air condition air duct

Thickness

(mm)

Width(mm)

Length(m)

Remark

10

1000,1200,1500

2

1.One side adhesive,the other side with aluminum foil;

2.One side with aluminum foil;

3.One side with adhesive

4.No aluminum foil or no adhesive

Aluminum foil: silver color

Adhesive:Acrylic

12

1000,1200,1500

2

13

1000,1200,1500

2

15

1000,1200,1500

2

19

1000,1200,1500

2

20

1000,1200,1500

2

25

1000,1200,1500

2

30

1000,1200,1500

2

​

XPE foam with double sided Aluminum Foil:

Thickness

(mm)

Width(mm)

Length(m)

Remark

4

1200,1350,1500

20.22.25.40.50

1.Both sides in aluminum foil faced

2.R value ≥2,based on thickness

3.Emissivity≥90% or ≥95%,based on foil type.

4.Thickness,width and length can be customized by customer's requests

5

1200,1350,1500

20,22,25,40,50

6

1200,1350,1500

20,22,25,40,50

7

1200,1350,1500

20,22,25,40,50

8

1200,1350,1500

20,40,50,

10

1200,1350,1500

20,40

FAQ:

Q1:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.

Q2:What are the differences between XPE and IXPE?
XPE is chemically cross-linked, with rough surface. IXPE is physically cross-linked, with
smooth surface.

Q3:Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again, like to be remade
to be mattress, underlay, furniture filling etc

Q4:Does your foam work with adhesives?
Our foam does work well with adhesives. PE foam tape is one of the foam application
