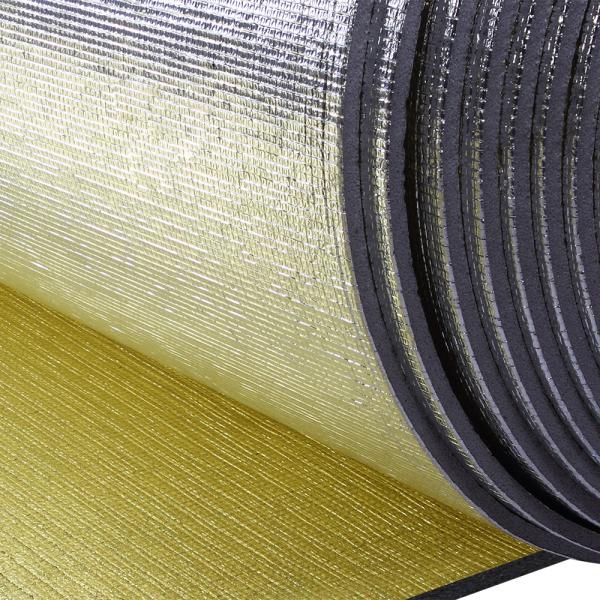

Shock-Proof Cross Linked Polyollefin Foam XLPE XPE For Floor Wall Insulation
Shock-Proof Cross Linked Polyollefin Foam XLPE XPE For Floor Wall Insulation
Shock-Proof Cross Linked Polyollefin Foam XLPE XPE For Floor Wall Insulation
Shock-Proof Cross Linked Polyollefin Foam XLPE XPE For Floor Wall Insulation
Specifications
Brand Name :
EkkoFlex
Certification :
BS476,UL94,RoHS,REACH
Place of Origin :
Made In China
MOQ :
3000㎡
Price :
$0.16-3.61/㎡
Payment Terms :
T/T, L/C
Supply Ability :
1000000m per month
Delivery Time :
7-14 work days
Packaging Details :
poly bag or customized
Product name :
Shock-Proof Cross Linked Polyollefin Foam XLPE XPE For Floor Wall Insulation
Structure :
Adhesive+XPE Foam+ Aluminum foil
Density :
28-35kg/m³
Thickness :
12/13/15/19/25/30mm
Working Temperature :
'-40℃ ~80℃
Flammability :
B1 grade
Water Absorption :
Less than 0.5%
Type :
insulation material
Width :
1000-1500mm
Application :
HVAC ducts, pipes, tanks, and equipment
Thermal Conductivity :
≤0.045W/m.k
Reflective :
96%~97%
Description

Shock-Proof Cross Linked Polyollefin Foam XLPE XPE For Floor Wall Insulation

This shock-proof cross-linked polyolefin foam (XLPE/XPE) is ideal for floor and wall insulation. Its resilient structure absorbs impacts, reducing noise and enhancing structural protection. The closed-cell design offers excellent thermal insulation, curbing heat transfer to maintain indoor comfort.

Water-resistant and mold-proof, it suits humid environments like basements or bathrooms. Easy to install, it cuts cleanly to fit any space, adhering well to floors/walls. Perfect for homes, offices, and commercial buildings—boosts energy efficiency, dampens sound, and adds impact resistance, making it a versatile insulation solution for interiors.

Shock-Proof Cross Linked Polyollefin Foam XLPE XPE For Floor Wall Insulation

XPE foam coated adhesive and aluminum foil:

Rolls-air condition air duct

Thickness

(mm)

Width(mm)

Length(m)

Remark

5

1000,1200,1500

50

1.One side adhesive,the other side with aluminum foil;

2.One side with aluminum foil;

3.One side with adhesive

4.No aluminum foil or no adhesive

Aluminum foil: silver color

Adhesive:Acrylic

10

1000,1200,1500

25

12

1000,1200,1500

25

13

1000,1200,1500

25

15

1000,1200,1500

25

19

1000,1200,1500

25

20

1000,1200,1500

15

25

1000,1200,1500

15

Sheet-air condition air duct

Thickness

(mm)

Width(mm)

Length(m)

Remark

10

1000,1200,1500

2

1.One side adhesive,the other side with aluminum foil;

2.One side with aluminum foil;

3.One side with adhesive

4.No aluminum foil or no adhesive

Aluminum foil: silver color

Adhesive:Acrylic

12

1000,1200,1500

2

13

1000,1200,1500

2

15

1000,1200,1500

2

19

1000,1200,1500

2

20

1000,1200,1500

2

25

1000,1200,1500

2

30

1000,1200,1500

2

​

XPE foam with double sided Aluminum Foil:

Thickness

(mm)

Width(mm)

Length(m)

Remark

4

1200,1350,1500

20.22.25.40.50

1.Both sides in aluminum foil faced

2.R value ≥2,based on thickness

3.Emissivity≥90% or ≥95%,based on foil type.

4.Thickness,width and length can be customized by customer's requests

5

1200,1350,1500

20,22,25,40,50

6

1200,1350,1500

20,22,25,40,50

7

1200,1350,1500

20,22,25,40,50

8

1200,1350,1500

20,40,50,

10

1200,1350,1500

20,40

FAQ:

Q1:Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again, like to be remade
to be mattress, underlay, furniture filling etc

Q2:Does your foam work with adhesives?

XLPE foam+pure aluminum foil+adhesive
Used: HVAC duct insulation
Reflecting up to 97% of radiant heat
Excellent fire properties
Excellent acoustic insulating properties
Environmentally/ Eco-friendly and fibre-free
Foam Density: Standard 33.3±3kg/m3(Various options available 28-300Kg/m3)
Width:1-1.6meter, Length 15-50meter
Thickness:1-15mm with single layer, Max 60mm after lamination.
Color:grey, black,White
Adhesive self strong adhesive lamination aluminum Foil Pure aluminum Foil/ Coated aluminum foil fire-resistance available in Class A,Class B.
