E312831 ECHU UL Certificated Drag Chain Cable, UL Flexible Mobile Cable, UL2464 drag Chain Cable
E312831 ECHU UL Certificated Drag Chain Cable, UL Flexible Mobile Cable, UL2464 drag Chain Cable
E312831 ECHU UL Certificated Drag Chain Cable, UL Flexible Mobile Cable, UL2464 drag Chain Cable
E312831 ECHU UL Certificated Drag Chain Cable, UL Flexible Mobile Cable, UL2464 drag Chain Cable
E312831 ECHU UL Certificated Drag Chain Cable, UL Flexible Mobile Cable, UL2464 drag Chain Cable
E312831 ECHU UL Certificated Drag Chain Cable, UL Flexible Mobile Cable, UL2464 drag Chain Cable
Specifications
Brand Name :
ECHU or OEM
Model Number :
UL2464
Certification :
CCC, UL, ISO...
Place of Origin :
Shanghai, China
MOQ :
300M
Price :
USD0.317 -3.258/M
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000KM/Week
Delivery Time :
7 days after receiving deposit
Packaging Details :
wooden reel or wooden box
Type :
UL2464
Voltage :
300V
Insulation :
PVC
Conductor :
Stranded Copper
Jacket :
PVC
Description

UL Euramerican specification cable

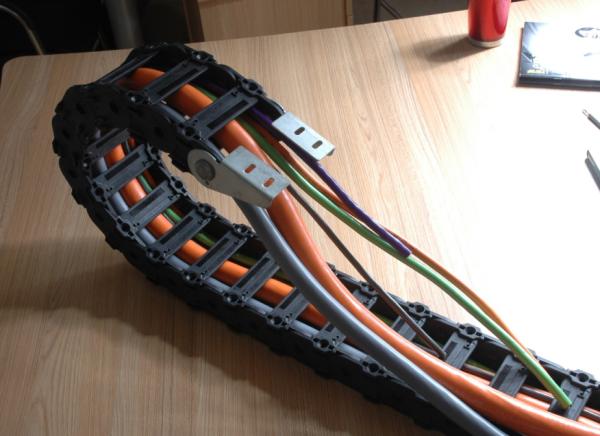

E312831 ECHU UL Certificated Drag Chain Cable, UL Flexible Mobile Cable, UL2464 drag Chain Cable

◆Application:

Robots,towing chains,mobile devices

◆Properties:

Waterproofing;oil resistance;cool resistance;abra- sion resistance;fame resistance;anti-uttraviolet.

◆ Structure:

Conductor:Fine strands of oxygen-free copper wire Insulation:special PVC

Shielding:tinned copper braindedshielding

Dentity:above 80% Sheath:special PVC

(colors can be determined according to customer requirements).

Related voltage:300V

Test voltage:2000V

The working temperature:

fixed installation:-15℃~+80℃ Moved installation:-5℃~+80℃ Minimun bending radius:

fixed installation:5×outer diameter Moved installation:

When travel<10m,bending radius of 8×d When travel≥10m,bending radius of 10×d

Part No

Specification

(kg/km) Weight

(mm)

External Diameter

246424AWG*2C445.8
24644AWG*3C476.0
246424AWG*6C727.3
246424AWG*8C908.2
246424AWG*10C1028.8
246424AWG*16C13910.0
246424AWG*20C16510.9
246422AWG*2C496.1
246422AWG*3C546.3
246422AWG*6C847,7
246422AWG*8C1078.8
246422AWG*12C1379.8
246422AWG*16C16810.7
246422AWG*20C20211.7
246420AWG*2C566.4
246420AWG*3C666.7
246420AWG*6C897.7
246420AWG*8C1309.5
246420AWG*12C17210.6
246420AWG*16C21211.6
246420AWG*20C26112.8
246424AWG*2P657.0
246424AWG*3P807.9
246424AWG*4P94

8.5


Part No

Specification

(kg/km) Weight

(mm)

FxtermalDiameter

246424AWG*6P12510.0
246424AWG*10P17011.6
246424AWG*12P20512.9
246424AWG*16P25314.2
246424AWG*20P34617.5
246420AWG*2P908.0
246420AWG*3P1129.0
246420AWG*4P1399.9
246420AWG*6P18511.6
246420AWG*10P26713.6
246420AWG*12P34716.1
246420AWG*16P43117.7
246420AWG*20P52920.5
246418AWG*2C657.0
246418AWG*3C807.3
246418AWG*4C957.8
246418AWG*6C1309.1
246418AWG*10C19511.3
246418AWG*20C35014.2
246418AWG*30C52017.6
246416AWG*2C857.6
246416AWG*3C1058.0
246416AWG*4C1258.6
246416AWG*6C17510.2
