E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
Specifications
Model Number :
UL3644
MOQ :
305M
Delivery Time :
7 days after receiving payment
Payment Terms :
T/T,, L/C
Insulation :
Silicon Rubber
Price :
USD1.265-USD3.639/M
Voltage :
1000V
Temperature :
-60ºC to +200ºC
Supply Ability :
100000km/week
Color :
yellow, green, yellow/green, black, white.....
Brand Name :
ECHU
Certification :
UL
Place of Origin :
Shanghai China
Packaging Details :
100M/Roll or according to customer requirement
Description

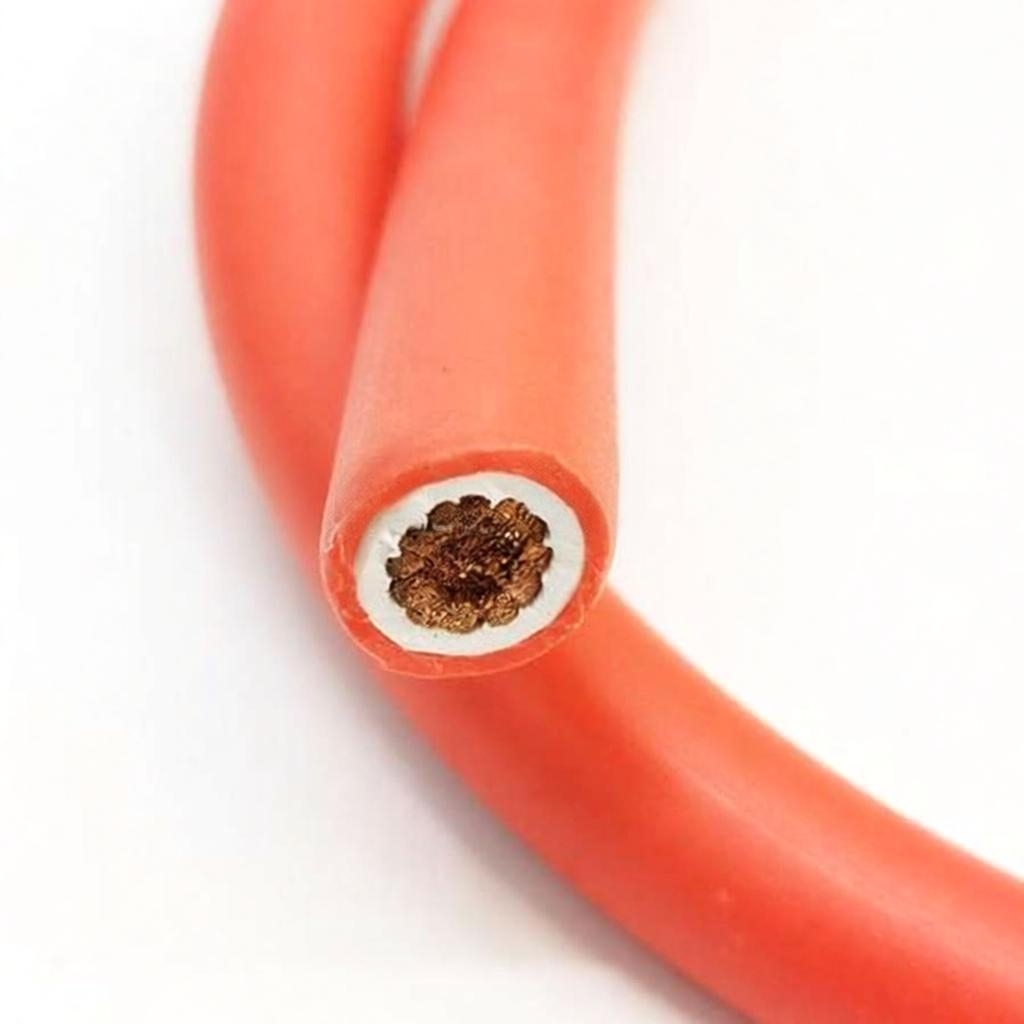

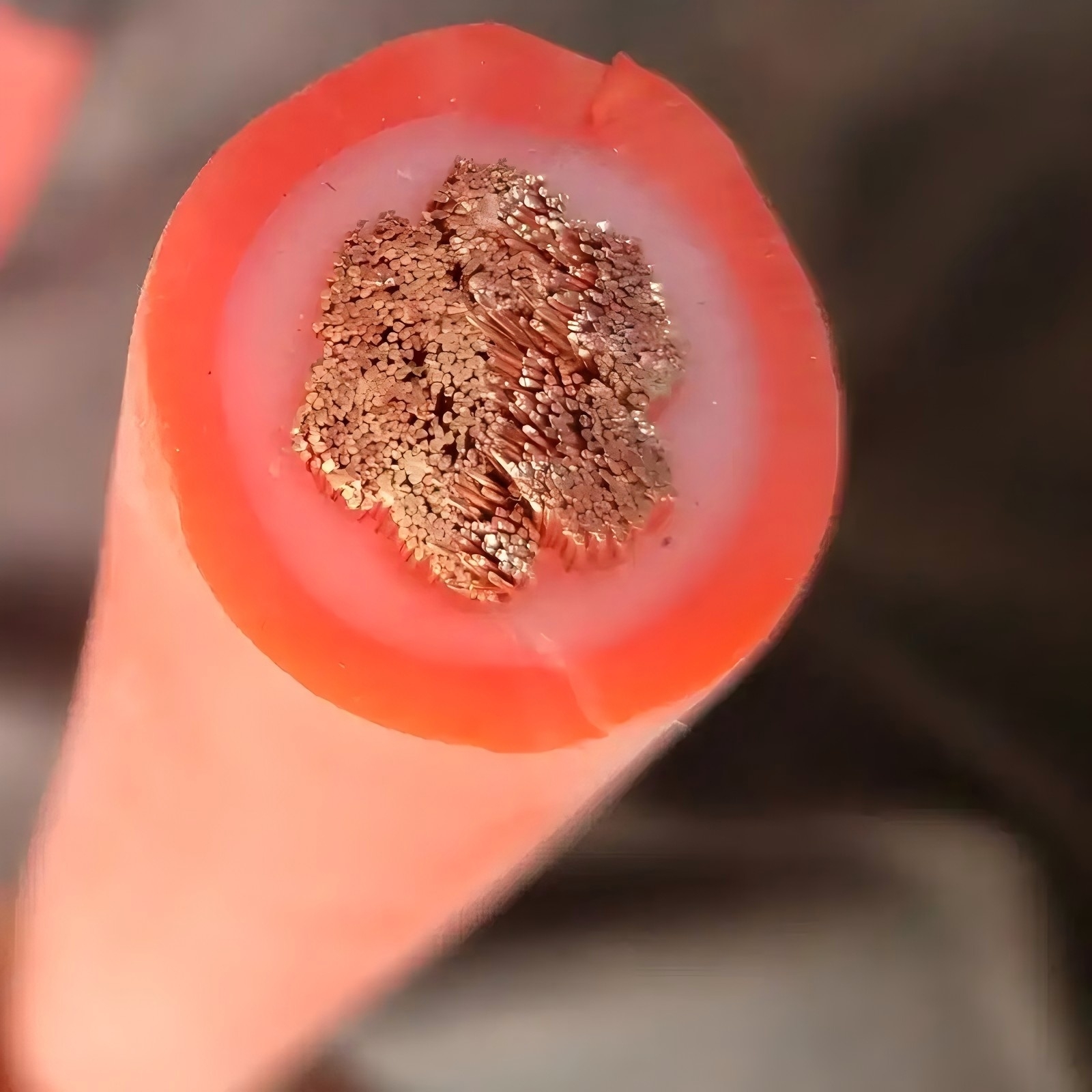

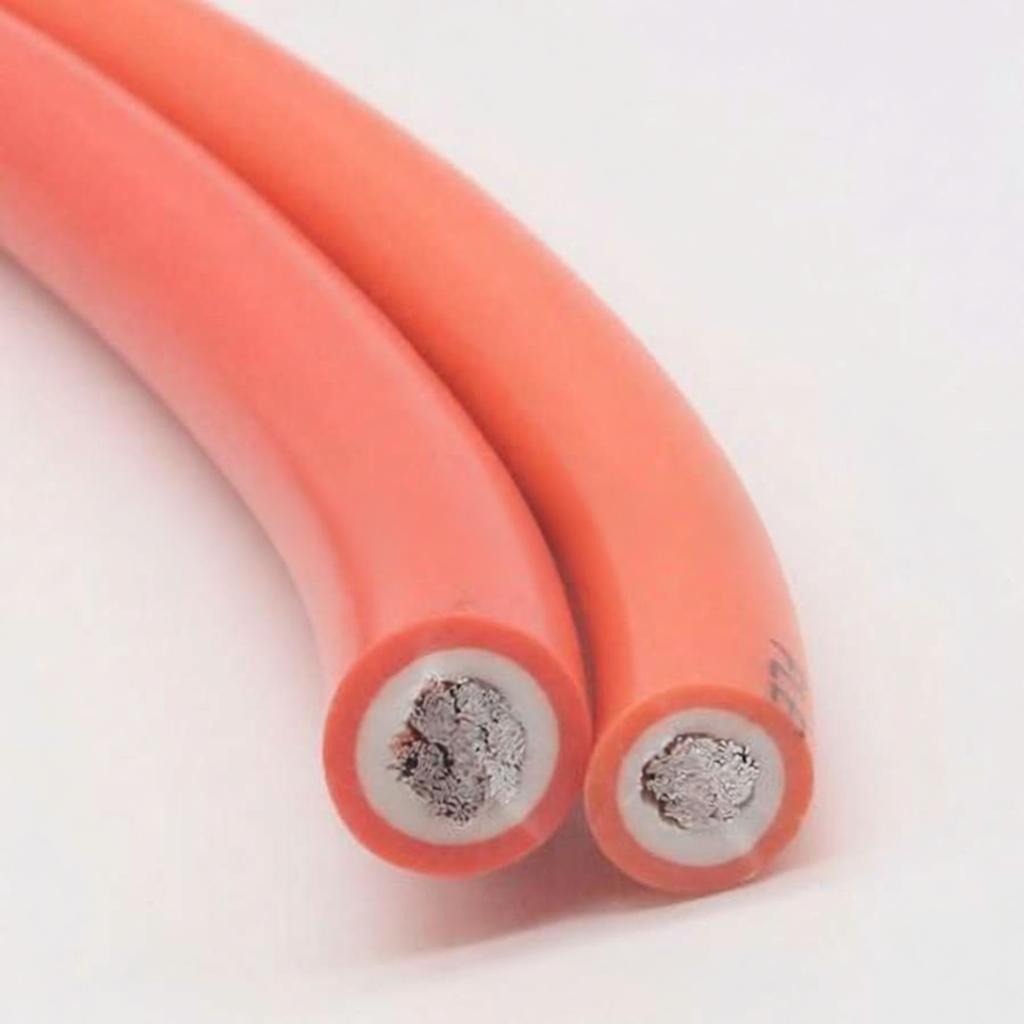

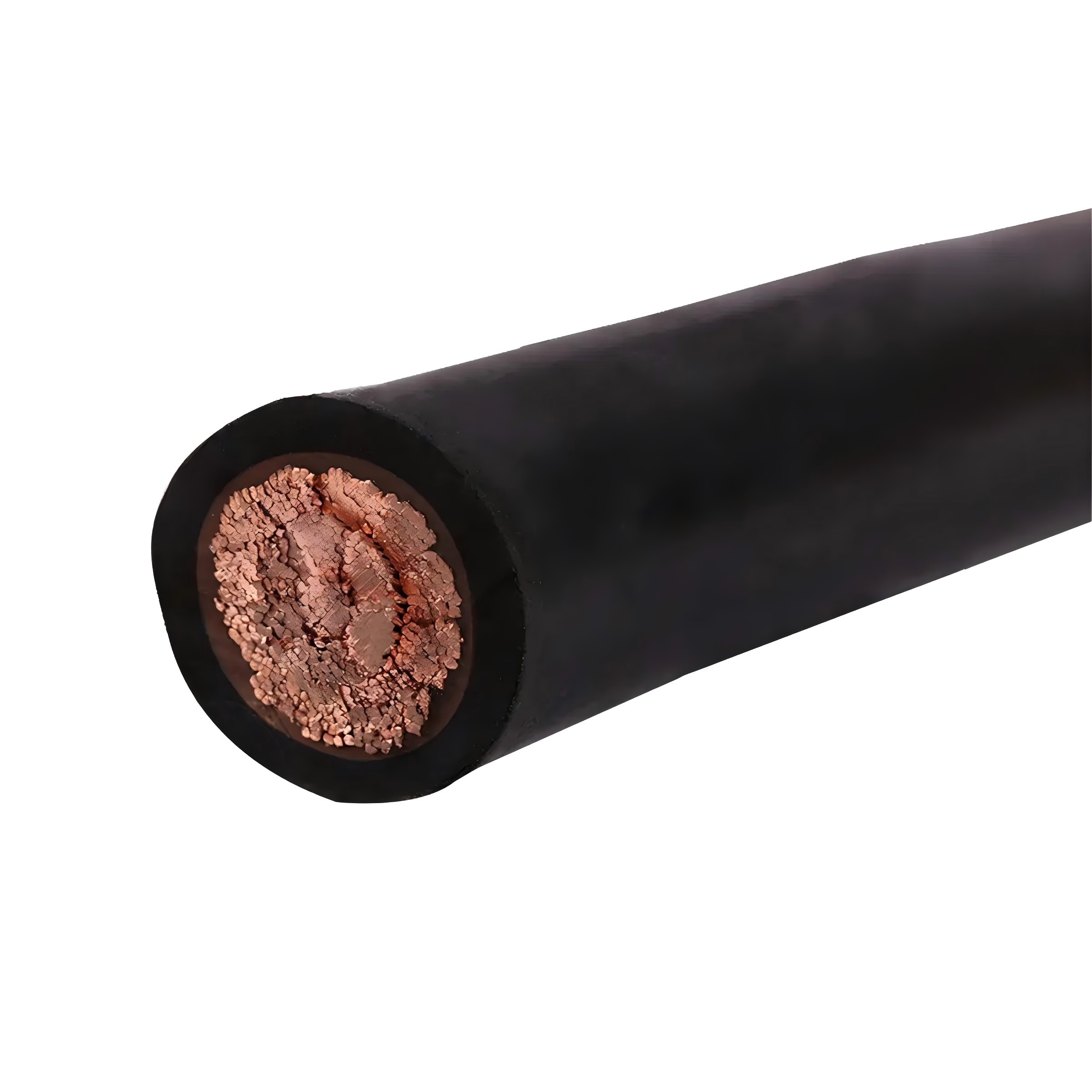

UL3644 Single-Conductor Silicone Rubber AWM Cable UL3644 is high-temperature silicone wire complying with UL758 Appliance Wiring Material standard.

  • Construction Conductor: Solid or Class 5 flexible stranded bare / tinned copper (30AWG ~ 1000kcmil); Insulation: Extruded silicone rubber (SR).
  • Electrical & Thermal Ratings Rated Voltage: 1000V AC Rated Temperature: 150°C or 200°C (dry locations) Operating temperature range: -60°C ~ +200°C
  • Flame Performance Self-extinguishing, meets UL FT2 horizontal flame test.
  • Key Features Excellent flexibility, outstanding heat resistance, low-temperature resistance, ozone resistance, UV resistance and chemical resistance. Stable dielectric property; uniform insulation thickness for easy stripping. Halogen-free, RoHS compliant.
  • Typical Applications Internal wiring for household appliances, heating devices, ovens, motors, transformers, inverters, lighting equipment, new energy equipment and general industrial machinery under high-temperature conditions.

Item UL3644 Silicone rubber cables
Conductor Bare copper
Insulation Silicone Rubber
Rated Voltage 1000V
Temperature Range Maximum Working Temperature: -60ºC to +200ºC
Color Optional
Application This cable is mainly used for internal wiring in high temperature areas such as household appliances, lighting, heaters, motors, dryers, and ovens

E550028 ECHU UL758 standard 1000V UL3644 single conductor silicone rubber insulated cable with tinned copper
