Specifications
Supply Ability :
100000km/week
Color :
yellow, green, yellow/green, black, white.....
Model Number :
UL3956
MOQ :
305M
Delivery Time :
7 days after receiving payment
Payment Terms :
T/T,
Insulation :
Silicon Rubber
Price :
USD1.265-USD1.63/M
Voltage :
600V
Temperature :
-60ºC to +150ºC
Brand Name :
ECHU
Certification :
UL
Place of Origin :
Shanghai China
Packaging Details :
100M/Roll or according to customer requirement
Description

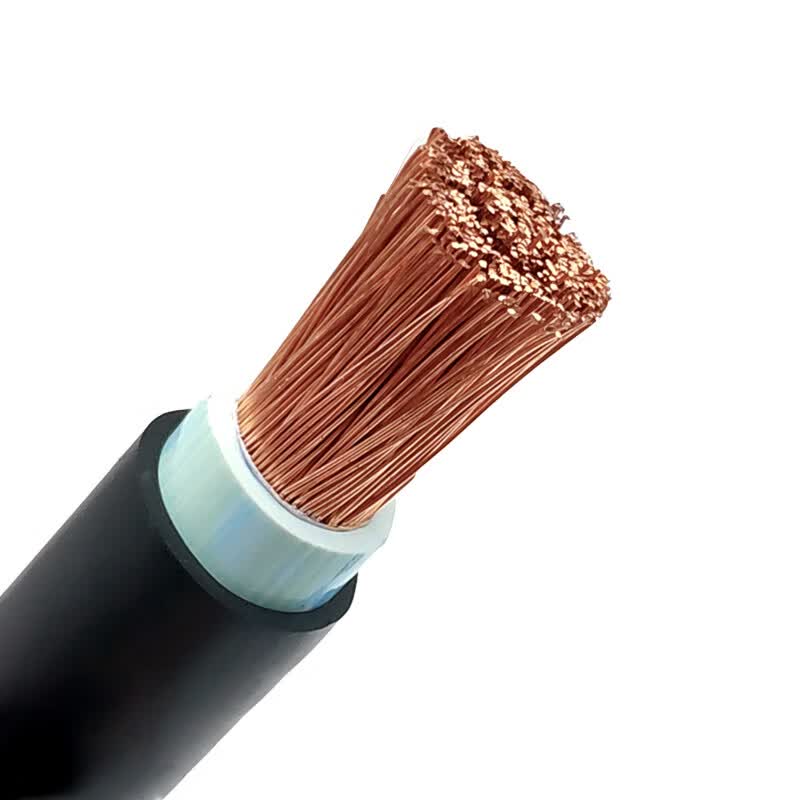

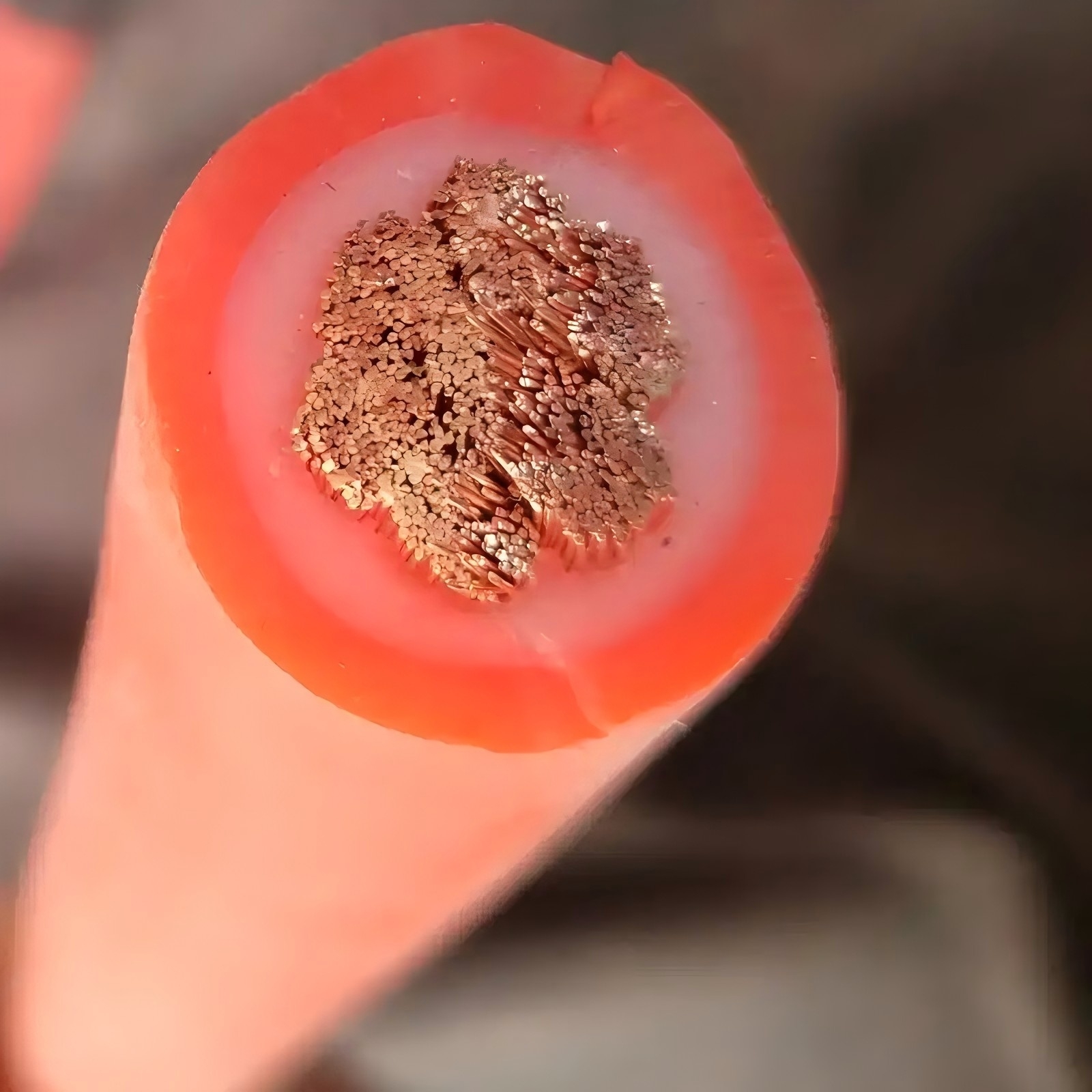

UL3956 Single-Conductor Silicone Rubber Cable

UL3956 is a high-temperature silicone rubber wire under UL758 Appliance Wiring Material standard.

  • Construction Conductor: Class 5 flexible stranded bare copper; Insulation & Outer Sheath: Silicone Rubber (SR).
  • Electrical & Thermal Ratings Rated Voltage: 600V Operating Temperature: -60°C ~ +150°C (dry locations)
  • Flame Performance Self-extinguishing, complies with UL FT2 horizontal flame test.
  • Key Features Excellent flexibility, outstanding heat resistance, cold resistance, ozone resistance, UV resistance and chemical resistance; halogen-free, RoHS compliant.
  • Typical Applications Internal wiring for household appliances, heaters, ovens, dryers, motors, lighting equipment, industrial machinery, photovoltaic equipment and other high-temperature devices.
Item UL3956 Silicone rubber cables
Conductor Bare copper
Insulation Silicone Rubber
Outer Sheath Silicone Rubber
Shield Optional
Outer Sheath Rubber
Rated Voltage 600V
Temperature Range Maximum Working Temperature: -60ºC to +150ºC
Color Optional
Application This cable is widely used in household appliances, lighting, heaters
Internal wiring for robots and industrial equipment
