ECHU ETHERNET FLEX CAT7 Cable, ENTHERNET CAT7 cable suitable for harsh industrial environments
ECHU ETHERNET FLEX CAT7 Cable, ENTHERNET CAT7 cable suitable for harsh industrial environments
ECHU ETHERNET FLEX CAT7 Cable, ENTHERNET CAT7 cable suitable for harsh industrial environments
ECHU ETHERNET FLEX CAT7 Cable, ENTHERNET CAT7 cable suitable for harsh industrial environments
ECHU ETHERNET FLEX CAT7 Cable, ENTHERNET CAT7 cable suitable for harsh industrial environments
ECHU ETHERNET FLEX CAT7 Cable, ENTHERNET CAT7 cable suitable for harsh industrial environments
Specifications
Brand Name :
ECHU
Model Number :
ETHERNET FLEX CAT7
Certification :
CE
Place of Origin :
CHINA
MOQ :
300m
Price :
USD01-USD1.638/M
Payment Terms :
T/T, Western Union
Supply Ability :
10000KM/day
Packaging Details :
in roll, splint boxes, cartons
Color :
Yellow
Description

The Ethernet CAT5e Cable is an industrial-grade network cable utilizing high-purity oxygen-free copper conductors. ETHERNET CABLE FLEX CAT 7

Application:

As a high-speed data cable, it is applied to the synthesize cabling system of cloud computing center, large data room, office, residential area, factory and other buildings. PUR sheath are paerticularly suitable for harsh industrial environments

Properties:

Cable flame retardancy meets IEC60332-1-2

AL/Mylar individual screen and tinned copper wire overall braid

Excellent anti external electromagnetic interference ability

PUR sheath is particularly oil resistant and abrasion resistant

The signal transmission frequency can reach 600MHZ

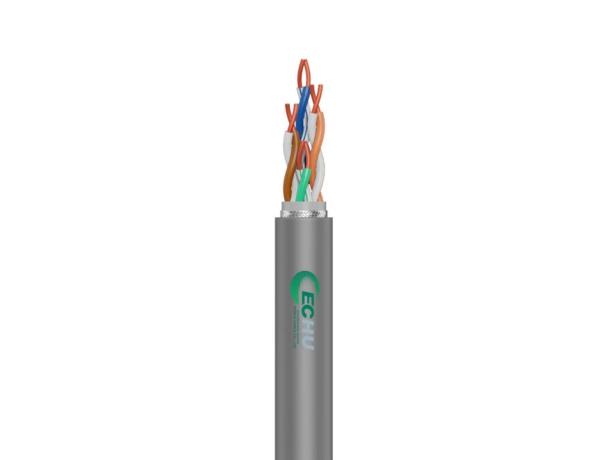

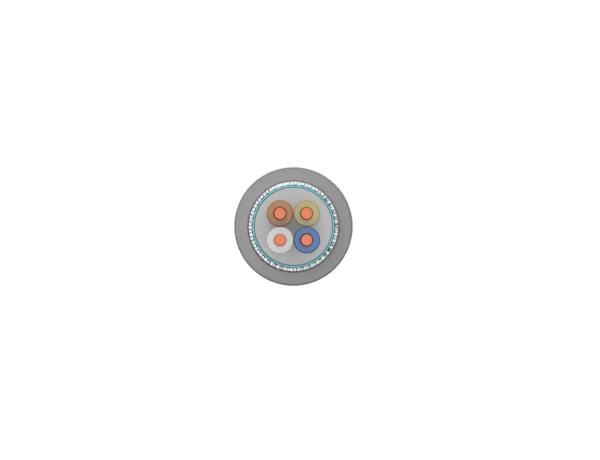

Structure:

Conductor: standed bare copper conductor

Insulation: foamed PE

Shielding: AL/Mylar individual screen and tinned copper wire overall braid

Sheath: PVC/PUR

Color: Yellow (other colors can be formulated according to customer requirements)

Temperature range:

Fixed installation: PVC: -15℃ to 80℃; PUR: -40℃ to +80℃

Moved installation: -5℃-+70℃

Test Voltage: 1000V/min (DC)

Characteristic impedance: 100+/-15Ω @100MHZ

Insulation resistance: >/= 5g Ω .Km

Mininum beding radius

Fixed installation: 10D (d=cable diameter)

Moved installation: 15D (d=cable diameter)
