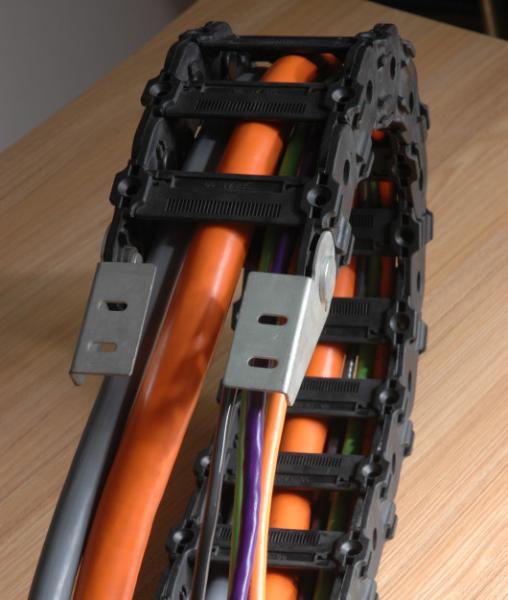

Special Traveling Cable for Drag Chains EKM61373 for machine or equipments bending frequently in grey/black/orange Color
Special Traveling Cable for Drag Chains EKM61373 for machine or equipments bending frequently in grey/black/orange Color
Special Traveling Cable for Drag Chains EKM61373 for machine or equipments bending frequently in grey/black/orange Color
Special Traveling Cable for Drag Chains EKM61373 for machine or equipments bending frequently in grey/black/orange Color
Special Traveling Cable for Drag Chains EKM61373 for machine or equipments bending frequently in grey/black/orange Color
Special Traveling Cable for Drag Chains EKM61373 for machine or equipments bending frequently in grey/black/orange Color
Special Traveling Cable for Drag Chains EKM61373 for machine or equipments bending frequently in grey/black/orange Color
Special Traveling Cable for Drag Chains EKM61373 for machine or equipments bending frequently in grey/black/orange Color
Special Traveling Cable for Drag Chains EKM61373 for machine or equipments bending frequently in grey/black/orange Color
Special Traveling Cable for Drag Chains EKM61373 for machine or equipments bending frequently in grey/black/orange Color
Specifications
Brand Name :
ECHU
Model Number :
EKM61100, EKM61373
Certification :
CE
Place of Origin :
China
MOQ :
200Meters
Price :
$0.152-$3.589/M
Payment Terms :
T/T, Western Union
Supply Ability :
10000km/week
Delivery Time :
within 10days
Packaging Details :
plywood reel
Bending for life :
Above 7,000,000 times
Properties :
oil resistance, cool resistance,abrasion resistance, flame resistance, anti-ultravoiolet
Insulation :
PP
Jacket :
FOG NBR
Installation :
movable,
Flame retardant :
meet IEC60332-1-2+EN60332-1-2
Description

Flexible Drag Chain Cable

Applications:
It is suitable for day or wet rooms and installation without strong stress or free continuous reciprocating movement. It is special suitable for the working places of woodworking machine, machine tool equipment, logistics conveyor system, crane and other related equipments.

Properties:
Waterproofing, oil resistance, cool resistance, abrasion resistance, flame resistance, anti-ultraviolet
Bending life: About 7,000, 000 times

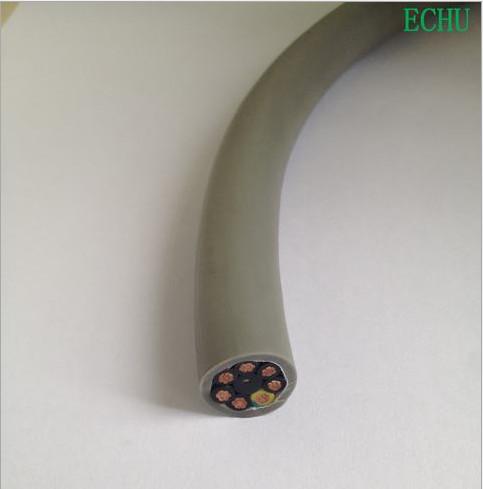

Structure:
Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295 CLASS6
Insulation: PP
Color: ≤ 0.5mm brown, black, blue, purple, pink, orange
≥ 0.5mm cores black with consecutive white numbering
3 cores or more with green/ yellow earth wire
Sheath: FOG NBR
Black (RAL9005) or grey (RAL7001),Orange (RAL2003)
Related voltage: SQ<0.5mm2: 300/300V
SQ>0.5mm2: 300/500V
Test voltage: 2000V

Temperature range:
Fixed Installation: -30 ℃---+70℃

Flexing Installation: -20 ℃---+70℃

The minimum bending radius: Fixed: 5xD
Moved: When travel < 10m, bending radius is 8xD
When travel > 10m, bending radius is 10xD

Type Size External Diameter(O.D.) Weight(Kg/Km)
2,EKM61373 2*0.14 4.1 29
2,EKM61373 3*0.14 4.3 35
2,EKM61373 4*0.14 4.6 39
2,EKM61373 5*0.14 4.9 44
2,EKM61373 6*0.14 5.2 50
2,EKM61373 2*0.2 4.3 34
2,EKM61373 3*0.2 4.5 39
2,EKM61373 4*0.2 4.8 44
2,EKM61373 5*0.2 5.2 50
2,EKM61373 6*0.2 5.6 57
2,EKM61373 2*0.25 4.4 36
2,EKM61373 3*0.25 4.6 41
2,EKM61373 4*0.25 5 47
2,EKM61373 5*0.25 5.3 54
2,EKM61373 6*0.25 5.7 64
2,EKM61373 2*0.34 49 43
2,EKM61373 3*0.34 5.1 49
2,EKM61373 4*0.34 5.5 57
2,EKM61373 5*0.34 6 69
2,EKM61373 6*0.34 6.4 78
2,EKM61373 2*0.5 5.4 51
2,EKM61373 3*0.5 5.6 62
2,EKM61373 4*0.5 6.1 73
2,EKM61373 5*0.5 6.6 85
2,EKM61373 6*0.5 7.1 101
2,EKM61373 2*1.0 6.3 74
2,EKM61373 3*1.0 6.6 89
2,EKM61373 4*1.0 7.2 110
2,EKM61373 5*1.0 7.8 130
2,EKM61373 6*1.0 8.5 154
2,EKM61373 2*1.5 7.5 102
2,EKM61373 3*1.5 7.9 123
2,EKM61373 4*1.5 8.6 153
2,EKM61373 5*1.5 9.4 180
2,EKM61373 6*1.5 10.2 215
