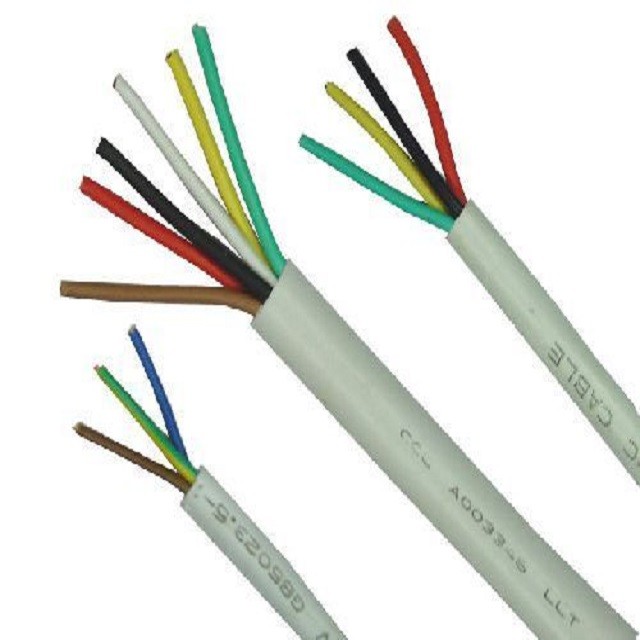

E514264 ECHU SJT 18 16 14 AWG 3 Core PVC Copper Flexible Power Cord UL Certificate Electrical Cable
E514264 ECHU SJT 18 16 14 AWG 3 Core PVC Copper Flexible Power Cord UL Certificate Electrical Cable
E514264 ECHU SJT 18 16 14 AWG 3 Core PVC Copper Flexible Power Cord UL Certificate Electrical Cable
E514264 ECHU SJT 18 16 14 AWG 3 Core PVC Copper Flexible Power Cord UL Certificate Electrical Cable
E514264 ECHU SJT 18 16 14 AWG 3 Core PVC Copper Flexible Power Cord UL Certificate Electrical Cable
E514264 ECHU SJT 18 16 14 AWG 3 Core PVC Copper Flexible Power Cord UL Certificate Electrical Cable
E514264 ECHU SJT 18 16 14 AWG 3 Core PVC Copper Flexible Power Cord UL Certificate Electrical Cable
E514264 ECHU SJT 18 16 14 AWG 3 Core PVC Copper Flexible Power Cord UL Certificate Electrical Cable
E514264 ECHU SJT 18 16 14 AWG 3 Core PVC Copper Flexible Power Cord UL Certificate Electrical Cable
E514264 ECHU SJT 18 16 14 AWG 3 Core PVC Copper Flexible Power Cord UL Certificate Electrical Cable
Specifications
Model Number :
SJT
Payment Terms :
T/T.,
Voltage :
300V
UL No. :
E514264
Place of Origin :
China
Packaging Details :
Splint reel or box
MOQ :
300m
Delivery Time :
7 to 10days
Price :
USD0.113-USD0.679/m
Standard :
UL62
Certification :
UL
Supply Ability :
10000km/week
Color :
black/grey/white...
Brand Name :
ECHU
Description

E514264 ECHU SJT 18 16 14 AWG 3 Core PVC Copper Flexible Power Cord UL Certificate Electrical Cable

Product Description:
Rated temperature:60ºC or 105ºC

Rated voltage:300V

Reference standard:UL62,UL1581,CSA C22.2No.49

Stranded bare copper conductor 18~10AWG

PVC insulation ,comply with ROHS environmental standard

PVC jacket ,comply with ROHS environmental standard

Passes UL VW-1,CSA FT2 flame test

Uniform insulation thickness to ensure easy stripping and cutting

For general purpose use for power supply cord

导体
CONDUCTOR		 绝缘
INSULATION		 护套
JACKET		 最大导体电阻
MAX.COND.RESISTANC
ESΩ/km,(20℃,DC)
规格AWG 构造
CONSTR-
UCTION
(No./mm)		 外径
DIA
(mm)		 芯数
(No./mm)		 绝缘厚度
INSULATION
THICKNESS
(mm)		 外径
0.D.
(mm)		 护套厚度
JACKET
THICKNES
S(mm)		 外径
0.D.
(mm)
18 41/0.16 1.18 2 0.76 2.8 0.76 7.40 22.4
3 0.76 2.8 0.76 7.80
4 0.76 2.8 0.76 8.50
16 26/0.254 1.49 2 0.76 3.1 0.76 8.20 14.1
3 0.76 3.1 0.76 8.50
4 0.76 3.1 0.76 9.30
14 41/0.254 1.88 2 0.76 3.5 0.76 8.90 8.88
3 0.76 3.5 0.76 9.40
4 0.76 3.5 0.76 10.30
12 65/0.254 2.36 2 0.76 4.0 1.14 10.50 5.58
3 0.76 4.0 1.14 11.00
4 0.76 4.0 1.14 12.10
