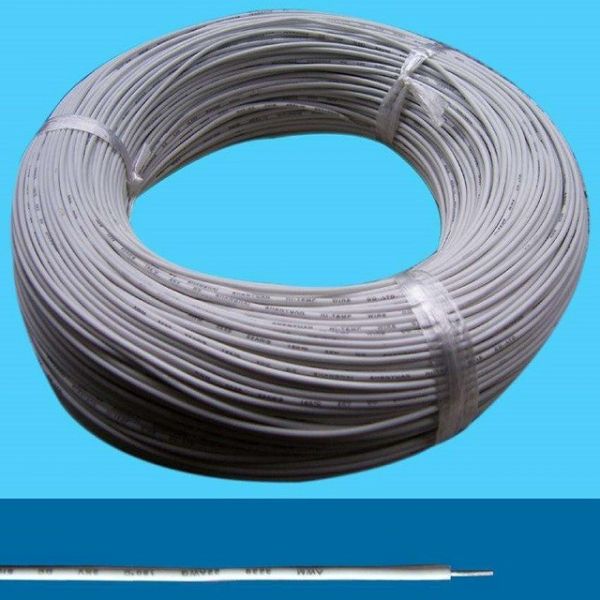

22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated
Specifications
Range of Application :
Internal Wiring
Voltage :
300V
Brand :
ECHU
Conductor :
bare copper or tinned copper
Payment Terms :
T/T, Western Union, L/C
Company type :
Manufacturer
Supply Ability :
100000km/week
Colors :
12 different kinds of Color
Product Name :
UL1061 Electrical wire
Brand Name :
ECHU
Model Number :
UL1061
Certification :
UL. E312831
Place of Origin :
China
MOQ :
305m
Price :
0.013-0.0379USD/M
Packaging Details :
305meter per roll
Description

UL1061 Sr-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light

Product Description:
★ Rated temperature: 80ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor,30-16 AWG
★ Colour-coded lead free SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment,
protection is required where mechanical damage is possible

This type of cable have the advantage of the cable have smaller outside diameter, can meet higher using requirement.

22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

Conductor Insulation Maximum Resistance at 20ºC
Ω/km
AWG No./mm Dia.
mm		 Nom. Thick.
mm		 Nom.Dia.
mm
30 7/0.1 0.30 0.26 0.82 354
28 7/0.127 0.38 0.26 0.90 223
26 7/0.16 0.48 0.26 1.00 139
24 11/0.16 0.61 0.27 1.15 88.9
22 17/0.16 0.76 0.26 1.28 57.5
20 26/0.16 0.94 0.26 1.46 34.6
18 41/0.16 1.18 0.26 1.70 23.3
16 26/0.254 1.49 0.26 2.02 15.1
