Easy Operation Portable Syringe Pump For Critical Care 305mmX 130mmX 108mm Size
Easy Operation Portable Syringe Pump For Critical Care 305mmX 130mmX 108mm Size
Specifications
Brand Name :
SINOHERO
Model Number :
SH-509i
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
10-20 working days
operating environment :
general wards, critical and intensive care, neonatal, operating rooms and accident and emergency rooms.
Dimensions :
305mmX 130mmX 108mm
Weight :
2.0kg
Description

Name:Portable Syringe pump SH-509i medical device for emergency solution

NEW Features:

- LED&LCD dual display
- Compact and Ergonomic design with handle for fast transport
- Users friendly Interface for easy operation
- Precise control of the infusion rate and infusion volume
- super Compatibility with all standard syringe.
- Various alarm function with volume adjust lead peace of mind
- Large history data review and last configuration memory to easy review
- Anti-bolus System to improve infusion safety
- Drugs library &Wireless monitoring upgradable

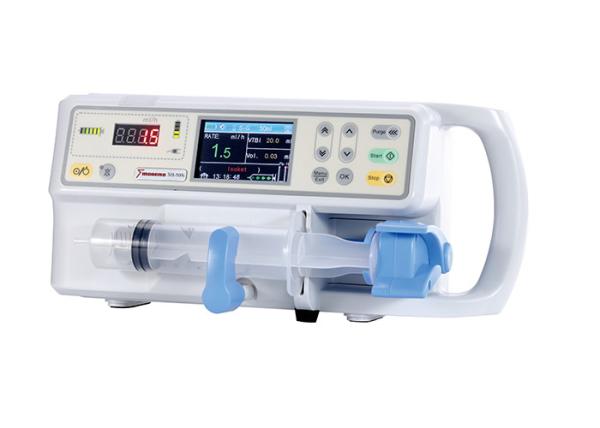

Picture:

Easy Operation Portable Syringe Pump For Critical Care 305mmX 130mmX 108mm Size

Specification:

Syringes 5ml,10ml,20ml,30ml,50(60)ml any standard
Flow Rate Range 5ml:0.1ml/h～150ml/h
10ml:0.1ml/h～300ml/h 20ml:0.1ml/h～600ml/h
30ml:0.1ml/h～900ml/h 50ml:0.1ml/h～1200ml/h
Flow Rate Step 0.1ml/h
Flow Rate Accuracy the accuracy of ≥1ml/h injection flow rate can be controlled within ±2%, the accuracy of ＜1 ml/h injection flow rate can be controlled within ±5%
Volume Limit 0.1～9999.9 ml
Purge Rate 　5ml:100ml/h; 10ml:200ml/h; 20ml:400ml/h;
30ml:600ml/h； 50ml:900ml/h
BOLUS Rate 5ml:10ml/h～150ml/h
10ml:10ml/h～300ml/h; 20ml:10ml/h～600ml/h
30ml:10ml/h～900ml/h; 50ml:10ml/h～1200ml/h
Syringe Modes Flow Rate, Time/Volume, Drug/Weight, BOLUS
Time/Volume Mode Volume: 9999.9ml, time: 24hr 0minute
Drug/weight Mode

Body weight:0.1～300 kg, Drug Amount:0.1～999.9 mg

Solution Volume:0.1～999.9 ml ,Dose:0.01～99.99(subject to the unit)
KVO 1ml/h
Occlusion Alarm 3-level pressure sensitivities setting
Audio & Visual Alarm Finished, Check Syringe, Drive Disengaged, Pause Overtime, Near Empty ,Empty, Battery Low, Battery run out, Motor Malfunction, System failure ,Occlusion , AC lost etc.
Drug Library Upgradable
Wireless Monitoring Upgradable
Display 2.8" LCD
Power Source ≤25W, 100V～240V,50Hz/60Hz
Battery DC12V,2000mAh(last 6 hours at 25ml/hr after fully recharged)
Operation Condition

Temperature: +5oC ～ +40oC,Relative Humidity ≤80%,

Atmospheric Pressure 70KPa ～ 106Kpa
Storage and Transportation

Temperature: -20oC ～ +50oC,Relative Humidity ≤50%,

Atmospheric Pressure 50KPa ～ 106Kpa
