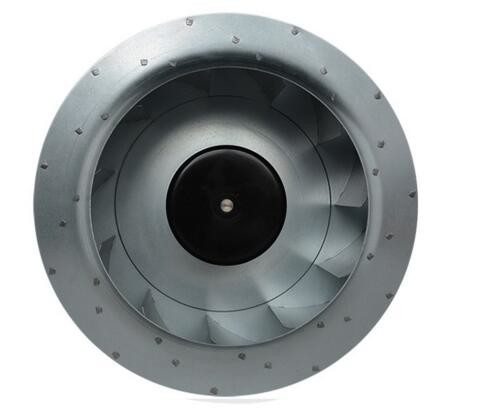

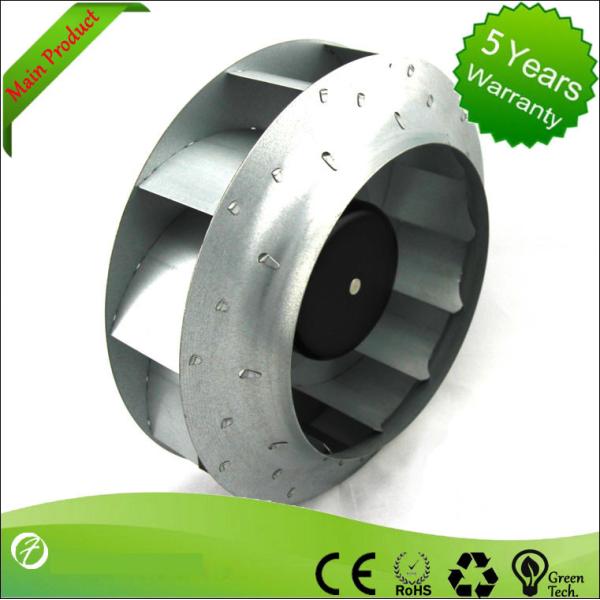

Ec Centrifugal Fan 280mm 133W For Server Room Data Center Cooling
Ec Centrifugal Fan 280mm 133W For Server Room Data Center Cooling
Ec Centrifugal Fan 280mm 133W For Server Room Data Center Cooling
Ec Centrifugal Fan 280mm 133W For Server Room Data Center Cooling
Specifications
Power input :
133W
Current drwa :
1.03A
Frequency :
50/60HZ
Air Flow :
1580m³/h
Rated Speed :
2325RPM
Nominal voltage :
220V
Brand Name :
OFAN
Model Number :
LD280C-230D3-00
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
negotiation
Supply Ability :
10000PCS 15days
Packaging Details :
Simple packing
Description

Ec Centrifugal Fan 280mm 133W For Server Room Data Center Cooling

EC fans can also contribute to increasing the overall efficiency of an application. In a cooling system for example, keeping the refrigerant pressure constant rather than having it rise and fall as fans switch on and off has been found to reduce the load on the compressor resulting in even greater energy saving.

Type

Nominal voltage

(VAC)

Frequency

(HZ)

Speed

(RPM)

Power imput

(w)

Current draw

(A)

Sound pressure

(dB)

Perm.amb.temp
LD280C-230D3-00 220 50/60 2325 133 1.03 68 -25~+60

Features

· EC motor features reverse polarity protection, locked rotor protection and soft start.

· No additional protection such as contactors are required.

· Can be pre-configured to suit specific sensors and applications, and are supplied standard with 0-10V control input.

· A full range of sensors are available including differential pressure, humidity, temperature, air velocity and pollutant.

· Can be run as an independent ventilation source or integrated into most building management systems.

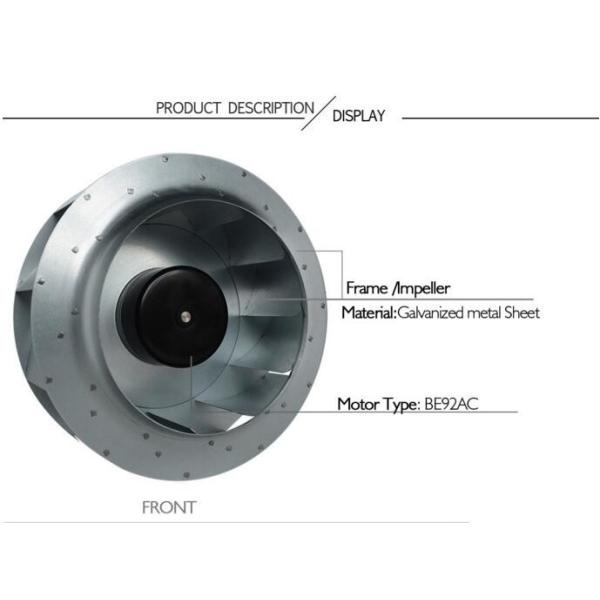

· Robust, galvanised steel housing and cowl

Ec fan exchange air by moving the air in a variety of aquipment and systems, its superiority is not only reflected in the compact structure, low noise and high efficiency but moreover it can keep continuous speed adjustment based on real-time temperature or pressure change, furthermost saving the power

Can we buy a sample for testing?

Sure, you are welcomed to buy a sample before mass order.

Are you a factory or trading company?

We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM
