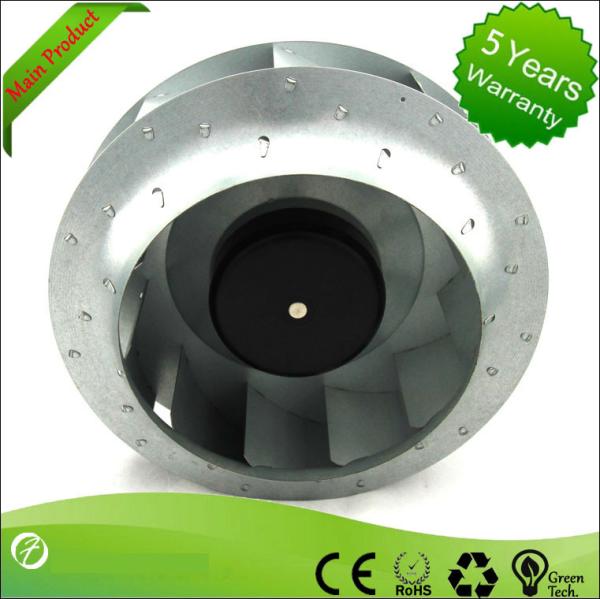

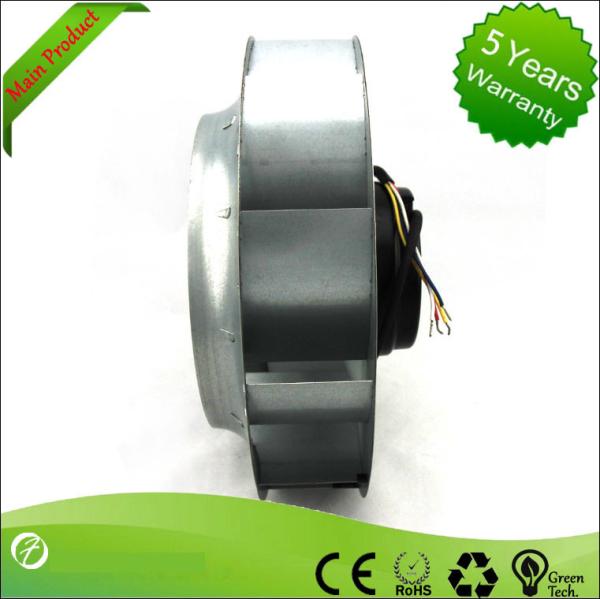

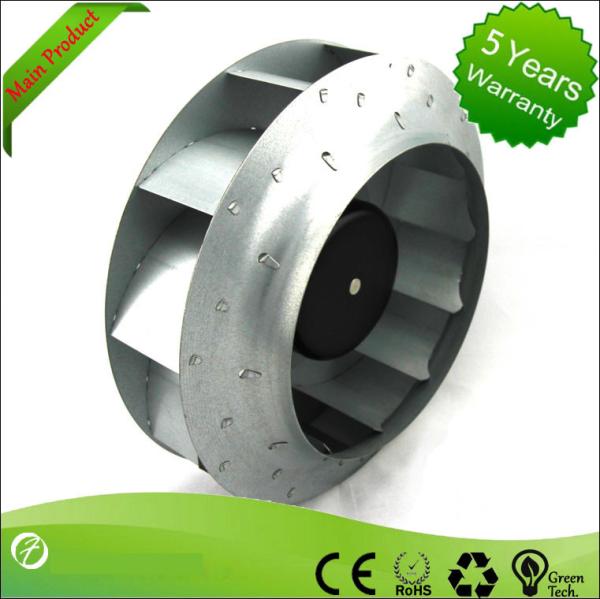

Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W
Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W
Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W
Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W
Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W
Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W
Specifications
Brand Name :
OFAN
Model Number :
LD250C-230D3-00
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
negotiation
Supply Ability :
10000PCS 15days
Packaging Details :
Simple packing
Power input :
64W
Air Flow :
950m³/h
Rated Speed :
1955RPM
Nominal voltage :
220V
Current drwa :
0.48A
Frequency :
50/60HZ
Description

Gakvabused Sheet Steel Ec Centrifugal Fans With Air Purification

Features

· EC motor features reverse polarity protection, locked rotor protection and soft start.

· No additional protection such as contactors are required.

· Can be pre-configured to suit specific sensors and applications, and are supplied standard with 0-10V control input.

· A full range of sensors are available including differential pressure, humidity, temperature, air velocity and pollutant.

Type

Nominal voltage

(VAC)

Frequency

(HZ)

 Speed

Power imput

(w)

Current draw

(A)

Sound pressure

(dB)

Perm.amb.temp
LD250C-230D3-00 220 50/60 1955 64 0.48 65 -25~+60

Air-conditioning system in busses and yachts

FFU(Fan Filter Unit)and clean room system

Electronic oven, burner, constant temperature cabinet, medical instrument, sterilizer and desiccator

1. Sensorless permanent magnet motor drive

2. Wide input voltage range, single phase 110-270V, three phase 250v-480v, 50/60hz

3. Power factor correction(PFC): Passive and active(IEC61000-3-2)

4. Soft start, adjustable acceleration, CVT

5. Design operating temperature range: -30~60 degrees of minimum selection(The device in accordance with -40~85 degrees)

6. Protection: over voltage, over temperature, over current, phase loss detection, communication failures.

7. The basic interface: 0-10V/PWM, RS485/Modbus, 4-20Ma

FAQ:

1. Can we buy a sample for testing?

Sure, you are welcomed to buy a sample before mass order.

2. if the fans doesn't work well, what shall I do ?

If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.
If after one year, we will supply you the right parts to replace at low price
