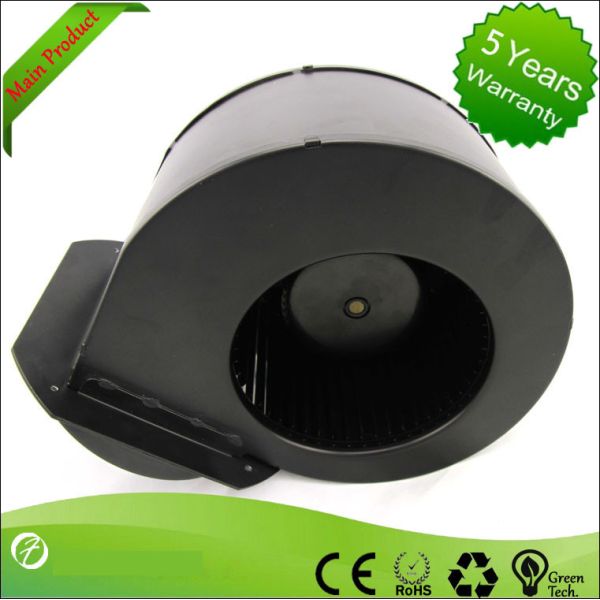

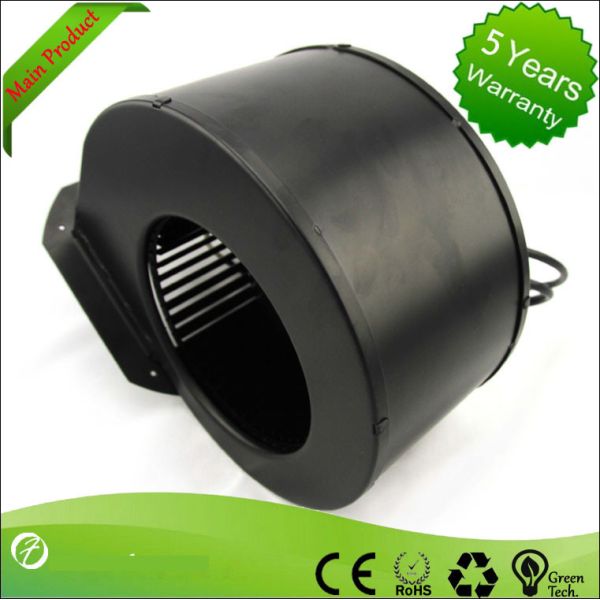

Single Inlet Dc Centrifugal Fan Brushless Ce Industrial Exhaust Blower
Single Inlet Dc Centrifugal Fan Brushless Ce Industrial Exhaust Blower
Single Inlet Dc Centrifugal Fan Brushless Ce Industrial Exhaust Blower
Single Inlet Dc Centrifugal Fan Brushless Ce Industrial Exhaust Blower
Specifications
Brand Name :
OFAN
Model Number :
LE120C-230D3-00
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
negotiation
Supply Ability :
10000pcs
Packaging Details :
600*600*50
Current draw :
0.2A
Speed :
2000rpm
Nominal voltage :
220VAC
Air Flow :
160m³/h
Sound pressure level :
60db
Power input :
26W
Description

Single Inlet Dc Centrifugal Fan Brushless Ce Industrial Exhaust Blower

Key Specifications/Special Features:

Type LE120C-230D3-00
Nominal voltage 230VAC
Speed 2000RPM
Power input 26W
Current draw 0.2A
Air Flow 160m³/h
Sound pressure level 60dB

A. Motor speed is not affected by power frequency
B. Speed range is big
C. the motor is stepless speed
D. starting moment is big
E. motor high efficiency range is big
F. the volume is very compact.
G. motor efficiency is high(>80%)

H, Motor efficiency loss is le

EC fans with integrated commutation electronics offer a high efficiency across the entire speed range, optimum noise characteristics with minimum installation complexity, and overall unmatched cost-effectiveness



Features:

  • Material: spiral housing of fiberglass-reinforced plastic scroll housing base of aluminum sheet.
  • Fully integrated electronic commutation.
  • Protect against reverse polarity and locking.
  • Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet.
